Ražotājs: GIGABYTE

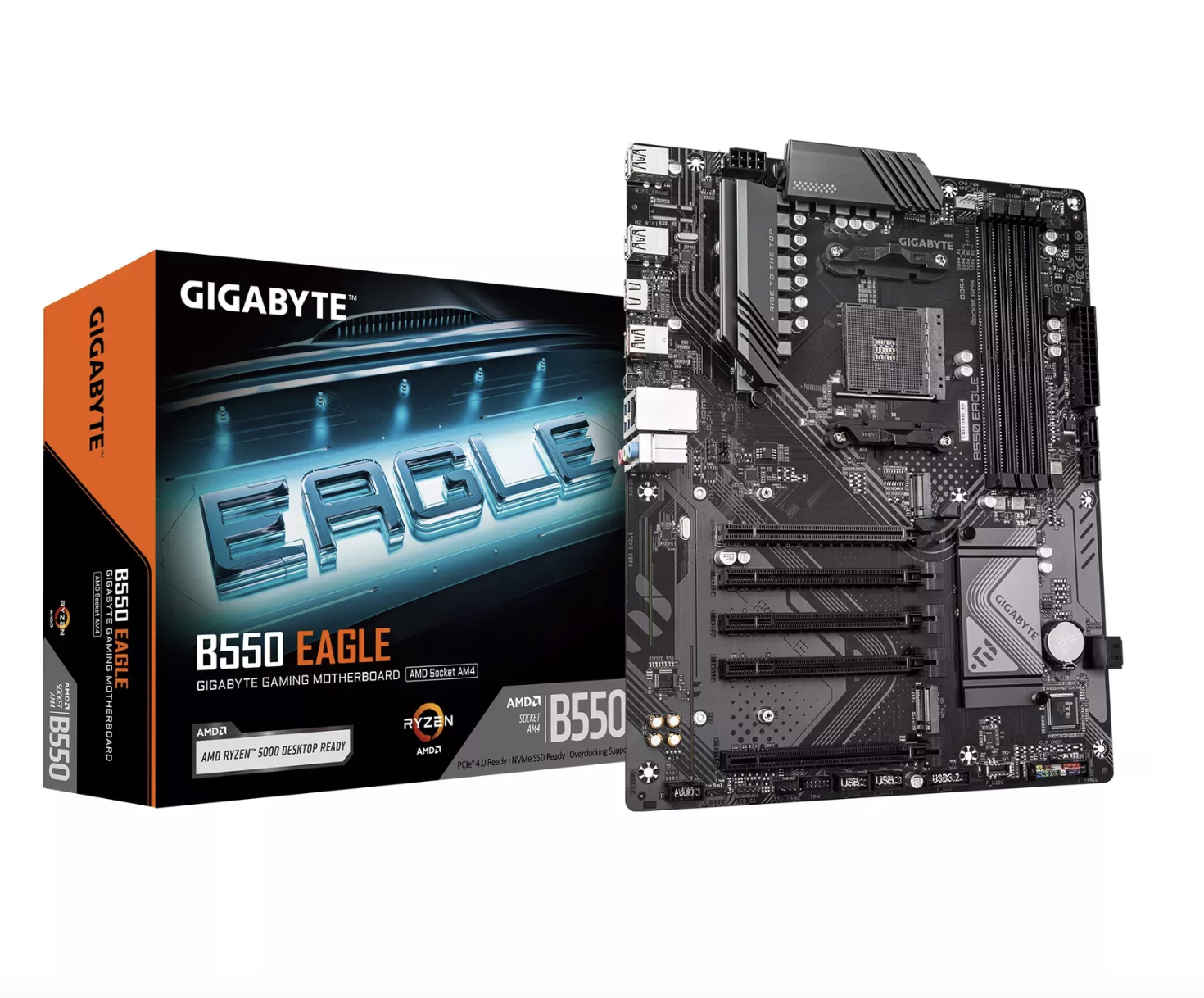

GIGABYTE B550 EAGLE AM4 MB

€108,57 ar pvn

Artikuls: ST08976749

Preces kods: B550 EAGLE

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
PL	8 - 15 dienās	5	€108,57 ar pvn
LV	2 - 5 dienās	3	€117,56 ar pvn
LV	2 - 5 dienās	17	€127,96 ar pvn
LV	2 - 5 dienās	17	€138,24 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3
Specifikācija 4

Plates izmērs (Form Factor)	ATX
Atmiņas tips	DDR4
CPU ligzda	Socket AM4
Video interfeiss	DisplayPort
Video interfeiss	HDMI
CPU ligzda	LGA 1700

Model	B550 Eagle
CPU socket	Socket AM4
Processor family	AMD Ryzen
Integrated CPU	No
Chipset manufacturer	AMD
Chipset type	AMD B550
Memory type	DDR4
Number of DDR4 slots	4
Memory bus frequency	2133 MHz
Memory bus frequency	2400 MHz
Memory bus frequency	3200 MHz
Memory bus frequency	2933 MHz
Memory bus frequency	2667 MHz
Max memory size	128 (GigaBajt)
Expansion slots	1 x PCIe 4.0 x 16
Max. number of SATA devices	4
RAID	Yes
Detailed data on disk/drive interfaces	Chipset 1.4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
Graphics	Zintegrowany procesor graficzny obsługa karty graficznej AMD Radeon 1 port HDMI, obsługujący maksymalną rozdzielczość 4096 x 2160 przy 60 Hz
Sound card	Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1
Network interface	1 x 10/100/1000 Mbit/s
Network interface	Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
USB ports at back panel	8
USB ports on motherboard	7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	2
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports	0
FireWire (IEEE 1394)	No
COM connector / port	No
LPT connector / port	No
External connectors	1 x USB 3.0 Type-C
External connectors	1 x USB 3.1
External connectors	1 x MIC
External connectors	1 x RJ-45
External connectors	4 x USB 2.0
External connectors	2 x USB 3.0
External connectors	1 x Line Out
External connectors	1 x HDMI
External connectors	1 x Line In
External connectors	1 x Q-Flash Plus button
Onboard connectors	1 x USB 3.0 header
Onboard connectors	1 x TPM header
Onboard connectors	1 x System panel header
Onboard connectors	1 x 4pin CPU fan
Onboard connectors	1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors	1 x 8pin 12V power
Onboard connectors	1 x 24pin ATX zasilanie
Onboard connectors	2 x M.2
Onboard connectors	4 x SATA III 6Gb/s
Onboard connectors	2 x USB 2.0/1.1 header
Onboard connectors	1 x Front panel audio header
Onboard connectors	1 x Clear CMOS jumper
Onboard connectors	1 x USB C
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor	ATX
Dimensions	30.5 x 24.4 cm
Supported operating systems	Windows 11
Supported operating systems	Windows 10
Designation	CE+WEEE
Width	270
Height	340
Depth	80
Weight	1235
Description
Description	Płyta główna B550 EAGLE Gniazdo AMD AM4: Obsługa procesorów AMD Ryzen serii 5000/4000/3000 Cyfrowe rozwiązanie VRM z 10 fazami + 3 + 1 Dwukanałowa pamięć DDR4: 4 moduły DIMM z obsługą modułów pamięci AMD EXPO EZ-Latch: Gniazda PCIe z konstrukcją Quick Release Przyjazny interfejs użytkownika: Multi-Theme, sterowanie wentylatorem AIO i automatyczne skanowanie Q-Flash w BIOS-ie i oprogramowaniu Ultraszybka pamięć masowa: 2 gniazda M.2, w tym PCIe 4.0 x1 Efektywne chłodzenie: VRM Thermal Armor Advanced Szybka sieć: GbE LAN Rozszerzona łączność: HDMI, DisplayPort Gniazdo PCIe UD: Gniazda PCIe 4.0 x16 o 10-krotnie większej wytrzymałości dla karty graficznej i lepszym rozpraszaniu ciepła

Description	GIGABYTE B550 EAGLE AM4 MB
VatType	VAT
Weight	1.221000000
Height	84.000000000
Width	340.000000000
Length	275.000000000
Description
Description	GIGABYTE B550 EAGLE AM4 MB 4xDDR4 4xSATA 2xM.2

Weight	0.8
Gross weight	1.2
Description
	Technical Specifications: CPU Socket: AMD AM4 Supported Processors: AMD Ryzen 3000 / 4000 / 5000 series Chipset: AMD B550 Power Delivery: 10+3 digital VRM design Memory: 4 × DDR4 DIMM (dual-channel) Max Memory Frequency (OC): up to 4733 MHz PCIe Slots: 1 × PCIe 4.0 x16 4 × PCIe 3.0 x1 M.2 Slots: 2 × M.2 (1 × PCIe 4.0 x4, 1 × PCIe 3.0 x4) SATA Ports: 4 × SATA 6 Gb/s USB Ports: USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1, USB 2.0 Networking: 1 × Gigabit LAN Audio: 8-channel HD audio with high-quality capacitors Additional Features: Q-Flash Plus (BIOS update without CPU), RGB/ARGB headers, VRM cooling solutions
	Tehniskie parametri: Procesora ligzda: AMD AM4 Atbalstītie procesori: AMD Ryzen 3000 / 4000 / 5000 sērija Čipsets: AMD B550 Barošanas ķēde: 10+3 digitālais VRM dizains Atmiņa: 4 × DDR4 DIMM (dual-channel) Maksimālais atmiņas ātrums (OC): līdz 4733 MHz PCIe sloti: 1 × PCIe 4.0 x16 4 × PCIe 3.0 x1 M.2 sloti: 2 × M.2 (1 × PCIe 4.0 x4, 1 × PCIe 3.0 x4) SATA porti: 4 × SATA 6 Gb/s USB porti: USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1, USB 2.0 Tīklošana: 1 × Gigabit LAN Audio: 8-kanālu HD audio ar augstas kvalitātes kondensatoriem Papildu funkcijas: Q-Flash Plus (BIOS atjaunināšana bez CPU), RGB/ARGB LED pieslēgvietas, VRM dzesēšanas risinājumi
	Технические характеристики: Сокет: AMD AM4 Поддерживаемые процессоры: AMD Ryzen 3000 / 4000 / 5000 серии Чипсет: AMD B550 Подсистема питания: цифровой VRM 10+3 фазы Память: 4 × DDR4 DIMM (двухканальная) Максимальная частота памяти (OC): до 4733 МГц Слоты PCIe: 1 × PCIe 4.0 x16 4 × PCIe 3.0 x1 Слоты M.2: 2 × M.2 (1 × PCIe 4.0 x4, 1 × PCIe 3.0 x4) Порты SATA: 4 × SATA 6 Гбит/с Порты USB: USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C, USB 3.2 Gen 1, USB 2.0 Сеть: 1 × Gigabit LAN Аудио: 8-канальный HD аудио с качественными конденсаторами Дополнительные функции: Q-Flash Plus (обновление BIOS без CPU), RGB/ARGB разъёмы, системы охлаждения VRM
