Ražotājs: GIGABYTE

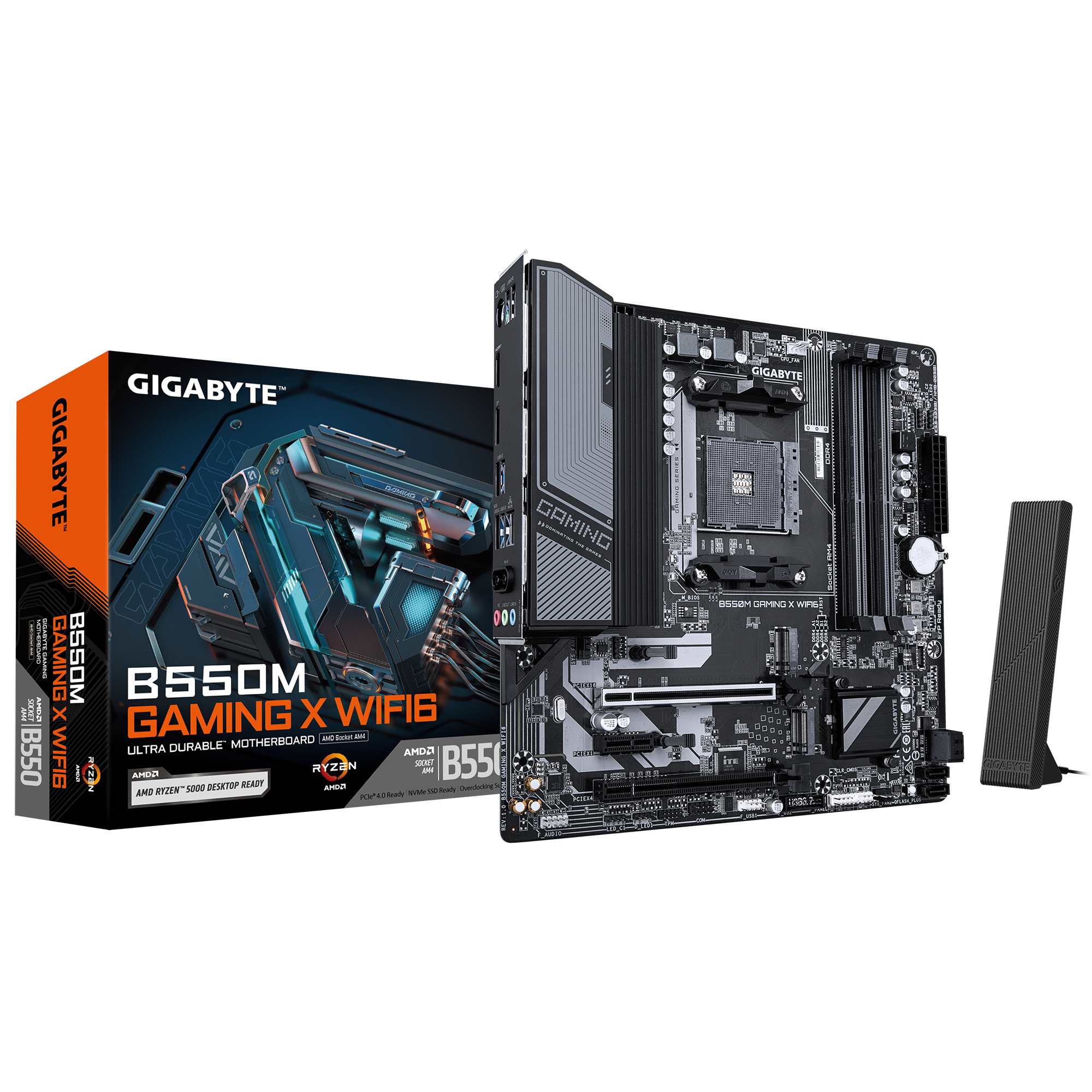

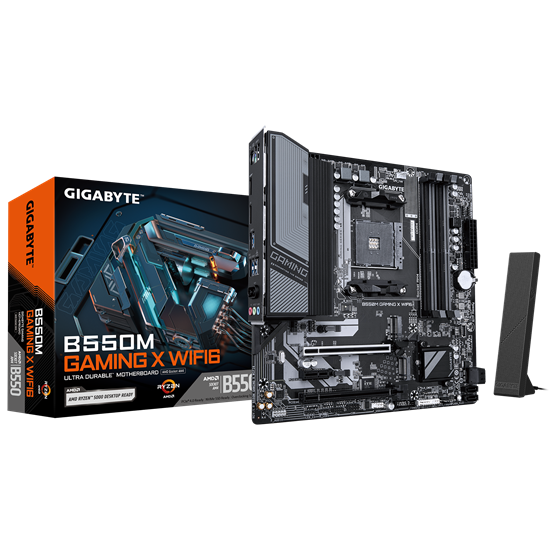

GIGABYTE B550M GAMING X WIFI6 AM4 MB

€111,05 ar pvn

Artikuls: ST09086509

Preces kods: B550M GAMING X WIFI6

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
LT	3 - 5 dienās	60	€111,05 ar pvn
PL	8 - 15 dienās	10	€117,64 ar pvn
LV	2 - 5 dienās	20	€134,73 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3
Specifikācija 4

CPU ligzda	Socket AM4
Atmiņas tips	DDR4
Plates izmērs (Form Factor)	mATX
Video interfeiss	DisplayPort
Video interfeiss	HDMI

Model	B550M GAMING X WIFI6
CPU socket	Socket AM4
Processor family	AMD Ryzen
Processor family	AMD Ryzen 3
Processor family	AMD Ryzen 5
Integrated CPU	No
Chipset manufacturer	AMD
Chipset type	AMD B550
Memory type	DDR4
Number of DDR4 slots	4
Memory bus frequency	2133 MHz
Memory bus frequency	2667 MHz
Memory bus frequency	3200 MHz
Memory bus frequency	2400 MHz
Memory bus frequency	2933 MHz
Memory bus frequency	133 MHz
Max memory size	128 (GigaBajt)
Expansion slots	1 x PCIe x 1
Expansion slots	1 x PCIe x 16
Expansion slots	2 x M.2
Max. number of SATA devices	4
RAID	No
Detailed data on disk/drive interfaces	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics	Zintegrowany układ graficzny z obsługą AMD Radeon Graphics: 1 × DisplayPort, obsługujący maksymalną rozdzielczość 5120 × 2880 przy 60 Hz Obsługa DisplayPort w wersji 1.4, HDCP 2.3 oraz HDR. 1 × port HDMI, obsługujący maksymalną rozdzielczość 4096 × 2160 przy 60 Hz Obsługa HDMI w wersji 2.1, HDCP 2.3 oraz HDR. ** Obsługa natywnych portów HDMI 2.1 zgodnych z TMDS. Maksymalna współdzielona pamięć: 16 GB
Sound card	Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel
Network interface	Wi-Fi 802.11a/b/g/n/ac/ax
Network interface	1 x 10/100/1000 Mbit/s
Network interface	Bluetooth
Network interface	Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) Realtek Wi-Fi 6 RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 80MHz wireless standard
USB ports at back panel	6
USB ports on motherboard	5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports	0
FireWire (IEEE 1394)	No
COM connector / port	Yes
LPT connector / port	No
External connectors	1 x RJ-45
External connectors	1 x HDMI
External connectors	4 x USB 3.2 Gen 1 Type-A
External connectors	2 x SMA
External connectors	1 x PS/2 Keyboard/MouseCombo
External connectors	2 x USB 2.0
External connectors	1 x Line In
External connectors	1 x Line Out
External connectors	1 x MIC
External connectors	1 x DisplayPort
Onboard connectors	1 x Power LED and Speaker Header
Onboard connectors	1 x USB 3.2 Gen 1 Type-C
Onboard connectors	2 x Addressable LED
Onboard connectors	1 x Q-Flash Plus button
Onboard connectors	1 x M.2
Onboard connectors	1 x USB 2.0/1.1 header
Onboard connectors	4 x SATA III 6Gb/s
Onboard connectors	1 x Clear CMOS jumper
Onboard connectors	2 x 4pin Chassis fan
Onboard connectors	1 x Serial port header
Onboard connectors	1 x USB 3.2 Gen 1 Type-A
Onboard connectors	2 x RGB LED Strip
Onboard connectors	1 x 24pin ATX zasilanie
Onboard connectors	1 x Front panel audio header
Onboard connectors	1 x TPM header
Onboard connectors	1 x 4pin CPU fan
Onboard connectors	1 x 8pin 12V power
Onboard connectors	1 x System panel header
Special functions	Wykrywanie napięcia Wykrywanie temperatury Wykrywanie prędkości wentylatora Ostrzeżenie o przegrzaniu Ostrzeżenie o awarii wentylatora Sterowanie prędkością wentylatora
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor	micro ATX
Dimensions	24.4 cm x 24.4 cm
Supported operating systems	Windows 10
Supported operating systems	Windows 11
Software	Norton Internet Security (OEM version) LAN bandwidth management software
Designation	CE+WEEE
Width	270
Height	275
Depth	65
Weight	1165
Description
Description	AMD Socket AM4 : Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors Digital twin 5+3 phases VRM solution Dual Channel DDR : 4DIMMs WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch : PCIe slots with Quick Release Design Ultra-Fast Storage : 2M.2 slots, including PCIe 4.0 x1 Efficient Thermal : VRM Thermal Armor Advanced Fast Networking : GbE LAN & Wi-Fi 6 Extended Connectivity : HDMI, Displayport PCIe UD Slot : PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Description	GIGABYTE B550M GAMING X WIFI6 AM4 MB
VatType	VAT
Weight	1.200000000
Height	70.000000000
Width	270.000000000
Length	275.000000000
Description
Description	GIGABYTE B550M GAMING X WIFI6 AM4 4xDDR4 2xM.2 4xSATA

Gross depth (mm)	244.00
Gross depth (mm)	244.00
Gross height (mm)	54.00
Gross height (mm)	54.00
Gross weight	1.02
Gross width (mm)	244.00
Gross width (mm)	244.00
Net weight	0.82
Tare weight (kg)	0.20
Tare weight (kg)	0.20
Volume (m3)	0.00
Volume (m3)	0.00

Specifikācija

1
Specifikācija 2
Specifikācija 3
Specifikācija 4

CPU ligzda	Socket AM4
Atmiņas tips	DDR4
Plates izmērs (Form Factor)	mATX
Video interfeiss	DisplayPort
Video interfeiss	HDMI

Model	B550M GAMING X WIFI6
CPU socket	Socket AM4
Processor family	AMD Ryzen
Processor family	AMD Ryzen 3
Processor family	AMD Ryzen 5
Integrated CPU	No
Chipset manufacturer	AMD
Chipset type	AMD B550
Memory type	DDR4
Number of DDR4 slots	4
Memory bus frequency	2133 MHz
Memory bus frequency	2667 MHz
Memory bus frequency	3200 MHz
Memory bus frequency	2400 MHz
Memory bus frequency	2933 MHz
Memory bus frequency	133 MHz
Max memory size	128 (GigaBajt)
Expansion slots	1 x PCIe x 1
Expansion slots	1 x PCIe x 16
Expansion slots	2 x M.2
Max. number of SATA devices	4
RAID	No
Detailed data on disk/drive interfaces	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs - AMD Ryzen 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics	Zintegrowany układ graficzny z obsługą AMD Radeon Graphics: 1 × DisplayPort, obsługujący maksymalną rozdzielczość 5120 × 2880 przy 60 Hz Obsługa DisplayPort w wersji 1.4, HDCP 2.3 oraz HDR. 1 × port HDMI, obsługujący maksymalną rozdzielczość 4096 × 2160 przy 60 Hz Obsługa HDMI w wersji 2.1, HDCP 2.3 oraz HDR. ** Obsługa natywnych portów HDMI 2.1 zgodnych z TMDS. Maksymalna współdzielona pamięć: 16 GB
Sound card	Realtek ALC1220 CODEC High Definition Audio 2/4/5.1/7.1-channel
Network interface	Wi-Fi 802.11a/b/g/n/ac/ax
Network interface	1 x 10/100/1000 Mbit/s
Network interface	Bluetooth
Network interface	Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) Realtek Wi-Fi 6 RTL8851BE WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 80MHz wireless standard
USB ports at back panel	6
USB ports on motherboard	5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports	7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports	0
FireWire (IEEE 1394)	No
COM connector / port	Yes
LPT connector / port	No
External connectors	1 x RJ-45
External connectors	1 x HDMI
External connectors	4 x USB 3.2 Gen 1 Type-A
External connectors	2 x SMA
External connectors	1 x PS/2 Keyboard/MouseCombo
External connectors	2 x USB 2.0
External connectors	1 x Line In
External connectors	1 x Line Out
External connectors	1 x MIC
External connectors	1 x DisplayPort
Onboard connectors	1 x Power LED and Speaker Header
Onboard connectors	1 x USB 3.2 Gen 1 Type-C
Onboard connectors	2 x Addressable LED
Onboard connectors	1 x Q-Flash Plus button
Onboard connectors	1 x M.2
Onboard connectors	1 x USB 2.0/1.1 header
Onboard connectors	4 x SATA III 6Gb/s
Onboard connectors	1 x Clear CMOS jumper
Onboard connectors	2 x 4pin Chassis fan
Onboard connectors	1 x Serial port header
Onboard connectors	1 x USB 3.2 Gen 1 Type-A
Onboard connectors	2 x RGB LED Strip
Onboard connectors	1 x 24pin ATX zasilanie
Onboard connectors	1 x Front panel audio header
Onboard connectors	1 x TPM header
Onboard connectors	1 x 4pin CPU fan
Onboard connectors	1 x 8pin 12V power
Onboard connectors	1 x System panel header
Special functions	Wykrywanie napięcia Wykrywanie temperatury Wykrywanie prędkości wentylatora Ostrzeżenie o przegrzaniu Ostrzeżenie o awarii wentylatora Sterowanie prędkością wentylatora
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor	micro ATX
Dimensions	24.4 cm x 24.4 cm
Supported operating systems	Windows 10
Supported operating systems	Windows 11
Software	Norton Internet Security (OEM version) LAN bandwidth management software
Designation	CE+WEEE
Width	270
Height	275
Depth	65
Weight	1165
Description
Description	AMD Socket AM4 : Supports AMD Ryzen 5000 / 4000 / 3000 Series Processors Digital twin 5+3 phases VRM solution Dual Channel DDR : 4DIMMs WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch : PCIe slots with Quick Release Design Ultra-Fast Storage : 2M.2 slots, including PCIe 4.0 x1 Efficient Thermal : VRM Thermal Armor Advanced Fast Networking : GbE LAN & Wi-Fi 6 Extended Connectivity : HDMI, Displayport PCIe UD Slot : PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

Description	GIGABYTE B550M GAMING X WIFI6 AM4 MB
VatType	VAT
Weight	1.200000000
Height	70.000000000
Width	270.000000000
Length	275.000000000
Description
Description	GIGABYTE B550M GAMING X WIFI6 AM4 4xDDR4 2xM.2 4xSATA

Gross depth (mm)	244.00
Gross depth (mm)	244.00
Gross height (mm)	54.00
Gross height (mm)	54.00
Gross weight	1.02
Gross width (mm)	244.00
Gross width (mm)	244.00
Net weight	0.82
Tare weight (kg)	0.20
Tare weight (kg)	0.20
Volume (m3)	0.00
Volume (m3)	0.00
