| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 12 - 6 A |
| Maximum input current (@110V) | 6 A |
| Maximum input current (@220V) | 12 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 8 |
| Number of PATA power connectors | 3 |
| SATA power cable length | 150,600 mm |
| Peripheral (Molex) power cable length | 200,600 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Noise level | 40 dB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | No |
| Cables included | CPU, PATA, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
| Package type | Box |
| Sustainability certificates | CCC, CE, Federal Communications Commission (FCC), RoHS |
| Warranty period | 5 year(s) |
| Description |

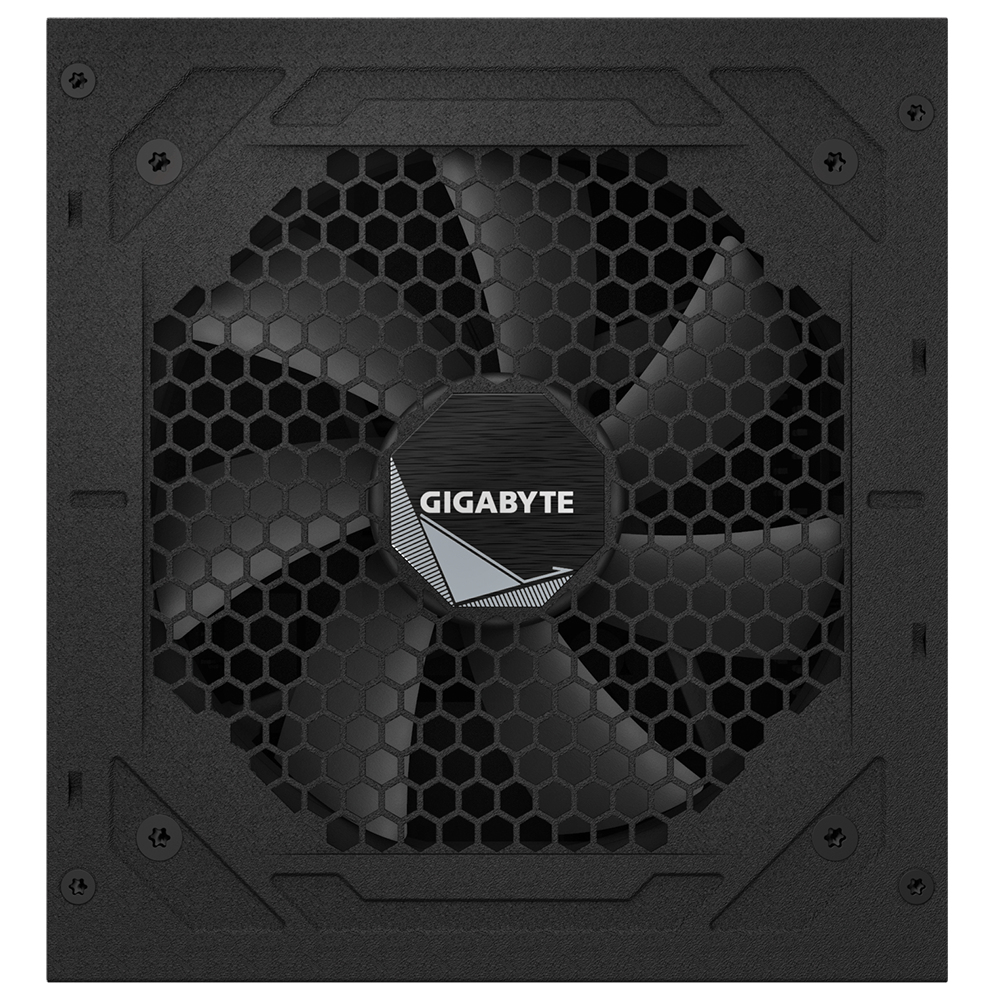

| Gigabyte GP-UD850GM PG5. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PATA, Peripheral (Molex), SATA |
