    Ražotājs: GIGABYTE

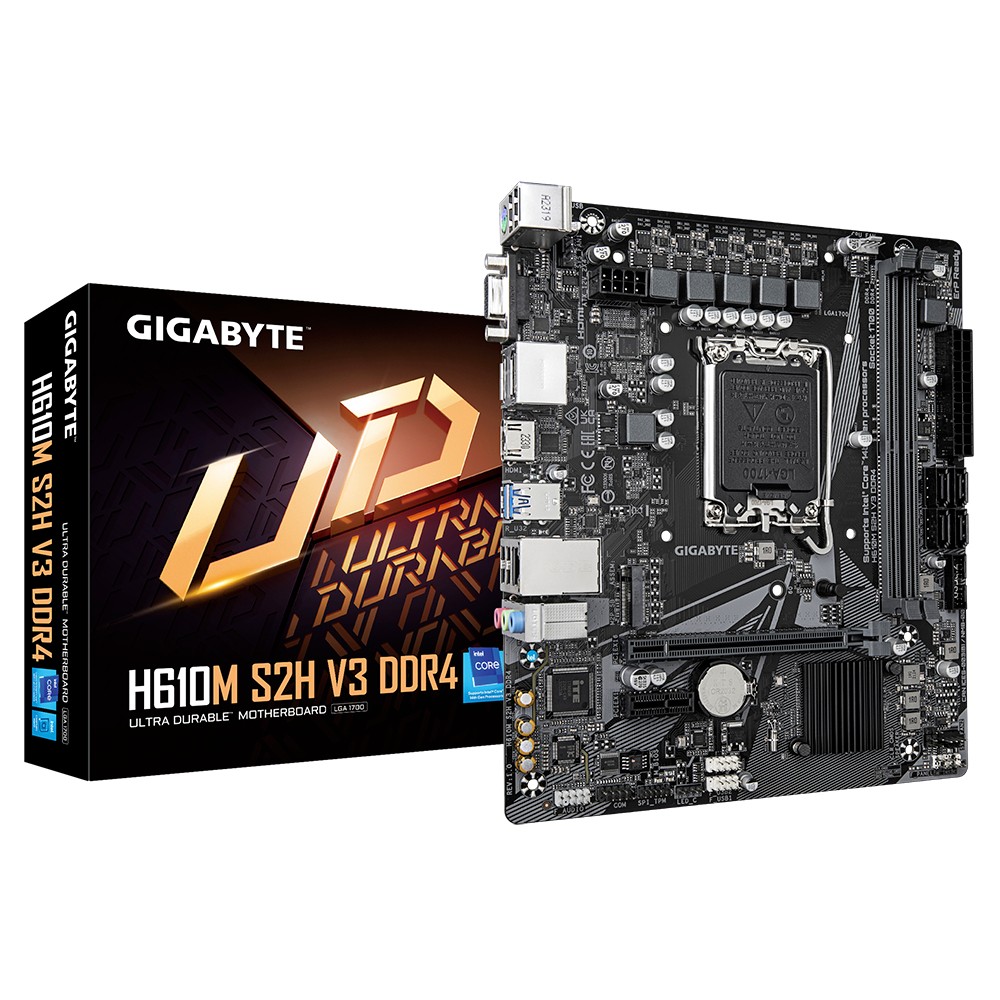

    GIGABYTE H610M S2H V3 DDR4 LGA1700


    €83,13 ar pvn

    Artikuls: ST07964865
    Preces kods: H610M S2H V3 DDR4
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV
    PL

    Specifikācija
    CPU ligzda LGA 1700
    Atmiņas tips DDR4
    Video interfeiss HDMI
    Plates izmērs (Form Factor) mATX
    Video interfeiss DisplayPort
    Video interfeiss D-Sub
    Model

    H610M S2H V3 DDR4

    CPU socketLGA1700
    Processor familyIntel Celeron
    Processor familyIntel Pentium Gold
    Processor familyIntel Core i3
    Processor familyIntel Core i5
    Processor familyIntel Core i7
    Processor familyIntel Core i9
    Integrated CPUNo
    Chipset manufacturerIntel
    Chipset type

    Intel H610 Express

    Memory type DDR4
    Number of DDR4 slots2
    Memory bus frequency3200 MHz
    Memory bus frequency2933 MHz
    Memory bus frequency2400 MHz
    Memory bus frequency2666 MHz
    Memory bus frequency3000 MHz
    Memory bus frequency2133 MHz
    Max memory size 64 (GigaBajt)
    Expansion slots1 x PCIe 3.0 x 1
    Expansion slots1 x PCIe 4.0 x 16
    Max. number of SATA devices 4
    RAIDNo
    Detailed data on disk/drive interfaces

    Chipset:

    • 1 x M.2 złącze (obsługa Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD)
    • 4 x złącze SATA 6Gb/s
    Graphics

    Zintegrowany procesor graficzny - obsługa grafiki Intel HD:

    • Port D-Sub obsługujący maksymalną rozdzielczość 1920x1200 przy 60 Hz
    • Port HDMI obsługujący maksymalną rozdzielczość 4096x2160 przy 60 Hz

    * Obsługa wersji HDMI 2.1 i HDCP 2.3.

    ** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS.

    • 2 x DisplayPort, obsługujące maksymalną rozdzielczość 4096x2304 przy 60 Hz

    * Wsparcie dla wersji DisplayPort 1.2 i HDCP 2.3

    Sound card
    • Realtek Audio CODEC
    • High Definition Audio
    • Kanały 2/4/5.1/7.1
    Network interface1 x 10/100/1000 Mbit/s
    Network interface

    Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

    USB ports at back panel6
    USB ports on motherboard6
    Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
    Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports0
    FireWire (IEEE 1394)No
    COM connector / portYes
    LPT connector / portNo
    External connectors2 x USB 3.0
    External connectors1 x Przycisk Clear CMOS
    External connectors1 x HDMI
    External connectors1 x Line In
    External connectors1 x Line Out
    External connectors1 x PS/2 Keyboard/MouseCombo
    External connectors1 x D-Sub
    External connectors2 x DisplayPort
    External connectors1 x RJ-45
    External connectors1 x MIC
    External connectors4 x USB 2.0
    Onboard connectors1 x 4pin CPU fan
    Onboard connectors1 x Chassis intrusion header
    Onboard connectors1 x M.2
    Onboard connectors1 x 24pin ATX zasilanie
    Onboard connectors1 x 8pin 12V power
    Onboard connectors4 x SATA III 6Gb/s
    Onboard connectors4 x USB 2.0/1.1
    Onboard connectors1 x Front panel audio header
    Onboard connectors1 x Speaker header
    Onboard connectors1 x Serial port header
    Onboard connectors1 x TPM header
    Onboard connectors1 x System panel header
    Onboard connectors2 x USB 3.0 header
    Onboard connectors2 x 4pin Chassis fan
    Onboard connectors1 x RGB LED strip header
    Special functions

    Obsługa:

    • APP Center
    • @BIOS
    • EasyTune
    • Smart Backup
    • System Information Viewer
    • Q-Flash
    BIOS
    • 1 x 128 Mbit flash
    • Korzysta z licencji AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form factormicro ATX
    Dimensions

    22.3 x 19.3 cm

    Supported operating systemsWindows 10
    Supported operating systemsWindows 11
    Software
    • Norton Internet Security (wersja OEM)
    • Oprogramowanie do zarządzania przepustowością sieci LAN
    Width270
    Height240
    Depth50
    Weight711
    Description

    H610M S2H V3 DDR4

    • Obsługuje procesory Intel Core 14/13/12-generacji
    • Pamięć Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
    • 4+1+1 Hybrid Digital VRM Design
    • GbE LAN z zarządzaniem przepustowością
    • NVMe PCIe 3.0 x4 M.2
    • 2 porty DisplayPort / port HDMI / port D-Sub dla wielu wyświetlaczy
    • Wysokiej jakości kondensatory audio i osłona przeciwzakłóceniowa
    • Smart Fan 6 - posiada wiele czujników temperatury, hybrydowe złącza wentylatorów z funkcją FAN STOP
    • Centrum aplikacji GIGABYTE, proste i łatwe w użyciu
    • Anti-Sulfur Resistors Design
    DescriptionGIGABYTE H610M S2H V3 DDR4 LGA1700
    VatTypeVAT
    Weight1.200000000
    Height0.000000000
    Width0.000000000
    Length0.000000000
    Description
    GIGABYTE H610M S2H V3 DDR4 LGA1700 2xDDR5 4xSATA 1xM.2
    Description
    1700 Gigabyte H610M S2H V3 DDR4

    Specifikācija
    CPU ligzda LGA 1700
    Atmiņas tips DDR4
    Video interfeiss HDMI
    Plates izmērs (Form Factor) mATX
    Video interfeiss DisplayPort
    Video interfeiss D-Sub
    Model

    H610M S2H V3 DDR4

    CPU socketLGA1700
    Processor familyIntel Celeron
    Processor familyIntel Pentium Gold
    Processor familyIntel Core i3
    Processor familyIntel Core i5
    Processor familyIntel Core i7
    Processor familyIntel Core i9
    Integrated CPUNo
    Chipset manufacturerIntel
    Chipset type

    Intel H610 Express

    Memory type DDR4
    Number of DDR4 slots2
    Memory bus frequency3200 MHz
    Memory bus frequency2933 MHz
    Memory bus frequency2400 MHz
    Memory bus frequency2666 MHz
    Memory bus frequency3000 MHz
    Memory bus frequency2133 MHz
    Max memory size 64 (GigaBajt)
    Expansion slots1 x PCIe 3.0 x 1
    Expansion slots1 x PCIe 4.0 x 16
    Max. number of SATA devices 4
    RAIDNo
    Detailed data on disk/drive interfaces

    Chipset:

    • 1 x M.2 złącze (obsługa Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD)
    • 4 x złącze SATA 6Gb/s
    Graphics

    Zintegrowany procesor graficzny - obsługa grafiki Intel HD:

    • Port D-Sub obsługujący maksymalną rozdzielczość 1920x1200 przy 60 Hz
    • Port HDMI obsługujący maksymalną rozdzielczość 4096x2160 przy 60 Hz

    * Obsługa wersji HDMI 2.1 i HDCP 2.3.

    ** Obsługa natywnych portów zgodnych z HDMI 2.1 TMDS.

    • 2 x DisplayPort, obsługujące maksymalną rozdzielczość 4096x2304 przy 60 Hz

    * Wsparcie dla wersji DisplayPort 1.2 i HDCP 2.3

    Sound card
    • Realtek Audio CODEC
    • High Definition Audio
    • Kanały 2/4/5.1/7.1
    Network interface1 x 10/100/1000 Mbit/s
    Network interface

    Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

    USB ports at back panel6
    USB ports on motherboard6
    Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
    Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports0
    FireWire (IEEE 1394)No
    COM connector / portYes
    LPT connector / portNo
    External connectors2 x USB 3.0
    External connectors1 x Przycisk Clear CMOS
    External connectors1 x HDMI
    External connectors1 x Line In
    External connectors1 x Line Out
    External connectors1 x PS/2 Keyboard/MouseCombo
    External connectors1 x D-Sub
    External connectors2 x DisplayPort
    External connectors1 x RJ-45
    External connectors1 x MIC
    External connectors4 x USB 2.0
    Onboard connectors1 x 4pin CPU fan
    Onboard connectors1 x Chassis intrusion header
    Onboard connectors1 x M.2
    Onboard connectors1 x 24pin ATX zasilanie
    Onboard connectors1 x 8pin 12V power
    Onboard connectors4 x SATA III 6Gb/s
    Onboard connectors4 x USB 2.0/1.1
    Onboard connectors1 x Front panel audio header
    Onboard connectors1 x Speaker header
    Onboard connectors1 x Serial port header
    Onboard connectors1 x TPM header
    Onboard connectors1 x System panel header
    Onboard connectors2 x USB 3.0 header
    Onboard connectors2 x 4pin Chassis fan
    Onboard connectors1 x RGB LED strip header
    Special functions

    Obsługa:

    • APP Center
    • @BIOS
    • EasyTune
    • Smart Backup
    • System Information Viewer
    • Q-Flash
    BIOS
    • 1 x 128 Mbit flash
    • Korzysta z licencji AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form factormicro ATX
    Dimensions

    22.3 x 19.3 cm

    Supported operating systemsWindows 10
    Supported operating systemsWindows 11
    Software
    • Norton Internet Security (wersja OEM)
    • Oprogramowanie do zarządzania przepustowością sieci LAN
    Width270
    Height240
    Depth50
    Weight711
    Description

    H610M S2H V3 DDR4

    • Obsługuje procesory Intel Core 14/13/12-generacji
    • Pamięć Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
    • 4+1+1 Hybrid Digital VRM Design
    • GbE LAN z zarządzaniem przepustowością
    • NVMe PCIe 3.0 x4 M.2
    • 2 porty DisplayPort / port HDMI / port D-Sub dla wielu wyświetlaczy
    • Wysokiej jakości kondensatory audio i osłona przeciwzakłóceniowa
    • Smart Fan 6 - posiada wiele czujników temperatury, hybrydowe złącza wentylatorów z funkcją FAN STOP
    • Centrum aplikacji GIGABYTE, proste i łatwe w użyciu
    • Anti-Sulfur Resistors Design
    DescriptionGIGABYTE H610M S2H V3 DDR4 LGA1700
    VatTypeVAT
    Weight1.200000000
    Height0.000000000
    Width0.000000000
    Length0.000000000
    Description
    GIGABYTE H610M S2H V3 DDR4 LGA1700 2xDDR5 4xSATA 1xM.2
    Description
    1700 Gigabyte H610M S2H V3 DDR4
