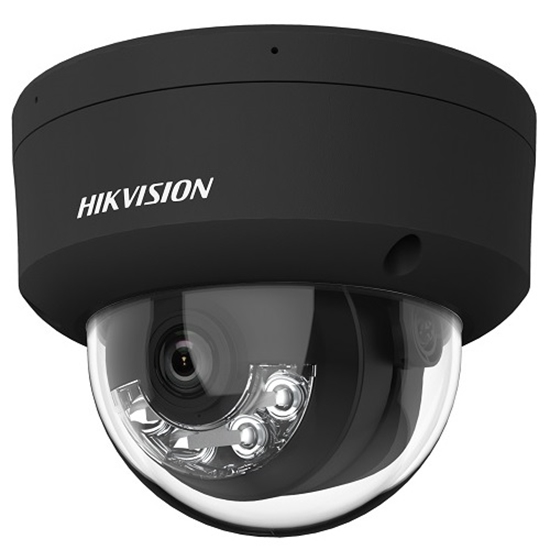

| MP Smart Hyrid Light with ColorVu Fied Dome Network CameraFeaturesModel: DS-2CD217G2H-LISU(2.8mm)(eF), lackHigh quality imaging with MP resolutionSmart Hyrid Light: advanced technology with long rangeClear imaging against strong ack light due to 130 dB WDR technologyEfficient H.265+ compression technologyFocus on human and vehicle classification ased on deep learning-U: Built-in microphone for real-time audio securityWater and dust resistant (IP67) and vandal-resistant (IK10)SpecificationsCamera• Image Sensor: 11.8" Progressive Scan CMOS• Ma. Resolution: 2688 1520• Min. Illumination Color: 0.0005 Lu @ (F1.0, AGC ON), 0 Lu with light• Shutter Time: 13 s to 1100,000 s• Day amp Night: IR cut filter• Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°Lens• Lens Type: Fied focal lens, 2.8mm• Focal Length amp FOV: 2.8 mm, horizontal FOV 10.0°, vertical FOV 5.°, diagonal FOV 126.7°• Lens Mount: M16• Iris Type: Fied• Aperture: F1.0• DORI 2.8 mm: D: 61 m, O: 2 m, R: 12 m, I: 6 mIlluminator• Supplement Light Type : IR, White Light• Supplement Light Range Up to 30 m• Smart Supplement Light Yes• IR Wavelength 850 nmVideo• Main Stream:50 Hz: 25 fps (2688 1520, 1920 1080, 1280 720)60 Hz: 30 fps (2688 1520, 1920 1080, 1280 720)• Su-Stream:50 Hz: 25 fps (1280 720, 60 80, 60 360)60 Hz: 30 fps (1280 720, 60 80, 60 360)• Third Stream:50 Hz: 10 fps (1920 1080, 1280 720, 60 80, 60 360)60 Hz: 10 fps (1920 1080, 1280 720, 60 80, 60 360)*Third stream is supported under certain settings.• Video Compression:Main stream: H.265+H.265H.26+H.26Su-stream: H.265H.26MJPEG,• Video Bit Rate 32 Kps to 8 Mps• H.26 Type Baseline Profile, Main Profile, High Profile• H.265 Type Main Profile• Bit Rate Control CBR, VBR• Scalale Video Coding (SVC) H.26 and H.265 encoding• Region of Interest (ROI) 1 fied region for main stream and su-streamAudio• Environment Noise Filtering -U: Yes• Audio Type-U: Mono sound• Audio Compression -U: G.711G.722.1G.726MP2L2PCMMP3AAC-LC• Audio Bit Rate -U: 6 Kps (G.711ulawG.711alaw)16 Kps (G.722.1)16 Kps (G.726)16 Kps to 6Kps (AAC-LC)32 to 192 Kps (MP2L2)8 to 320 Kps (MP3)• Audio Sampling Rate -U: 8 kHz16 kHz32 kHz.1 kHz8 kHzNetwork• Protocols: TCPIP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv, IPv6, UDP, Bonjour, SSLTLS, PPPoE, SNMP, WeSocket, WeSockets, SRTP, SFTP• Simultaneous Live View: Up to 6 channels• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP• UserHost: Up to 32 users 3 user levels: administrator, operator, and user• Security: Password protection, complicated password, HTTPS encryption, 802.1 authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, asic and digest authentication for HTTPHTTPS, WSSE and digest authentication for Open Network Video Interface, RTPRTSP over HTTPS, control timeout settings, security audit log, TLS 1.11.21.3, host authentication (MAC address)• Network Storage: NAS (NFS, SMBCIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.• Client: iVMS-200, Hik-Connect, Hik-Central• We Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefo 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefo 52.0+, Edge 89+Image• Wide Dynamic Range (WDR) 130 dB• SNR = 52 dB• DayNight Switch: Day,Night,Auto,Schedule• Image Enhancement: BLC, HLC, 3D DNR• Image Settings: Rotate mode,saturation,rightness,contrast,sharpness,gain,white alance,adjustale y client software or we rowser• Privacy Mask: programmale polygon privacy mask• Image Parameters Switch: yesInterface• Ethernet Interface 1 RJ5 10 M100 M self-adaptive Ethernet port• On-Board Storage: Built-in memory card slot, support microSD microSDHC microSDXC card, up to 512 GB• Built-in Microphone: -U: Yes• Audio: -S: 1 input (line in), two-core terminal lock, ma. input amplitude: 3.3 Vpp, input impedance: .7 K?, interface type: non-equilirium, -S: 1 output (line out), two-core terminal lock, ma. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilirium• Alarm: -S: 1 input, 1 output (ma. 12 VDC, 30 mA)• Reset Key: YesEvent• Basic Event: Motion detection (support alarm triggering y specified target types (human and vehicle)), video tampering alarm, eception• Linkage: Upload to FTPNASmemory card, notify surveillance center, trigger recording, trigger capture, send email• Smart Event: Scene change detectionDeep Learning Function• Face Capture: Yes• Perimeter Protection: Line crossing, intrusion, region entrance, region eiting Support alarm triggering y specified target types (human and vehicle)General• Power: 12 VDC ± 25%, 0.6 A, ma. 7.2 W,Ø5.5 mm coaial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, ma. 8.5 W• Material: Base: aluminum alloy, cover: aluminum alloy• Dimension: Ø121.5 mm 97.6 mm (Ø.78" 3.8")• Package Dimension: 23 mm 120 mm 117 mm (9.2" .7" .6")• Weight Appro. 525 g (1.2 l.)• With Package Weight Appro. 750 g (1.7 l.)• Storage Conditions: -30 °C to 60 °C (-22 °F to 10 °F). Humidity 95% or less (non-condensing)• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 10 °F). Humidity 95% or less (non-condensing)• General Function: Hearteat, mirror, password reset via email, piel counter, anti-anding• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianApproval• EMC:CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-: 2011 +A1: 201,RCM: ASNZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015• Safety:UL: UL 62368-1,CB: IEC 62368-1: 201+A11,CE-LVD: EN 62368-1: 201A11: 2017,BIS: IS 13252 (Part 1): 2010IEC 60950-1: 2005• Environment: CE-RoHS: 201165EU, WEEE: 201219EU, Reach: Regulation (EC) No 19072006• Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
