| Processor family | Intel Xeon E |
| Processor cores | 8 |
| Processor socket | LGA 1200 (Socket H5) |
| Processor lithography | 14 nm |
| Box | No |
| Cooler included | No |
| Processor manufacturer | Intel |
| Processor model | E-2388G |
| Processor base frequency | 3.2 GHz |
| Processor operating modes | 64-bit |
| Component for | Server/workstation |
| Processor threads | 16 |
| System bus rate | 8 GT/s |
| Processor boost frequency | 5.1 GHz |
| Processor cache | 16 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 95 W |
| Processor ARK ID | 214805 |
| Memory channels | Dual-channel |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| ECC | Yes |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| On-board graphics card model | Intel UHD Graphics P750 |
| Discrete graphics card model | Not available |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1300 MHz |
| On-board graphics card 4K support | Yes |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
| Number of execution units | 32 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 20 |
| PCI Express slots version | 4.0 |
| PCI Express configurations | 1x16+1x4, 2x8+1x4, 1x8+3x4 |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0, AVX-512 |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G167599 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Intel® Turbo Boost Technology 2.0 frequency | 5.1 GHz |
| Intel® Transactional Synchronization Extensions | No |
| Maximum Enclave Size Support for Intel® SGX | 0.5 GB |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Boot Guard | Yes |
| Intel® Optane™ DC Persistent Memory Supported | No |
| Intel® vPro™ Platform Eligibility | Yes |
| Tjunction | 100 °C |
| Supported memory types | DDR4-SDRAM |
| Harmonized System (HS) code | 85423119 |
| Processor package size | 37.5 x 37.5 mm |
| Maximum internal memory | 128 GB |
| Launch date | Q3'21 |
| Status | Launched |
| Servicing status | Baseline Servicing |
| Description |

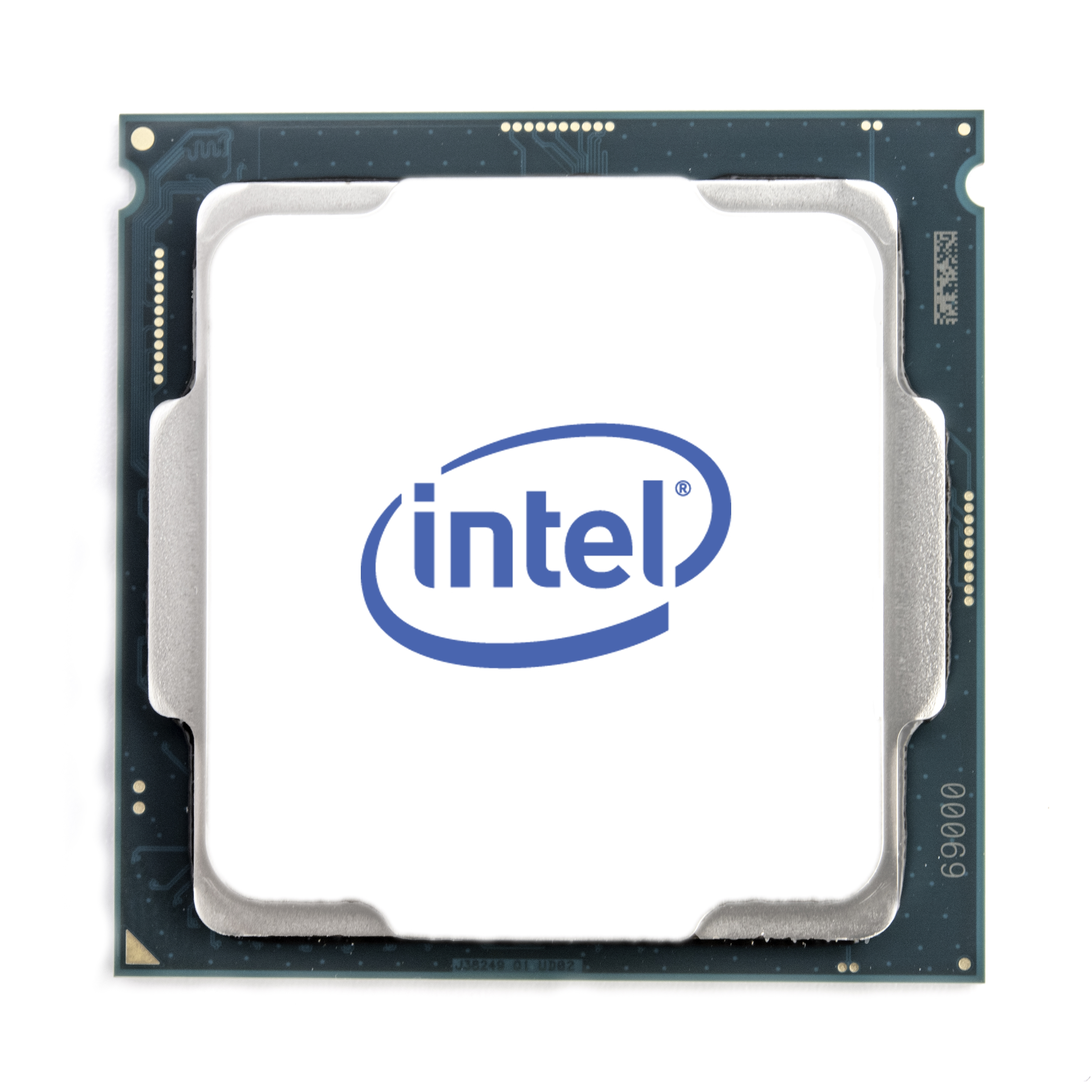

| Intel Xeon E-2388G. Processor family: Intel Xeon E, Processor socket: LGA 1200 (Socket H5), Processor lithography: 14 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 128 GB, Memory types supported by processor: DDR4-SDRAM. On-board graphics card model: Intel UHD Graphics P750, Maximum on-board graphics card memory: 64 GB, On-board graphics card base frequency: 350 MHz. Market segment: Server, PCI Express configurations: 1x16+1x4, 2x8+1x4, 1x8+3x4, Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0, AVX-512. Intel® Turbo Boost Technology 2.0 frequency: 5.1 GHz, Maximum Enclave Size Support for Intel® SGX: 0.5 GB |
