Ražotājs: INTELLINET

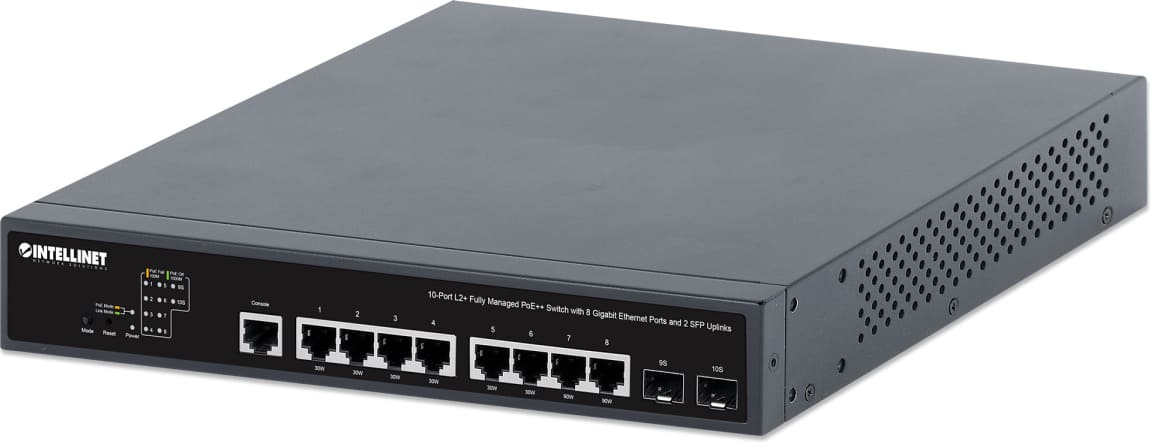

Intellinet 562003 tīkla pārslēgs Vadīts L2+/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Melns

€356,21 ar pvn

Artikuls: ST09546443

Preces kods: 562003

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	LV	7 - 12 dienās	1	€356,21 ar pvn

Daudzums:

Specifikācijas

Specifikācija

auto mdi/mdi-x

Yes

power over ethernet (poe)

Yes

weight

2.5 kg

height

44 mm

width

280 mm

depth

230 mm

full duplex

Yes

auto-negotiation

Yes

switch type

Managed

switch layer

L2+/L3

quality of service (qos) support

Yes

web-based management

Yes

basic switching rj-45 ethernet ports quantity

basic switching rj-45 ethernet ports type

Gigabit Ethernet (10/100/1000)

sfp module slots quantity

networking standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10g support

port mirroring

Yes

flow control support

Yes

link aggregation

Yes

mac address table

8000 entries

switching capacity

20 Gbit/s

forwarding rate

14.88 Mpps

store-and-forward

Yes

packet buffer memory

4.1 MB

rack mounting

Yes

form factor

product colour

Black

led indicators

Activity, Link, PoE, Power, System

mean time between failures (mtbf)

392650 h

power consumption (max)

252 W

power over ethernet plus (poe+) ports quantity

total power over ethernet (poe) budget

242 W

operating temperature (t-t)

0 - 45 °C

storage temperature (t-t)

-40 - 70 °C

operating relative humidity (h-h)

10 - 90%

storage relative humidity (h-h)

5 - 90%

package width

357 mm

package depth

355 mm

package height

101 mm

package weight

2.65 kg

certification

FCC, CE, RoHS, UKCA, NDAA

package type

Box

power source

ac input voltage

100 - 240 V

ac input frequency

50/60 Hz

manual

Yes

ethernet lan data rates

10,100,1000 Mbit/s

housing material

Metal

cables included

master (outer) case gross weight

11.7 kg

master (outer) case width

307 mm

master (outer) case length

410 mm

master (outer) case height

307 mm

products per master (outer) case

4 pc(s)

jumbo frames support

Yes

number of fans

1 fan(s)

jumbo frames

9216

igmp snooping

Yes

rack mount kit

Yes

power protection features

Surge protection

mac address auto-learning supported

Yes

mac address auto-aging supported

Yes

warranty period

3 year(s)

vlan support

Yes

broadcast storm control

Yes

dhcp features

DHCP Option 82, DHCP client, DHCP snooping

virtual lan features

Port-based VLAN, Tagged VLAN

management protocols

SNMP

half duplex

Yes

auto-sensing

Yes

power over ethernet 4ppoe (poe++) ports quantity

Description

Intellinet 562003. Slēdža tips: Vadīts, Slēdža līmenis: L2+/L3. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 8. Pilns duplekss. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 20 Gbit/s. Tīkla standarts: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Power over Ethernet (PoE). Statņa montāža, Formas faktors: 1U
