    Iepriekšējais produktsLindy 30m RJ45 S/FTP LSZH C...
    Nākamais produktsLindy 30m, VGA - VGA VGA ka...
    Ražotājs: LINDY

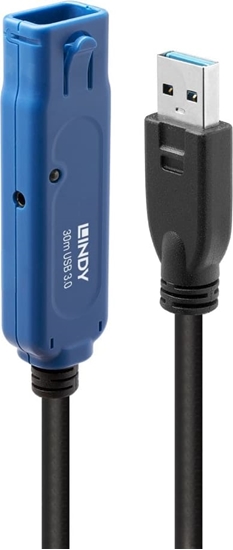

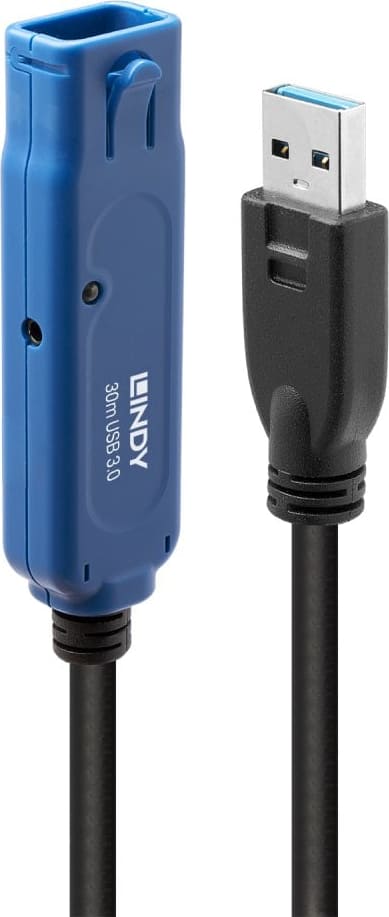

    Lindy 30m USB 3.0 Active Extension Pro


    €340,45 ar pvn

    Artikuls: ST08429198
    Preces kods: 43362
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Krāsa Zila
    Īpašības USB
    Īpašības USB 3.0
    Krāsa Zelta
    Krāsa Melna
    plug and playYes
    gross weight2.60
    maximum data transfer rate5 Gbit/s
    cable length30 m
    cable typeRound cable
    country of originTW
    product colourBlack, Blue
    operating temperature (t-t)0 - 50 °C
    storage temperature (t-t)-20 - 60 °C
    certificationCalifornia Proposition 65
    connector 1USB A
    connector 2USB A
    connector 1 genderMale
    connector 2 genderFemale
    quantity per pack1 pc(s)
    package typeCarton
    connector contacts platingGold
    compliance certificatesCE, Federal Communications Commission (FCC), REACH, RoHS
    conductor materialTinned copper
    awg wire size24/24/20
    usb versionUSB 3.2 Gen 1 (3.1 Gen 1)
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    warranty period2 year(s)
    cable diameter7 mm
    bend radius (min)3.6 cm
    connector housing materialPlastic
    connector 1 dimensions (wxdxh)15 x 49 x 8 mm
    connector 2 dimensions (wxdxh)20 x 80 x 13 mm
    connector materialNickel
    nominal attenuation0.064MHz - <0.08dB 0.256MHz - <0.11dB 0.512MHz - <0.13dB 0.772MHz - <0.15dB 1.0MHz - <0.20dB 4MHz - <0.39dB 8MHz - <0.57dB 12MHz - <0.76dB 24MHz - <0.95dB 48MHz - <1.35dB 96MHz - <1.90dB 200MHz - <3.20dB 400MHz - <5.80dB
    contact materialBrass
    transmission mediumTwisted pair
    net weight2.10
    packaging height20.00
    packaging lenght23.50
    packaging width12.00
    warranty2
    tech data sheetshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f0/67/97/62/629767f0d0ebe20d37a65e98/43362_TDS_v1.pdf
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6b/55/97/62/6297556ba7fecca6d5a65e9d/CE_DoC_DE_43361_43362.pdf
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6b/55/97/62/6297556ba7fecca6d5a65e9d/CE_DoC_DE_43361_43362.pdf
    manualshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/a9/b5/2d/63/632db5a9e09a813217e92c30/Lindy_43157_8_9_43229_361_2_MAN_0422.pdf
    Description

    Connectors

    • Connector A: USB Type A Male
    • Connector B: USB Type A Female
    • Power: 2.5/0.7mm DC Connector
    • Housing Material: Plastic
    • Connector Plating: Nickel
    • Pin Construction: Brass
    • Pin Plating: Gold Flash
    • Dimensions (approx.) WxDxH:
      • USB A Male: 15x49x8mm (0.59x1.93x0.31in)
      • USB A Female: 20x80x13mm (0.79x3.15x0.51in)
      • Repeater (3x): 84.5x15.5mm (3.33x0.61in)

    Cable Construction

    • Length: 30m (98.42ft)
    • Standard: USB 3.2 / 3.1 Gen 1 / 3.0
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 7mm +/- 0.15mm (0.28in +/- 0.01in)
    • Jacket Material: Half matt PVC low toxic
    • Conductor Material: Tinned Copper
    • Conductor Gauge: 24/24/20AWG
    • Shielding: AL Mylar and braid

    Specifications

    • Supported Bandwidth: 5 Gbps
    • Nominal Attenuation:
      • 0.064MHz - <0.08dB
      • 0.256MHz - <0.11dB
      • 0.512MHz - <0.13dB
      • 0.772MHz - <0.15dB
      • 1.0MHz - <0.20dB
      • 4MHz - <0.39dB
      • 8MHz - <0.57dB
      • 12MHz - <0.76dB
      • 24MHz - <0.95dB
      • 48MHz - <1.35dB
      • 96MHz - <1.90dB
      • 200MHz - <3.20dB
      • 400MHz - <5.80dB
    • Minimum Bend Radius: 36mm (1.42in)
    • Maximum Tensile Load: -
    • Operating Temperature: 0°C - 50°C (32°F - 122°F)
    • Storage Temperature: -20°C - 60°C (-4°F - 140°F)
    • Transmission Medium: Twisted Pair
    • Transmission Technology: USB 3.2 / 3.1 Gen 1 /  3.0

    Miscellaneous

    • Packaging Type: Carton Box
    • Packaging Dimensions: 235x200x120mm (9.25x7.87x4.72in)
    • Net Weight: 2.1kg (4.63lb)
    • Gross Weight: 2.6kg (5.73lb)
    • Warranty (Years): 2
    • Product Compliance: CE, FCC, RoHS, REACH & California Proposition 65, TAA

    Packaging Contents

    • USB 3.0 Active Extension Pro 30m
    • Power Adapter Cable Nr. 70265
    • Lindy Manual

    Purchasing Information

    • No.: 43362
    • EAN: 4002888433624

    This product is also available in other lengths

    • 43158 - 8m (26.25ft)
    • 43157 - 10m (32.81ft)
    • 43159 - 10m (32.81ft) with hub
    • 43229 - 15m (49.21ft)
    • 43361 - 20m (65.62ft)


    CE Doc: CE_DoC_DE_43361_43362.pdf
    Tech Data Sheets: 43362_TDS_v1.pdf
    Manuals: Lindy_43157_8_9_43229_361_2_MAN_0422.pdf
