| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3an |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Cabling technology | 10GBase-T |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Maximum operating distance | 100 m |
| Internal | Yes |
| Product colour | Black, Green |
| Certification | CE/European Union EN60950-1
UL/USA UL60950-1
CTUVus UL
Canada: CSA 22.2 No. 950
Taiwan: CNS14336 Class A
EN55022:2010 + *AC:2011 Class A
EN55024 Class A
FCC CFR47, Part 15 Class A
Canada: ICES-003 Class A
Australia, New Zealand: EN 5022:2010 + *AC:2011
Taiwan: BSMI CNS13438 Class A
South Korea: MIC RRL KN22 Class A
South Korea: KN24 (ESD)
Japan: VCCI V-3 04/2014
EN55024:2010 Air/Direct discharge |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 69 mm |
| Depth | 168 mm |
| Height | 15 mm |
| Harmonized System (HS) code | 85176990 |
| Description |

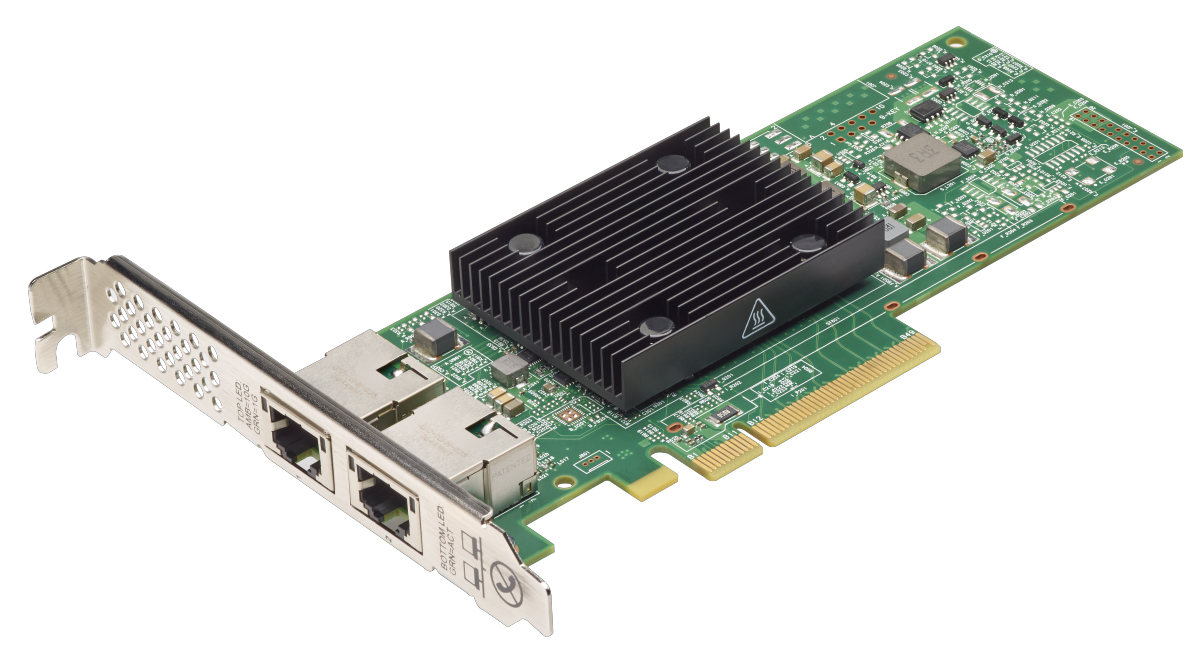

| Lenovo AUKP. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black, Green |
