    Ražotājs: LEVELONE

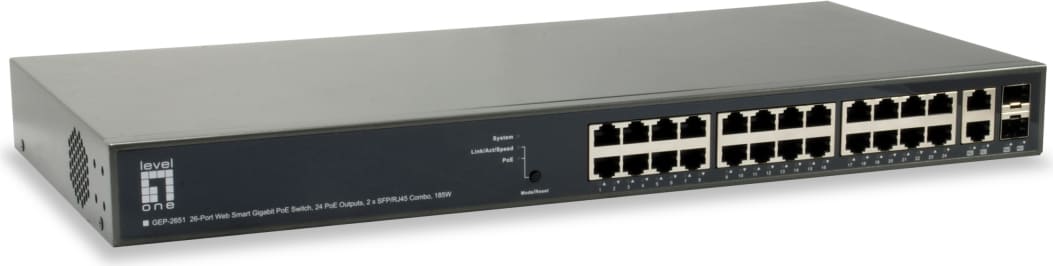

    LevelOne GEP-2651 TURING 26-Port Smart-Gigabit Switch


    €783,58 ar pvn

    Artikuls: ST07372574
    Preces kods: GEP-2651
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV

    Specifikācija
    Portu skaits RJ-45 26
    WRL stadarti 802.11b
    Īpašības RJ-45
    power over ethernet (poe)Yes
    weight3.1 kg
    height44 mm
    width442 mm
    depth211 mm
    switch typeManaged
    country of originTaiwan
    switch layerL3
    quality of service (qos) supportYes
    web-based managementYes
    basic switching rj-45 ethernet ports quantity24
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    gigabit ethernet (copper) ports quantity24
    networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
    copper ethernet cabling technology100BASE-TX, 1000BASE-T
    port mirroringYes
    flow control supportYes
    link aggregationYes
    mac address table8000 entries
    switching capacity52 Gbit/s
    forwarding rate38.7 Mpps
    store-and-forwardYes
    access control list (acl)Yes
    rack mountingYes
    product colourBlack
    led indicatorsActivity, Link, PoE, Speed
    mean time between failures (mtbf)211272 h
    power over ethernet plus (poe+) ports quantity24
    total power over ethernet (poe) budget185 W
    operating temperature (t-t)0 - 45 °C
    storage temperature (t-t)-20 - 70 °C
    operating relative humidity (h-h)10 - 90%
    storage relative humidity (h-h)10 - 90%
    package width300 mm
    package depth520 mm
    package height90 mm
    package weight3.5 kg
    certificationCE, FCC Part 15 Class A, RoHS
    harmonized system (hs) code85176990
    ac input voltage100 - 240 V
    ac input frequency50 - 60 Hz
    manualYes
    cables includedAC
    master (outer) case gross weight21 kg
    master (outer) case width482 mm
    master (outer) case length540 mm
    master (outer) case height324 mm
    products per master (outer) case5 pc(s)
    jumbo frames supportYes
    power consumption (typical)18.29 W
    security algorithms802.1x RADIUS
    safetyUL 60950-1, 2nd Edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10
    reset buttonYes
    quick start guideYes
    jumbo frames9600
    igmp snoopingYes
    internal memory128 MB
    spanning tree protocolYes
    supported network protocolsIPv4/IPv6
    buffer size512 KB
    mac address auto-learning supportedYes
    mac address auto-aging supportedYes
    static routeYes
    vlan supportYes
    firmware upgradeableYes
    system event logYes
    flash memory32 MB
    broadcast storm controlYes
    dhcp featuresDHCP server, DHCP snooping, DHCP client
    static port securityYes
    number of vlans256
    fiber ethernet cabling technology1000BASE-X
    virtual lan featuresTagged VLAN, MAC address-based VLAN, Port-based VLAN
    loop protectionYes
    combo sfp ports quantity2
    power over ethernet (poe) power per port30 W
    bpdu filtering/protectionYes
    cable length detectionYes
    Description
    LevelOne GEP-2651. Slēdža tips: Vadīts, Slēdža līmenis: L3. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 24. Adrešu tabulas izmērs: 8000 ieraksti, Komutācijas ietilpība: 52 Gbit/s. Tīkla standarts: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Statņa montāža
