    Iepriekšējais produktsLevelOne IGP-1031 Industria...
    Nākamais produktsLevelOne IGP-1271 TURING 12...
    Ražotājs: LEVELONE

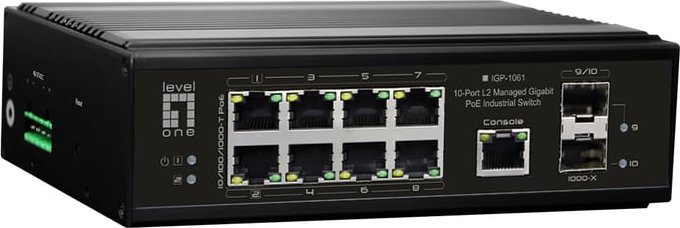

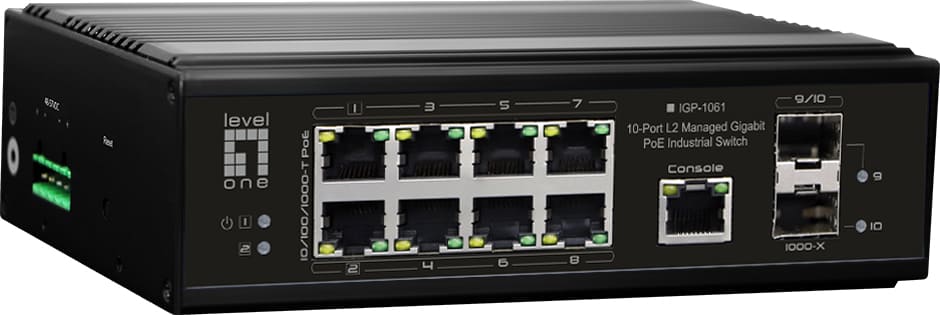

    LevelOne IGP-1061 Industrial 10-Port L2 Gigabit PoE Switch


    €460,63 ar pvn

    Artikuls: ST07375852
    Preces kods: IGP-1061
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL

    Specifikācija
    Portu skaits RJ-45 10
    Īpašības RJ-45
    WRL stadarti 802.11b
    power over ethernet (poe)Yes
    weight500 g
    height50 mm
    width165 mm
    depth115 mm
    auto-negotiationYes
    switch typeManaged
    country of originChina
    switch layerL2
    quality of service (qos) supportYes
    web-based managementYes
    basic switching rj-45 ethernet ports quantity8
    basic switching rj-45 ethernet ports typeGigabit Ethernet (10/100/1000)
    gigabit ethernet (copper) ports quantity8
    networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10g supportNo
    copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
    port mirroringYes
    flow control supportYes
    link aggregationYes
    mac address table8000 entries
    mac address filteringYes
    multicast supportYes
    rack mountingNo
    product colourBlack
    led indicatorsActivity, Link, PoE, Power
    noise level0 dB
    mean time between failures (mtbf)338634 h
    power consumption (max)380 W
    total power over ethernet (poe) budget360 W
    operating temperature (t-t)-40 - 75 °C
    storage temperature (t-t)-40 - 85 °C
    operating relative humidity (h-h)0 - 95%
    storage relative humidity (h-h)0 - 95%
    package width270 mm
    package depth181 mm
    package height74 mm
    package weight1.13 kg
    certificationCE, RoHS
    harmonized system (hs) code85176990
    package typeBox
    power sourceDC
    jumbo frames supportYes
    power consumption (typical)5 W
    quick start guideYes
    jumbo frames10000
    internal memory1024 MB
    spanning tree protocolYes
    fanlessYes
    dc input voltage48 - 57 V
    static routeYes
    vlan supportYes
    flash memory128 MB
    broadcast storm controlYes
    dhcp featuresDHCP Option 82, DHCP client, DHCP relay, DHCP snooping
    virtual lan featuresMAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
    console portRJ-45
    din rail mountingYes
    power over ethernet (poe) power per port10 W
    arp inspectionYes
    bpdu filtering/protectionYes
    installed sfp modules quantity2
    password protectionYes
    Description
    LevelOne IGP-1061. Slēdža tips: Vadīts, Slēdža līmenis: L2. Basic switching RJ-45 Ethernet portu veids: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet portu daudzums: 8, Instalēto SFP moduļu skaits: 2, Konsoles pieslēgvieta: RJ-45. Adrešu tabulas izmērs: 8000 ieraksti. Tīkla standarts: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE.... DC ievades spriegums: 48 - 57 V. Power over Ethernet (PoE)
