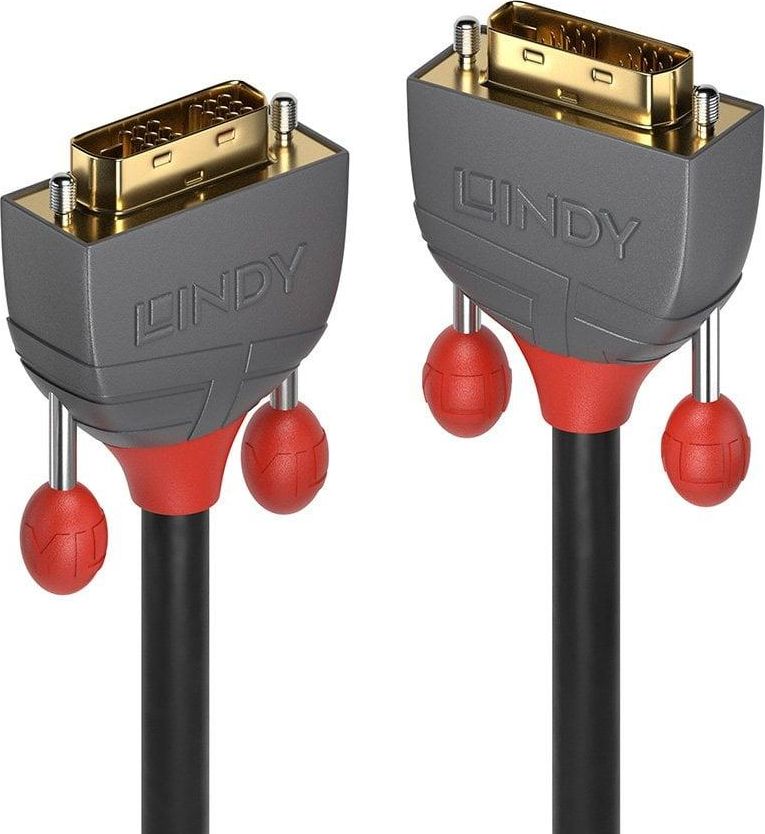

Lindy 10m DVI-D SLD Single Link Cable, Anthra Line

Connectors

• Connector A: DVI-D Male (Single Link)
• Connector B: DVI-D Male (Single Link)
• Housing Material: PVC
• Connector Plating: 24K Gold 1?m
• Pin Construction: Brass
• Pin Plating: 24K Gold 1?m
• Dimensions (approx.) WxDxH: 39.5x16.5x44.5mm (1.56x0.65x1.75in)

Cable Construction

• Length: 10m (32.81ft)
• Standard: DVI-D Single Link
• Colour: Black
• Type: Round
• Jacket Diameter: 9.5mm (0.37in)
• Jacket Material: PVC
• Conductor Material: Bare Copper
• Conductor Gauge: 24AWG
• Shielding: Aluminium Magnesium Braid 75%

Specifications

• Supported Bandwidth: 4.95 Gbps
• Maximum Resolution: 1920x1200@60Hz
• Nominal Attenuation: 1 - 825Mhz < 8db
• Minimum Bend Radius: 95mm (3.74in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, UL

Purchasing Information

• No. 36240
• EAN: 4002888362405

This product is also available in other lengths

• 36241 - 15m (49.21ft)
• 36242 - 20m (65.62ft)
• 36243 - 25m (82.02ft)
