    Iepriekšējais produktsLindy 15m Standard HDMI Cab...
    Nākamais produktsLindy 15m USB 3.0 Active Ex...
    Ražotājs: LINDY

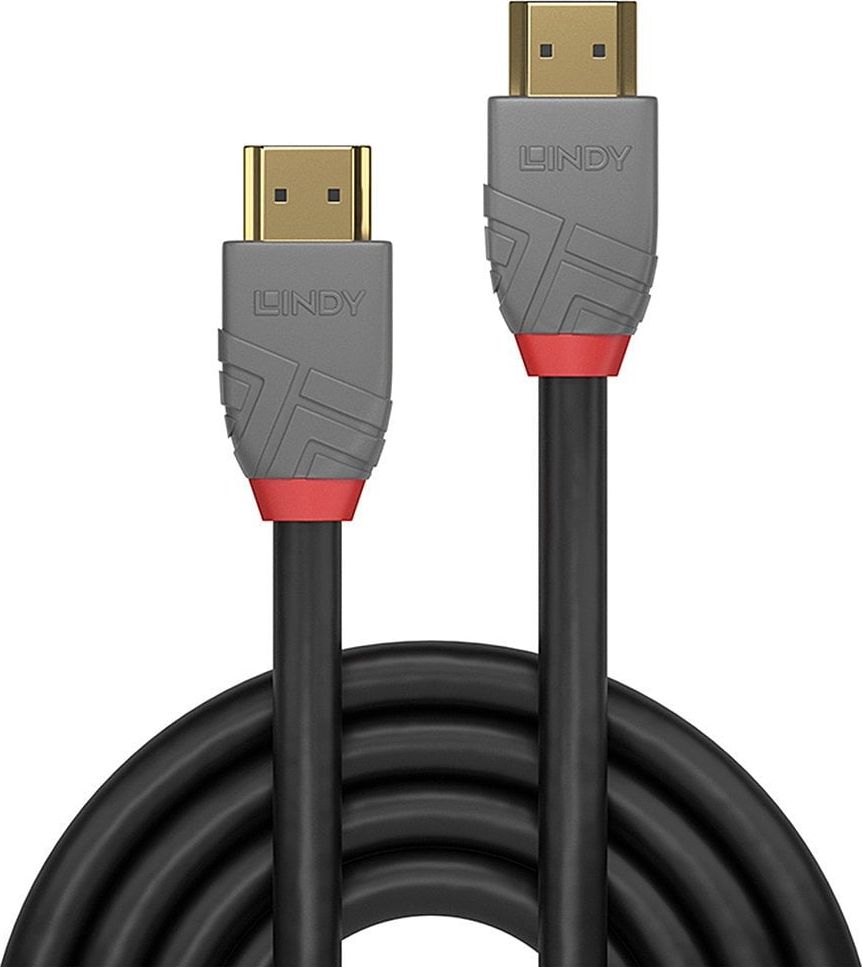

    Lindy 15m Standard HDMI Cablel, Anthra Line


    €91,10 ar pvn

    Artikuls: ST05568138
    Preces kods: 36968
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Īpašības HDMI
    Krāsa Pelēka
    Krāsa Zelta
    Krāsa Melna
    Vada garums (m.) 7.5 m
    Cable length15 m
    Connector 1HDMI Type A (Standard)
    Connector 2HDMI Type A (Standard)
    Connector 1 genderMale
    Connector 2 genderMale
    Product colourBlack, Grey
    Connector contacts platingGold
    Quantity per pack1 pc(s)
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    HDMI version2.0
    3DYes
    Supported graphics resolutions4096 x 2160
    Supported video modes2160p
    Audio Return Channel (ARC)Yes
    Data transfer rate10.2 Gbit/s
    Maximum refresh rate60 Hz
    AWG wire size24
    Contact materialPhosphor bronze
    Connector housing materialPolyvinyl chloride (PVC)
    Connector materialGold
    Cable materialCopper
    Cable typeRound cable
    Cable jacket materialPolyvinyl chloride (PVC)
    Shield materialAluminium
    Bending radius (min)9.8 cm
    Colour sampling4:2:0
    Nominal attenuation300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB
    CertificationRoHS, REACH, UL
    Operating temperature (T-T)-20 - 80 °C
    Storage temperature (T-T)-25 - 85 °C
    Cable diameter9.8 mm
    Connector 1 dimensions (WxDxH)21.4 x 41.44 x 12.7 mm
    Connector 2 dimensions (WxDxH)21.4 x 41.44 x 12.7 mm
    Package typePolybag
    Sustainability certificatesRoHS
    Harmonized System (HS) code84733080
    Description
    Lindy 15m Standard HDMI Cablel, Anthra Line. Cable length: 15 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, 3D, Data transfer rate: 10.2 Gbit/s, Audio Return Channel (ARC), Product colour: Black, Grey
    Description
    15 m | HDMI Type A (Standard) | Male | HDMI Type A (Standard) | Male | Product colour Black/Grey | HDMI version 2.0 | Audio Return Channel (ARC) Yes | Connector contacts plating Gold | Cable material Copper
    gross weight1.68
    data transfer rate10.2 Gbit/s
    cable length15 m
    cable materialCopper
    cable typeRound cable
    country of originCN
    product colourBlack, Grey
    operating temperature (t-t)-20 - 80 °C
    storage temperature (t-t)-25 - 85 °C
    certificationRoHS, REACH, UL
    connector 1HDMI Type A (Standard)
    connector 2HDMI Type A (Standard)
    connector 1 genderMale
    connector 2 genderMale
    harmonized system (hs) code84733080
    quantity per pack1 pc(s)
    package typePolybag
    connector contacts platingGold
    compliance certificatesRoHS
    awg wire size24
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    maximum refresh rate60 Hz
    3dYes
    supported graphics resolutions4096 x 2160
    audio return channel (arc)Yes
    supported video modes2160p
    cable diameter9.8 mm
    hdmi version2.0
    connector housing materialPolyvinyl chloride (PVC)
    connector 1 dimensions (wxdxh)21.4 x 41.44 x 12.7 mm
    connector 2 dimensions (wxdxh)21.4 x 41.44 x 12.7 mm
    connector materialGold
    nominal attenuation300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB
    contact materialPhosphor bronze
    shield materialAluminium
    bending radius (min)9.8 cm
    colour sampling4:2:0
    net weight1.63
    packaging height38.50
    packaging lenght37.40
    packaging width6.30
    warranty10
    tech data sheetshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f5/67/97/62/629767f5d0ebe20d37a65f70/36968_TDS_v1.pdf
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/9f/05/af/67/67af059f7f31e77f9304f885/CE_36966-69.pdf
    variation of36960
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/9f/05/af/67/67af059f7f31e77f9304f885/CE_36966-69.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/71/55/97/62/62975571a7fecca6d5a65f69/CE_DoC_DE_36966_36969.pdf
    Description

    Connectors

    • Connector A: HDMI® Type A Male
    • Connector B: HDMI® Type A Male
    • Housing Material: PVC
    • Connector Plating: Gold
    • Pin Construction: Phosphor Bronze
    • Pin Plating: Gold
    • Dimensions (approx.) WxDxH: 2x44x12.7mm (0.84x1.63x0.5in)

    Cable Construction

    • Length: 15m (49.21ft)
    • Standard: HDMI® Standard
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 9.8mm (0.39in)
    • Jacket Material: PVC
    • Conductor Material: Bare Copper
    • Conductor Gauge: 24AWG
    • Shielding: Aluminium Magnesium Alloy 55%

    Specifications

    • Supported Bandwidth: 10.2Gbps
    • Maximum Resolution: 4096x2160@60Hz 4:2:0 8bit
    • Nominal Attenuation:
      • 300kHz-825MHz --- 15dB
      • 825MHz-2.475GHz --- 15 - 29dB
      • 2.475GHz-4.125GHz --- 29 - 44dB
      • 4.125GHz-5.1GHz --- 44 - 48dB
    • Minimum Band Radius: 98mm (3.86in)
    • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
    • Storage Temperature: -25°C - 85°C (-13°F - 185°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, UL

    Purchasing Information

    • No.: 36968
    • EAN: 4002888369688

    This product is also available in other lengths

    • 36966 - 7.5m (24.61ft)
    • 36967 - 10m (32.81ft)
    • 36968 - 15m (49.21ft)
    • 36969 - 20m (65.62ft)



    CE Doc: CE_DoC_DE_36966_36969.pdf
    Tech Data Sheets: 36968_TDS_v1.pdf

    Specifikācija
    Īpašības HDMI
    Krāsa Pelēka
    Krāsa Zelta
    Krāsa Melna
    Vada garums (m.) 7.5 m
    Cable length15 m
    Connector 1HDMI Type A (Standard)
    Connector 2HDMI Type A (Standard)
    Connector 1 genderMale
    Connector 2 genderMale
    Product colourBlack, Grey
    Connector contacts platingGold
    Quantity per pack1 pc(s)
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    HDMI version2.0
    3DYes
    Supported graphics resolutions4096 x 2160
    Supported video modes2160p
    Audio Return Channel (ARC)Yes
    Data transfer rate10.2 Gbit/s
    Maximum refresh rate60 Hz
    AWG wire size24
    Contact materialPhosphor bronze
    Connector housing materialPolyvinyl chloride (PVC)
    Connector materialGold
    Cable materialCopper
    Cable typeRound cable
    Cable jacket materialPolyvinyl chloride (PVC)
    Shield materialAluminium
    Bending radius (min)9.8 cm
    Colour sampling4:2:0
    Nominal attenuation300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB
    CertificationRoHS, REACH, UL
    Operating temperature (T-T)-20 - 80 °C
    Storage temperature (T-T)-25 - 85 °C
    Cable diameter9.8 mm
    Connector 1 dimensions (WxDxH)21.4 x 41.44 x 12.7 mm
    Connector 2 dimensions (WxDxH)21.4 x 41.44 x 12.7 mm
    Package typePolybag
    Sustainability certificatesRoHS
    Harmonized System (HS) code84733080
    Description
    Lindy 15m Standard HDMI Cablel, Anthra Line. Cable length: 15 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, 3D, Data transfer rate: 10.2 Gbit/s, Audio Return Channel (ARC), Product colour: Black, Grey
    Description
    15 m | HDMI Type A (Standard) | Male | HDMI Type A (Standard) | Male | Product colour Black/Grey | HDMI version 2.0 | Audio Return Channel (ARC) Yes | Connector contacts plating Gold | Cable material Copper
    gross weight1.68
    data transfer rate10.2 Gbit/s
    cable length15 m
    cable materialCopper
    cable typeRound cable
    country of originCN
    product colourBlack, Grey
    operating temperature (t-t)-20 - 80 °C
    storage temperature (t-t)-25 - 85 °C
    certificationRoHS, REACH, UL
    connector 1HDMI Type A (Standard)
    connector 2HDMI Type A (Standard)
    connector 1 genderMale
    connector 2 genderMale
    harmonized system (hs) code84733080
    quantity per pack1 pc(s)
    package typePolybag
    connector contacts platingGold
    compliance certificatesRoHS
    awg wire size24
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    maximum refresh rate60 Hz
    3dYes
    supported graphics resolutions4096 x 2160
    audio return channel (arc)Yes
    supported video modes2160p
    cable diameter9.8 mm
    hdmi version2.0
    connector housing materialPolyvinyl chloride (PVC)
    connector 1 dimensions (wxdxh)21.4 x 41.44 x 12.7 mm
    connector 2 dimensions (wxdxh)21.4 x 41.44 x 12.7 mm
    connector materialGold
    nominal attenuation300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB
    contact materialPhosphor bronze
    shield materialAluminium
    bending radius (min)9.8 cm
    colour sampling4:2:0
    net weight1.63
    packaging height38.50
    packaging lenght37.40
    packaging width6.30
    warranty10
    tech data sheetshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/f5/67/97/62/629767f5d0ebe20d37a65f70/36968_TDS_v1.pdf
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/9f/05/af/67/67af059f7f31e77f9304f885/CE_36966-69.pdf
    variation of36960
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/9f/05/af/67/67af059f7f31e77f9304f885/CE_36966-69.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/71/55/97/62/62975571a7fecca6d5a65f69/CE_DoC_DE_36966_36969.pdf
    Description

    Connectors

    • Connector A: HDMI® Type A Male
    • Connector B: HDMI® Type A Male
    • Housing Material: PVC
    • Connector Plating: Gold
    • Pin Construction: Phosphor Bronze
    • Pin Plating: Gold
    • Dimensions (approx.) WxDxH: 2x44x12.7mm (0.84x1.63x0.5in)

    Cable Construction

    • Length: 15m (49.21ft)
    • Standard: HDMI® Standard
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 9.8mm (0.39in)
    • Jacket Material: PVC
    • Conductor Material: Bare Copper
    • Conductor Gauge: 24AWG
    • Shielding: Aluminium Magnesium Alloy 55%

    Specifications

    • Supported Bandwidth: 10.2Gbps
    • Maximum Resolution: 4096x2160@60Hz 4:2:0 8bit
    • Nominal Attenuation:
      • 300kHz-825MHz --- 15dB
      • 825MHz-2.475GHz --- 15 - 29dB
      • 2.475GHz-4.125GHz --- 29 - 44dB
      • 4.125GHz-5.1GHz --- 44 - 48dB
    • Minimum Band Radius: 98mm (3.86in)
    • Operating Temperature: -20°C - 80°C (-4°F - 176°F)
    • Storage Temperature: -25°C - 85°C (-13°F - 185°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, UL

    Purchasing Information

    • No.: 36968
    • EAN: 4002888369688

    This product is also available in other lengths

    • 36966 - 7.5m (24.61ft)
    • 36967 - 10m (32.81ft)
    • 36968 - 15m (49.21ft)
    • 36969 - 20m (65.62ft)



    CE Doc: CE_DoC_DE_36966_36969.pdf
    Tech Data Sheets: 36968_TDS_v1.pdf
