    Ražotājs: LINDY

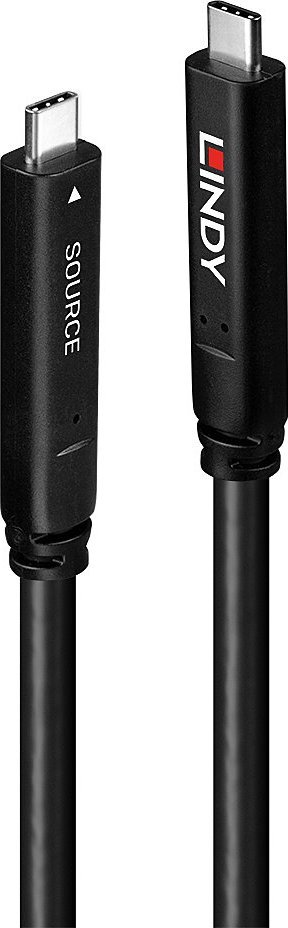

    Lindy 15m USB 3.2 10Gbps & DP 1.4 Type C Hybrid Cable (4 Lanes)


    €331,94 ar pvn

    Artikuls: ST08287243
    Preces kods: 43399
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Īpašības USB
    Krāsa Melna
    Īpašības USB Type-C
    weight610 g
    maximum data transfer rate5 Gbit/s
    cable length15 m
    country of originCN
    product colourBlack
    operating temperature (t-t)-10 - 70 °C
    storage temperature (t-t)-40 - 85 °C
    package width240 mm
    package depth240 mm
    package height65 mm
    package weight770 g
    connector 1USB C
    connector 2USB C
    connector 1 genderMale
    connector 2 genderMale
    quantity per pack1 pc(s)
    package typeBox
    compliance certificatesCE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
    manualYes
    awg wire size21
    connector shieldingYes
    connector shield materialCopper
    output voltage20 V
    usb versionUSB 3.2 Gen 1 (3.1 Gen 1)
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    maximum resolution3840 x 2160 pixels
    displayport version1.4
    usb power delivery (usb pd)Yes
    sustainability complianceYes
    cable diameter6.5 mm
    bend radius (min)10 cm
    connector housing materialPlastic
    nominal attenuation<10dB/km@850nm,<8dB/km@1300nm
    usb power delivery up to60 W
    usb type-c displayport alternate modeYes
    output current (max)3 A
    packaging height24.0
    packaging lenght24.0
    packaging width6.0
    warranty2.0
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/15/c9/5e/66/665ec9154d2459f75eaa8d17/CE_43398-99.pdf
    variation of43398.0
    Description

    Connectors

    • Connector A: USB Type C Male
    • Connector B: USB Type C Male
    • Power: PD 20V / 3A (60W)
    • Housing Material: Plastic
    • Connector Plating: Stainless Steel + Solder Nickel 50u'' min.
    • Pin Construction: Copper Alloy + Mating area Au
    • Pin Plating: Mating area: 2µ'' Au min.
    • Dimensions (approx.) WxDxH: 55x9x12.35mm (2.17x0.35x0.49in)

    Cable Construction

    • Length: 15m (49.21ft)
    • Standard: USB 3.2 / 3.1 Gen 2
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 6.5mm (0.26in)
    • Jacket Material: PVC
    • Conductor Material: -
    • Conductor Gauge: 21AWG*3 (Power)
    • Shielding: Tinned Copper

    Specifications

    • Supported Bandwidth: 10Gbps (USB 3.2 Gen 2), 32.4Gbps (DP 1.4, 4 lanes)
    • Maximum Resolution: 4K 3840x2160@144Hz
    • Nominal Attenuation: <10dB/km@850nm, <8dB/km@1300nm
    • Minimum Bend Radius: Installation:100mm; Operation: 50mm (IEC-60794-1-21)
    • Maximum Tensile Load: Installation: 350N; Operation: 200N IEC-60794-1-21
    • Operating Temperature: 5°C to 60°C (41°F - 140°F)
    • Storage Temperature: -20°C to 80°C (-4°F - 176°F)
    • Transmission Medium: Optical Fiber 62.5/125 Multimode Fiber
    • Transmission Technology: 850nm Laser Optical

    Miscellaneous

    • Packaging Type: Carton Box
    • Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
    • Net Weight: 1.2kg (2.65lb)
    • Gross Weight: 1.4kg (3.09lb)
    • Warranty (Years): 2
    • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

    Packaging Contents

    • 15m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable
    • Lindy manual

    Purchasing Information

    • No.: 43399
    • EAN: 4002888433990

    Specifikācija
    Īpašības USB
    Krāsa Melna
    Īpašības USB Type-C
    weight610 g
    maximum data transfer rate5 Gbit/s
    cable length15 m
    country of originCN
    product colourBlack
    operating temperature (t-t)-10 - 70 °C
    storage temperature (t-t)-40 - 85 °C
    package width240 mm
    package depth240 mm
    package height65 mm
    package weight770 g
    connector 1USB C
    connector 2USB C
    connector 1 genderMale
    connector 2 genderMale
    quantity per pack1 pc(s)
    package typeBox
    compliance certificatesCE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
    manualYes
    awg wire size21
    connector shieldingYes
    connector shield materialCopper
    output voltage20 V
    usb versionUSB 3.2 Gen 1 (3.1 Gen 1)
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    maximum resolution3840 x 2160 pixels
    displayport version1.4
    usb power delivery (usb pd)Yes
    sustainability complianceYes
    cable diameter6.5 mm
    bend radius (min)10 cm
    connector housing materialPlastic
    nominal attenuation<10dB/km@850nm,<8dB/km@1300nm
    usb power delivery up to60 W
    usb type-c displayport alternate modeYes
    output current (max)3 A
    packaging height24.0
    packaging lenght24.0
    packaging width6.0
    warranty2.0
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/15/c9/5e/66/665ec9154d2459f75eaa8d17/CE_43398-99.pdf
    variation of43398.0
    Description

    Connectors

    • Connector A: USB Type C Male
    • Connector B: USB Type C Male
    • Power: PD 20V / 3A (60W)
    • Housing Material: Plastic
    • Connector Plating: Stainless Steel + Solder Nickel 50u'' min.
    • Pin Construction: Copper Alloy + Mating area Au
    • Pin Plating: Mating area: 2µ'' Au min.
    • Dimensions (approx.) WxDxH: 55x9x12.35mm (2.17x0.35x0.49in)

    Cable Construction

    • Length: 15m (49.21ft)
    • Standard: USB 3.2 / 3.1 Gen 2
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 6.5mm (0.26in)
    • Jacket Material: PVC
    • Conductor Material: -
    • Conductor Gauge: 21AWG*3 (Power)
    • Shielding: Tinned Copper

    Specifications

    • Supported Bandwidth: 10Gbps (USB 3.2 Gen 2), 32.4Gbps (DP 1.4, 4 lanes)
    • Maximum Resolution: 4K 3840x2160@144Hz
    • Nominal Attenuation: <10dB/km@850nm, <8dB/km@1300nm
    • Minimum Bend Radius: Installation:100mm; Operation: 50mm (IEC-60794-1-21)
    • Maximum Tensile Load: Installation: 350N; Operation: 200N IEC-60794-1-21
    • Operating Temperature: 5°C to 60°C (41°F - 140°F)
    • Storage Temperature: -20°C to 80°C (-4°F - 176°F)
    • Transmission Medium: Optical Fiber 62.5/125 Multimode Fiber
    • Transmission Technology: 850nm Laser Optical

    Miscellaneous

    • Packaging Type: Carton Box
    • Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
    • Net Weight: 1.2kg (2.65lb)
    • Gross Weight: 1.4kg (3.09lb)
    • Warranty (Years): 2
    • Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

    Packaging Contents

    • 15m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable
    • Lindy manual

    Purchasing Information

    • No.: 43399
    • EAN: 4002888433990
