    Iepriekšējais produktsLindy 1m USB 3.2 Type A to ...
    Nākamais produktsLindy 1m USB 3.2 Type A to ...
    Ražotājs: LINDY

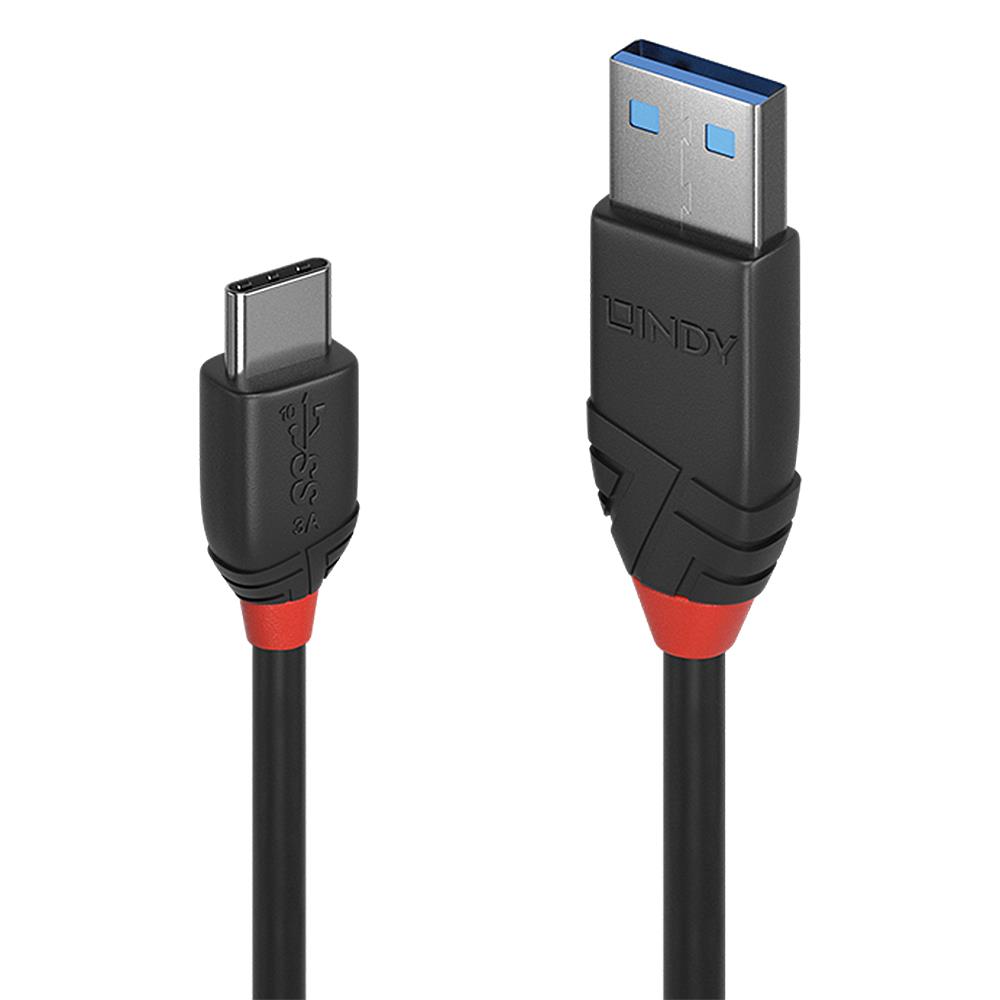

    Lindy 1m USB 3.2 Type A to C Cable 3A, Black Line


    €13,70 ar pvn

    Artikuls: ST05620799
    Preces kods: 36916
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LV
    PL
    LV

    Specifikācija
    Krāsa Zelta
    Krāsa Melna
    Īpašības USB Type-C
    Īpašības USB
    Vada garums (m.) 1 m
    Vada garums (m.) 1.1 - 1.7 m
    Vada garums (m.) 4.0 m - 4.8 m
    Cable length1 m
    USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
    Connector 1USB A
    Connector 2USB C
    Connector 1 genderMale
    Connector 2 genderMale
    Product colourBlack
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    AWG wire size26/30/30
    Connector materialNickel
    Contact materialPhosphor bronze
    Connector contacts platingGold
    Cable jacket materialPolyvinyl chloride (PVC)
    Conductor materialTinned copper
    Connector shieldingYes
    Connector shield materialAluminium
    Connector housing materialPolyvinyl chloride (PVC)
    Maximum data transfer rate10000 Mbit/s
    Cable typeRound cable
    Plug and PlayYes
    Nominal attenuation0.5Mhz €“ 15Ghz 40db
    CertificationRoHS, REACH, UL
    Cable diameter4.5 mm
    Bend radius (min)4.5 cm
    Connector 1 dimensions (WxDxH)15.5 x 35.1 x 7.8 mm
    Connector 2 dimensions (WxDxH)11 x 25.5 x 7.3 mm
    Quantity per pack1 pc(s)
    Package typePolybag
    Operating temperature (T-T)-20 - 80 °C
    Storage temperature (T-T)-25 - 85 °C
    Harmonized System (HS) code84733080
    Description
    Lindy 1m USB 3.2 Type A to C Cable 3A, Black Line. Cable length: 1 m, Connector 1: USB A, Connector 2: USB C, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 10000 Mbit/s, Connector contacts plating: Gold, Product colour: Black
    Description
    1m USB 3.2 Type A to C Cable, 10Gbps, Black Line | Cable length 1 m | Ver. USB 3.2 Gen 1 (3.1 Gen 1) | Connector 1 USB A | Connector 2 USB C | Connector 1 gender Male | Connector 2 gender Male | Cable jacket material Polyvinyl chloride (PVC) | Maximum data transfer rate 10 Gbit/s | Maximum data transfer rate 10000 Mbit/s | Colour Black | Operating temperature (T-T) -20 - 80 °C
    plug and playYes
    gross weight0.05
    maximum data transfer rate10 Gbit/s
    cable length1 m
    cable typeRound cable
    country of originCN
    product colourBlack
    operating temperature (t-t)-20 - 80 °C
    storage temperature (t-t)-25 - 85 °C
    certificationRoHS, REACH, UL
    connector 1USB A
    connector 2USB C
    connector 1 genderMale
    connector 2 genderMale
    harmonized system (hs) code84733080
    quantity per pack1 pc(s)
    package typePolybag
    connector contacts platingGold
    conductor materialTinned copper
    awg wire size26/30/30
    connector shieldingYes
    connector shield materialAluminium
    usb versionUSB 3.2 Gen 1 (3.1 Gen 1)
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    cable diameter4.5 mm
    bend radius (min)4.5 cm
    connector housing materialPolyvinyl chloride (PVC)
    connector 1 dimensions (wxdxh)15.5 x 35.1 x 7.8 mm
    connector 2 dimensions (wxdxh)11 x 25.5 x 7.3 mm
    connector materialNickel
    nominal attenuation0.5Mhz €“ 15Ghz 40db
    contact materialPhosphor bronze
    net weight0.04
    packaging height14.40
    packaging lenght13.30
    packaging width1.00
    warranty10
    variation of36914
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/8d/51/d6/68/68d6518d27269bcab1e6f818/CE_36914-17.pdf
    Description

    Connectors

    • Connector A: USB 3.2 Type A Male
    • Connector B: USB 3.2 Type C Male
    • Housing Material: PVC
    • Shielding in head shell: Copper foil
    • Connector Plating: Nickel
    • Pin Construction:
      • A: Brass
      • C: Copper
    • Pin Plating: Gold
    • Dimensions (approx.) WxDxH:
      • A: 15.5x35.1x7.8mm (0.61x1.38x0.31in)
      • C: 11.0x25.5x7.3mm (0.43x1.00x0.29in)

    Cable Construction

    • Jacket Diameter: 4.5mm (0.18in)
    • Jacket Material: PVC
    • Conductor Material: Tinned Copper
    • Conductor Gauge Power: 24AWG
    • Conductor Gauge Data. 30AWG
    • Shielding: Tinned Copper Braid 50%

    Specifications

    • Length: 1m (3.28ft)
    • Colour: Black
    • Type: Round
    • Standard: USB 3.2 Gen 2x1
    • Supported Bandwidth: 10Gbps
    • Maximum Power: 15W (5V 3A)
    • E-Mark: No
    • Maximum Resolution: -
    • Supported Protocols: USB 3.2, USB 2.0
    • Nominal Attenuation: 0.5Mhz-15Ghz < 40dB
    • Minimum Bend Radius: 45mm (1.77in)
    • Operating Temperature: 0°C - 40°C (32°F - 104°F)
    • Storage Temperature: 0°C - 70°C (32°F - 158°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, California Proposition 65 & UL (raw cable)

    Purchasing Information

    • No.: 36916
    • EAN: 4002888369169

    This product is also available in other lengths

    • 36914 - 0.15m (0.49ft)
    • 36915 - 0.5m (1.64ft)
    • 36916 - 1m (3.28ft)
    • 36917 - 1.5m (4.92ft)


    CE Doc: CE_36914-17.pdf

    Specifikācija
    Krāsa Zelta
    Krāsa Melna
    Īpašības USB Type-C
    Īpašības USB
    Vada garums (m.) 1 m
    Vada garums (m.) 1.1 - 1.7 m
    Vada garums (m.) 4.0 m - 4.8 m
    Cable length1 m
    USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
    Connector 1USB A
    Connector 2USB C
    Connector 1 genderMale
    Connector 2 genderMale
    Product colourBlack
    Connector 1 form factorStraight
    Connector 2 form factorStraight
    AWG wire size26/30/30
    Connector materialNickel
    Contact materialPhosphor bronze
    Connector contacts platingGold
    Cable jacket materialPolyvinyl chloride (PVC)
    Conductor materialTinned copper
    Connector shieldingYes
    Connector shield materialAluminium
    Connector housing materialPolyvinyl chloride (PVC)
    Maximum data transfer rate10000 Mbit/s
    Cable typeRound cable
    Plug and PlayYes
    Nominal attenuation0.5Mhz €“ 15Ghz 40db
    CertificationRoHS, REACH, UL
    Cable diameter4.5 mm
    Bend radius (min)4.5 cm
    Connector 1 dimensions (WxDxH)15.5 x 35.1 x 7.8 mm
    Connector 2 dimensions (WxDxH)11 x 25.5 x 7.3 mm
    Quantity per pack1 pc(s)
    Package typePolybag
    Operating temperature (T-T)-20 - 80 °C
    Storage temperature (T-T)-25 - 85 °C
    Harmonized System (HS) code84733080
    Description
    Lindy 1m USB 3.2 Type A to C Cable 3A, Black Line. Cable length: 1 m, Connector 1: USB A, Connector 2: USB C, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 10000 Mbit/s, Connector contacts plating: Gold, Product colour: Black
    Description
    1m USB 3.2 Type A to C Cable, 10Gbps, Black Line | Cable length 1 m | Ver. USB 3.2 Gen 1 (3.1 Gen 1) | Connector 1 USB A | Connector 2 USB C | Connector 1 gender Male | Connector 2 gender Male | Cable jacket material Polyvinyl chloride (PVC) | Maximum data transfer rate 10 Gbit/s | Maximum data transfer rate 10000 Mbit/s | Colour Black | Operating temperature (T-T) -20 - 80 °C
    plug and playYes
    gross weight0.05
    maximum data transfer rate10 Gbit/s
    cable length1 m
    cable typeRound cable
    country of originCN
    product colourBlack
    operating temperature (t-t)-20 - 80 °C
    storage temperature (t-t)-25 - 85 °C
    certificationRoHS, REACH, UL
    connector 1USB A
    connector 2USB C
    connector 1 genderMale
    connector 2 genderMale
    harmonized system (hs) code84733080
    quantity per pack1 pc(s)
    package typePolybag
    connector contacts platingGold
    conductor materialTinned copper
    awg wire size26/30/30
    connector shieldingYes
    connector shield materialAluminium
    usb versionUSB 3.2 Gen 1 (3.1 Gen 1)
    connector 1 form factorStraight
    connector 2 form factorStraight
    cable jacket materialPolyvinyl chloride (PVC)
    cable diameter4.5 mm
    bend radius (min)4.5 cm
    connector housing materialPolyvinyl chloride (PVC)
    connector 1 dimensions (wxdxh)15.5 x 35.1 x 7.8 mm
    connector 2 dimensions (wxdxh)11 x 25.5 x 7.3 mm
    connector materialNickel
    nominal attenuation0.5Mhz €“ 15Ghz 40db
    contact materialPhosphor bronze
    net weight0.04
    packaging height14.40
    packaging lenght13.30
    packaging width1.00
    warranty10
    variation of36914
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/8d/51/d6/68/68d6518d27269bcab1e6f818/CE_36914-17.pdf
    Description

    Connectors

    • Connector A: USB 3.2 Type A Male
    • Connector B: USB 3.2 Type C Male
    • Housing Material: PVC
    • Shielding in head shell: Copper foil
    • Connector Plating: Nickel
    • Pin Construction:
      • A: Brass
      • C: Copper
    • Pin Plating: Gold
    • Dimensions (approx.) WxDxH:
      • A: 15.5x35.1x7.8mm (0.61x1.38x0.31in)
      • C: 11.0x25.5x7.3mm (0.43x1.00x0.29in)

    Cable Construction

    • Jacket Diameter: 4.5mm (0.18in)
    • Jacket Material: PVC
    • Conductor Material: Tinned Copper
    • Conductor Gauge Power: 24AWG
    • Conductor Gauge Data. 30AWG
    • Shielding: Tinned Copper Braid 50%

    Specifications

    • Length: 1m (3.28ft)
    • Colour: Black
    • Type: Round
    • Standard: USB 3.2 Gen 2x1
    • Supported Bandwidth: 10Gbps
    • Maximum Power: 15W (5V 3A)
    • E-Mark: No
    • Maximum Resolution: -
    • Supported Protocols: USB 3.2, USB 2.0
    • Nominal Attenuation: 0.5Mhz-15Ghz < 40dB
    • Minimum Bend Radius: 45mm (1.77in)
    • Operating Temperature: 0°C - 40°C (32°F - 104°F)
    • Storage Temperature: 0°C - 70°C (32°F - 158°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH, California Proposition 65 & UL (raw cable)

    Purchasing Information

    • No.: 36916
    • EAN: 4002888369169

    This product is also available in other lengths

    • 36914 - 0.15m (0.49ft)
    • 36915 - 0.5m (1.64ft)
    • 36916 - 1m (3.28ft)
    • 36917 - 1.5m (4.92ft)


    CE Doc: CE_36914-17.pdf
