    Iepriekšējais produktsLindy 20m Active HDMI 2.0 1...
    Nākamais produktsLindy 20m Cat.6 S/FTP Cable...
    Ražotājs: LINDY

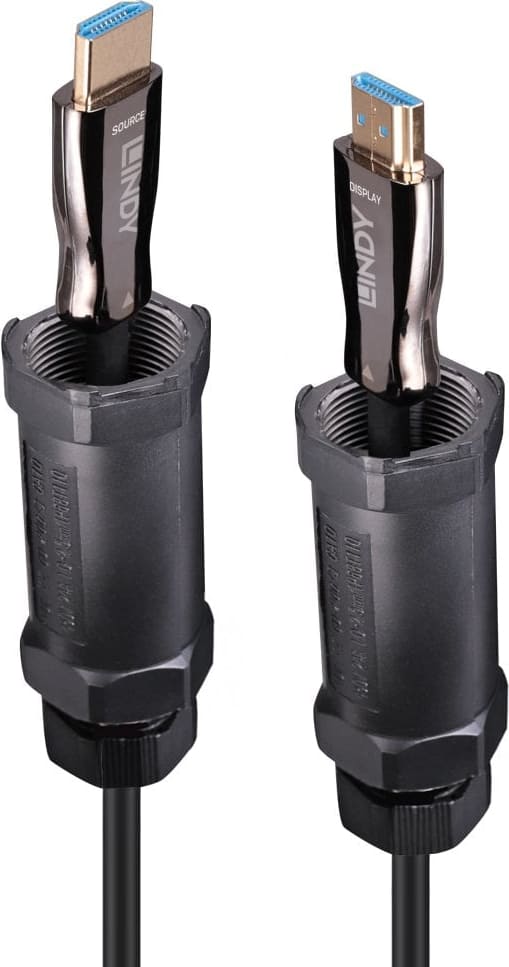

    Lindy 20m Armoured Fibre Optic Hybrid HDMI 8K60 Cable


    €172,41 ar pvn

    Artikuls: ST09629048
    Preces kods: 38529
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Īpašības HDMI
    Krāsa Melna
    Krāsa Zelta
    gross weight1.30
    data transfer rate48 Gbit/s
    cable length20 m
    cable materialFibre optic/Copper
    cable typeRound cable
    country of originCN
    product colourBlack
    operating temperature (t-t)-10 - 60 °C
    storage temperature (t-t)-20 - 70 °C
    connector 1HDMI Type A (Standard)
    connector 2HDMI Type A (Standard)
    connector 1 genderMale
    connector 2 genderMale
    quantity per pack1 pc(s)
    package typeBox
    connector contacts platingGold
    awg wire size32
    connector 1 form factorStraight
    connector 2 form factorStraight
    magnetically shieldedYes
    cable jacket materialThermoplastic elastomer (TPE)
    maximum refresh rate120 Hz
    supported graphics resolutions3840 x 2160, 7680 x 4320
    cable diameter6 mm
    hdmi version2.1
    connector 1 dimensions (wxdxh)18.3 x 38 x 8.3 mm
    connector 2 dimensions (wxdxh)18.3 x 38 x 8.3 mm
    connector materialZinc alloy
    shield materialAluminium
    bending radius (min)2 cm
    net weight1.11
    packaging height8.50
    packaging lenght21.20
    packaging width21.20
    warranty2
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/a3/c9/c0/65/65c0c9a3aab9dc9353741eb9/CE_38527-33.pdf
    variation of38530
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/a3/c9/c0/65/65c0c9a3aab9dc9353741eb9/CE_38527-33.pdf
    Description
    Connectors
    • Connector A: HDMI® Type A (Male)
    • Connector B: HDMI® Type A (Male)
    • Housing Material: Zinc Alloy
    • Connector Plating: Gold Plated
    • Pin Construction: Gold Plated
    • Pin Plating: Gold Plated
    • Dimensions (approx.) WxDxH HDMI® Connector: 18.3x38x8.3mm (0.72x1.50x0.33in)
    Cable Construction
    • Length: 20m (65.62ft)
    • Standard: 2.1
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 6mm (0.24in)
    • Jacket Material: TPE
    • Conductor Material: Fiber and Copper
    • Conductor Gauge: 32AWG
    • Shielding: AL-Foil + Spiral steel armour
    Specifications
    • Supported Bandwidth: 48Gbps
    • Maximum Resolution: 7680x4320@60Hz 4:2:0 10bit, 3840x2160@120Hz 4:4:4 10bit
    • Nominal Attenuation: 0.452dB/km
    • Minimum Bend Radius: 20mm (0.79in)
    • Operating Temperature: -10°C - 60°C (14°F - 140°F)
    • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
    Miscellaneous
    • Packaging Type: Carton Box
    • Warranty (Years): 2
    • Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
    Purchasing Information
    • No.: 38529
    • EAN: 4002888385299
    This product is also available in other lengths:
    • 38527 - 10m (32.81ft)
    • 38528 - 15m (49.21ft)
    • 38529 - 20m (65.62ft)
    • 38530 - 30m (98.42ft)
    • 38531 - 50m (164.04ft)
    • 38532 - 70m (229.66ft)
    • 38533 - 100m (328.08ft)


    CE Doc: CE_38527-33.pdf

    Specifikācija
    Īpašības HDMI
    Krāsa Melna
    Krāsa Zelta
    gross weight1.30
    data transfer rate48 Gbit/s
    cable length20 m
    cable materialFibre optic/Copper
    cable typeRound cable
    country of originCN
    product colourBlack
    operating temperature (t-t)-10 - 60 °C
    storage temperature (t-t)-20 - 70 °C
    connector 1HDMI Type A (Standard)
    connector 2HDMI Type A (Standard)
    connector 1 genderMale
    connector 2 genderMale
    quantity per pack1 pc(s)
    package typeBox
    connector contacts platingGold
    awg wire size32
    connector 1 form factorStraight
    connector 2 form factorStraight
    magnetically shieldedYes
    cable jacket materialThermoplastic elastomer (TPE)
    maximum refresh rate120 Hz
    supported graphics resolutions3840 x 2160, 7680 x 4320
    cable diameter6 mm
    hdmi version2.1
    connector 1 dimensions (wxdxh)18.3 x 38 x 8.3 mm
    connector 2 dimensions (wxdxh)18.3 x 38 x 8.3 mm
    connector materialZinc alloy
    shield materialAluminium
    bending radius (min)2 cm
    net weight1.11
    packaging height8.50
    packaging lenght21.20
    packaging width21.20
    warranty2
    ce dochttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/a3/c9/c0/65/65c0c9a3aab9dc9353741eb9/CE_38527-33.pdf
    variation of38530
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/a3/c9/c0/65/65c0c9a3aab9dc9353741eb9/CE_38527-33.pdf
    Description
    Connectors
    • Connector A: HDMI® Type A (Male)
    • Connector B: HDMI® Type A (Male)
    • Housing Material: Zinc Alloy
    • Connector Plating: Gold Plated
    • Pin Construction: Gold Plated
    • Pin Plating: Gold Plated
    • Dimensions (approx.) WxDxH HDMI® Connector: 18.3x38x8.3mm (0.72x1.50x0.33in)
    Cable Construction
    • Length: 20m (65.62ft)
    • Standard: 2.1
    • Colour: Black
    • Type: Round
    • Jacket Diameter: 6mm (0.24in)
    • Jacket Material: TPE
    • Conductor Material: Fiber and Copper
    • Conductor Gauge: 32AWG
    • Shielding: AL-Foil + Spiral steel armour
    Specifications
    • Supported Bandwidth: 48Gbps
    • Maximum Resolution: 7680x4320@60Hz 4:2:0 10bit, 3840x2160@120Hz 4:4:4 10bit
    • Nominal Attenuation: 0.452dB/km
    • Minimum Bend Radius: 20mm (0.79in)
    • Operating Temperature: -10°C - 60°C (14°F - 140°F)
    • Storage Temperature: -20°C - 70°C (-4°F - 158°F)
    Miscellaneous
    • Packaging Type: Carton Box
    • Warranty (Years): 2
    • Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
    Purchasing Information
    • No.: 38529
    • EAN: 4002888385299
    This product is also available in other lengths:
    • 38527 - 10m (32.81ft)
    • 38528 - 15m (49.21ft)
    • 38529 - 20m (65.62ft)
    • 38530 - 30m (98.42ft)
    • 38531 - 50m (164.04ft)
    • 38532 - 70m (229.66ft)
    • 38533 - 100m (328.08ft)


    CE Doc: CE_38527-33.pdf
