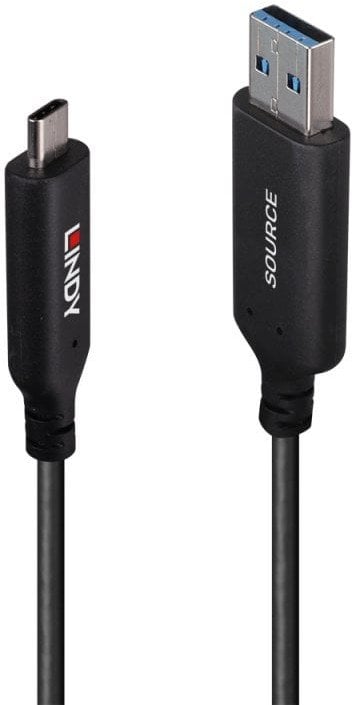

CABLE USB3.2 TYPE A TO C 25M/43396 LINDY

Connectors

• Connector A: USB Type A Male
• Connector B: USB Type C Male
• Power Consumption: 1.5W
• Housing Material: PVC
• Connector Plating: Nickel, Stainless Steel (Type C), SPCC + Nickel (Type A)
• Pin Construction: Copper Alloy + Mating Area Au
• Pin Plating: Gold Flash (Type C), Copper Alloy (Type A)
• Dimensions (approx.) WxDxH:
  • Type A: 47.5x8.2x18.5mm (1.87x0.32x0.73in)
  • Type C: 45x8.2x14.5mm (1.77x0.32x0.57in)

Cable Construction

• Length: 25m (82ft)
• Standard: USB 3.2 / 3.1 Gen 1
• Colour: Black
• Type: Round
• Jacket Diameter: 4.9mm (0.19in)
• Jacket Material: TPE
• Conductor Material: Bare Copper & Tinned Copper
• Conductor Gauge: 24/28/30AWG
• Shielding: AL Foil and Copper Braid

Specifications

• Supported Bandwidth: 5Gbps
• Nominal Attenuation: -

• Minimum Bend Radius: Dynamic/Static: 25mm/12.5mm
• Maximum Tensile Load: Long Term/Short Term: 100N/200N
• Operating Temperature: -20°C to 70°C (-4°F - 158°F)
• Storage Temperature: -30°C to 75°C (-22°F - 167°F)
• Transmission Medium: USB 3.0 Fiber & USB 2.0 Copper Wire
• Transmission Technology: Optical/Electrical

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
• Net Weight: 1kg (2.2lb)
• Gross Weight: 1.18kg (2.6lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65

Packaging Contents

• 25m USB 3.2 Gen 1 Type A to C Hybrid Cable

• Lindy manual

Purchasing Information

• No.: 43396
• EAN: 4002888433969

This product is also available in other lengths

• 43395 - 10m (32.81ft)
• 43396 - 25m (82.02ft)
• 43397 - 50m (164.04ft)
