Ražotājs: LINDY

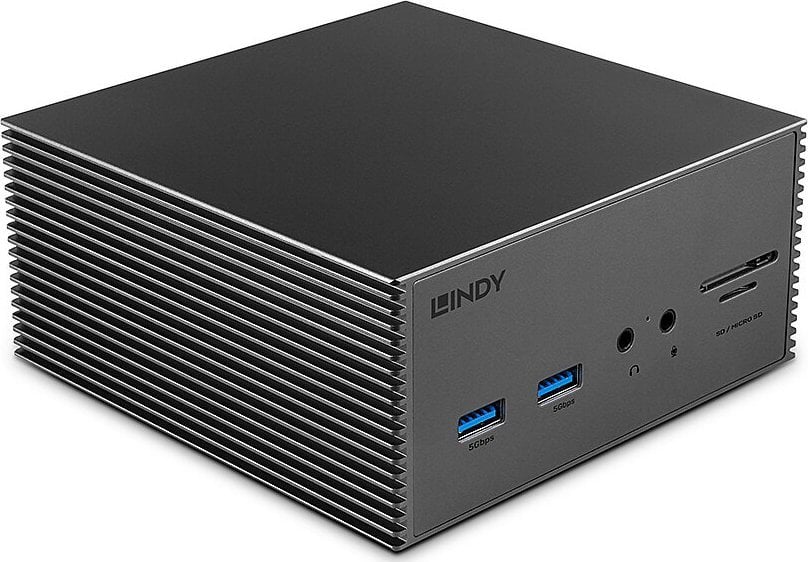

I/O DOCKING STATION USB-C/DST-PRO 101 43378 LINDY

€194,57 ar pvn

Artikuls: ST07978917

Preces kods: 43378

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

Noliktava	Piegāde	Daudzums	Cena
LV	7 - 12 dienās	1	€194,57 ar pvn
LV	2 - 4 dienās	2	€199,92 ar pvn
PL	8 - 15 dienās	18	€244,61 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2
Specifikācija 3

Īpašības	USB
Īpašības	USB Type-C
Krāsa	Pelēka

Description
	Product Type Docking station \| Colour Dark Grey \| Power supply requirements 25W \| Dimensions 122x55x122mm \| Weight 0.5 kg

plug and play

Yes

hdcp

Yes

weight

500 g

gross weight

1.70

height

55 mm

width

122 mm

depth

122 mm

data transfer rate

5 Gbit/s

country of origin

product colour

Grey

operating temperature (t-t)

0 - 40 °C

storage temperature (t-t)

-20 - 60 °C

operating relative humidity (h-h)

5 - 90%

storage relative humidity (h-h)

5 - 90%

package width

450 mm

package depth

340 mm

package height

345 mm

package weight

1.73 kg

windows operating systems supported

Yes

mac operating systems supported

Yes

quantity per pack

1 pc(s)

compliance certificates

CE, Federal Communications Commission (FCC), REACH, RoHS

manual

Yes

ethernet lan data rates

10,100 Mbit/s

housing material

Aluminium

connectivity technology

Wired

ethernet lan (rj-45) ports

dc-in jack

Yes

ac adapter included

Yes

host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

usb 2.0 ports quantity

cables included

AC, USB Type-C

number of displays supported

linux operating systems supported

Yes

power source type

usb power delivery (usb pd)

Yes

power consumption (typical)

25 W

wake-on-lan ready

Yes

sustainability compliance

Yes

usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity

ethernet lan

Yes

card reader integrated

Yes

compatible memory cards

MicroSD (TransFlash), SD

headphone outputs

hdmi ports quantity

microphone in

Yes

hd type

4K Ultra HD

maximum digital resolution

3840 x 2160 pixels

mobile operating systems supported

Yes

hdcp version

2.2

displayports quantity

usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity

net weight

1.52

usb power delivery revision

3.0

usb type-c displayport alternate mode

Yes

packaging height

15.00

packaging lenght

21.00

packaging width

15.60

warranty

tech data sheets

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/ce/18/dd/63/63dd18ce03648fd59000550d/43378_TDS_v1.pdf

ce docs

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/e8/26/88/64/648826e822f260c1a28aa517/CE_43378.pdf

manuals

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/10/2e/7d/66/667d2e109dd772ff9f0717e3/LINDY_43378_MAN_0624.pdf

Description

Specifications

Interface: USB Type C to 3x USB 3.0 Type A / 2x USB 2.0 Type A / 1x USB Type C / 1x RJ45 / 1x DisplayPort / 2x HDMI® / 1x SD & 1x MicroSD/TF 3.0 (Dual Disk) / 2x 3.5mm Audio (1x In, 1x Out)
Supported Bandwidth: DP 1.1 with 10.8Gbps, HDMI® 2.0 with 48Gbps, USB 3.2 / 3.1 Gen 1 / USB 3.0 (5Gbps), Gigabit LAN (10/100/100Mbps)
Maximum Input Resolution: 3840x2160@60Hz
Maximum Output Resolution:
- Single Display: 3840x2160 60Hz
- Dual Displays: 2560x1440 60Hz
- Triple Displays: 1920x1080 60Hz
Chipset: VL103R, VMM5310B, 2x VL817, FE8.1, VL171, RTL8153B, 3S1530, AU84612, IP2712
Compatibility: USB Type C / Thunderbolt equipped computers with DisplayPort 1.4 and DisplayPort Alternate Mode support. Windows, macOS, Linux, Android, Chrome OS.
Power Delivery: PD 3.0
HDCP Support: HDCP 2.2
Supported Audio: Supports Audio Stereo
Separate Audio Ports: 2 x Audio 3.5mm (1x Mic)
Special Features: DisplayPort Alternate Mode, Supports MST for Windows, PXE (Preboot Execution Environment) and wake on LAN (WOL) support, Supports MAC Address pass through (this feature is dependent upon the compatibility of the hardware used in each set up)

Connectors

Inputs: 1 x USB Type C (Female)
Outputs: 3 x USB 3.0 Type A (Female), 1x USB 3.0 Type C (Female), 2 x USB 2.0 Type A (Female), 1 x RJ45 (Female), 2 x HDMI® (Female), 1 x DisplayPort (Female), 1 x SD (Female), 1 x MicroSD (Female), 2x 3.5mm Audio (Female)
Power: 5.5/2.1mm DC socket

Physical Properties

Dimensions WxDxH: 122x55x122mm (4.8x2.17x4.8in)
Housing Material: Aluminium
Net Weight: 0.5kg (1.1lb)
Operating Temperature: 0° - 40°C (32°F - 104°F)
Storage Temperature: -20°C - 60°C (-4°F - 140°F)
Humidity: 5 - 90% RH (non-condensing)
Power Requirements (for Docking Station operation) : 25W
Colour: Dark Grey

Miscellaneous

Packaging Type: Carton Box
Packaging Dimensions: 210x156x150mm (8.27x6.14x5.91in)
Gross Weight: 1.73kg (3.8lb)
Warranty (Years): 2
Product Compliance: CE, FCC, REACH & RoHS, CP65

Package Contents

USB-C Laptop Docking Station
0.9m USB 3.2 Gen 1 Type C Male to Male cable
IEC C14 Power Supply 20V 5A
4x Mains Cable IEC C13 (Schuko, UK, US, AUS)
Lindy Manual

Purchasing Information

No.: 43378
EAN: 4002888433785

CE Doc: CE_43378.pdf
Tech Data Sheets: 43378_TDS_v1.pdf
Manuals: LINDY_43378_MAN_0624.pdf
