    Ražotājs: LINDY

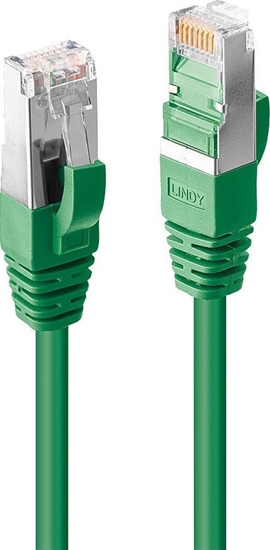

    Lindy 5m Cat.6A S/FTP LSZH Cable, Green


    €16,09 ar pvn

    Artikuls: ST08518985
    Preces kods: 47681
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    Krāsa Zaļa
    Īpašības RJ-45
    Krāsa Zelta
    Vada garums (m.) 1.1 - 1.7 m
    Vada garums (m.) 7.5 m
    cable shieldingS/FTP (S-STP)
    gross weight0.19
    height8.3 mm
    width11.6 mm
    depth21.5 mm
    cable length5 m
    frequency500 MHz
    country of originCN
    product colourGreen
    operating temperature (t-t)-10 - 60 °C
    storage temperature (t-t)-20 - 75 °C
    connector 1RJ-45
    connector 2RJ-45
    connector 1 genderMale
    connector 2 genderMale
    package typePolybag
    cable standardCat6a
    connector contacts platingGold
    compliance certificatesREACH, RoHS
    jacket materialLow smoke zero halogen (LSZH)
    conductor materialCopper
    awg wire size27
    connector shieldingYes
    connector shield materialAluminium
    cable shapeRound
    cabling technology10GBase-T
    connector 1 form factorStraight
    connector 2 form factorStraight
    sustainability complianceYes
    doesn't containHalogen
    outer diameter6 mm
    connector housing materialPolycarbonate (PC)
    net weight0.17
    packaging height25.90
    packaging lenght23.60
    packaging width2.00
    warranty10
    variation of47675
    ce docshttps://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/e2/0d/24/64/64240de24149a96164be0981/CE_47675-86.pdf
    Description

    Connectors

    • Connector A: RJ45 Male
    • Connector B: RJ45 Male
    • Housing Material: Polycarbonate
    • Connector Plating: Nickel
    • Pin Construction: Brass
    • Pin Plating: Gold plated
    • Dimensions (approx.) WxDxH: 11.6x21.5x8.3mm (0.46x0.85x0.33in)

    Cable Construction

    • Length: 5m (16.44ft)
    • Colour: Green
    • Type: Cat.6A
    • Jacket Diameter: 6.0mm (0.24in)
    • Jacket Material: LSZH
    • Conductor Material: Copper
    • Conductor Gauge: 27AWG
    • Shielding: Aluminium Braid

    Specifications

    • Supported Bandwidth: 500MHz
    • Nominal Attenuation: 49.3dB/100m @ 500MHz
    • Minimum Bend Radius: 72mm (2.84in)
    • Operating Temperature: -10°C - 60°C (14F - 140°F)
    • Storage Temperature: -20°C - 75°C (-4F - 167°F)

    Miscellaneous

    • Packaging Type: Polybag
    • Warranty (Years): 10
    • Product Compliance: RoHS, REACH

    Purchasing Information

    • No.: 47681
    • EAN: 4002888476812

    This product is also available in other lengths:

    • 47675 - 0.3m (0.98ft)
    • 47676 - 0.5m (1.64ft)
    • 47677 - 1m (3.28ft)
    • 47678 - 1.5m (4.92ft)
    • 47679 - 2m (6.56ft)
    • 47680 - 3m (9.84ft)
    • 47681 - 5m (16.44ft)
    • 47682 - 7.5m (24.61ft)
    • 47683 - 10m (32.81ft)
    • 47684 - 15m (49.21ft)
    • 47685 - 20m (65.62ft)
    • 47686 - 30m (98.43ft)


    CE Doc: CE_47675-86.pdf
