Display diagonal | 68.3 cm (26.9") |
Display resolution | 3840 x 2160 pixels |
Native aspect ratio | 16:9 |
Panel type | IPS |
HD type | 4K Ultra HD |
Display technology | LED |
Screen shape | Flat |
Contrast ratio (typical) | 1000:1 |
Display number of colours | 1.07 billion colours |
Display brightness (typical) | 350 cd/m² |
Response time | 10 ms |
Backlight type | LED |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Pixel pitch | 0.155 x 0.155 mm |
Pixel density | 164 ppi |
Viewable size, horizontal | 59.6 cm |
Viewable size, vertical | 2.16 m |
Digital horizontal frequency | 25 - 137 kHz |
Digital vertical frequency | 23 - 61 Hz |
Display diagonal (metric) | 68.4 cm |
RGB colour space | Adobe RGB |
Adobe RGB coverage | 99% |
NVIDIA G-SYNC | N |
AMD FreeSync | N |
Market positioning | Graphics design |
Product colour | Black |
Certification | CB, CE, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics |
Built-in USB hub | Y |
HDMI | Y |
USB hub version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
USB upstream port type | USB Type-B, USB Type-C |
Number of upstream ports | 2 |
Number of USB Type-B upstream ports quantity | 1 |
Number of USB Type-C upstream ports quantity | 1 |
USB Type-A downstream ports quantity | 4 |
USB Type-C DisplayPort Alternate Mode | Y |
USB Power Delivery up to | 60 W |
DisplayPorts quantity | 1 |
VESA mounting | Y |
Cable lock slot | Y |
Height adjustment | Y |
Panel mounting interface | 100 x 100 mm |
Cable lock slot type | Kensington |
Height adjustment | 15.5 cm |
Pivot | Y |
Pivot angle | -90 - 90° |
Swivelling | Y |
Swivel angle range | 0 - 344° |
Tiltable | Y |
Tilt angle range | -5 - 35° |
On Screen Display (OSD) | Y |
Power consumption (typical) | 36 W |
Power consumption (standby) | 1 W |
Power consumption (max) | 168 W |
Power consumption (PowerSave) | 1 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Operating temperature (T-T) | 0 - 35 °C |
Operating relative humidity (H-H) | 20 - 80% |
Width (with stand) | 638 mm |
Depth (with stand) | 265 mm |
Height (with stand) | 404.1 mm |
Weight (with stand) | 10.3 kg |
Width (without stand) | 63.8 cm |
Depth (without stand) | 7.5 cm |
Height (without stand) | 37.8 cm |
Weight (without stand) | 6.7 kg |
Cables included | AC, USB |
Quick start guide | Y |
Description |

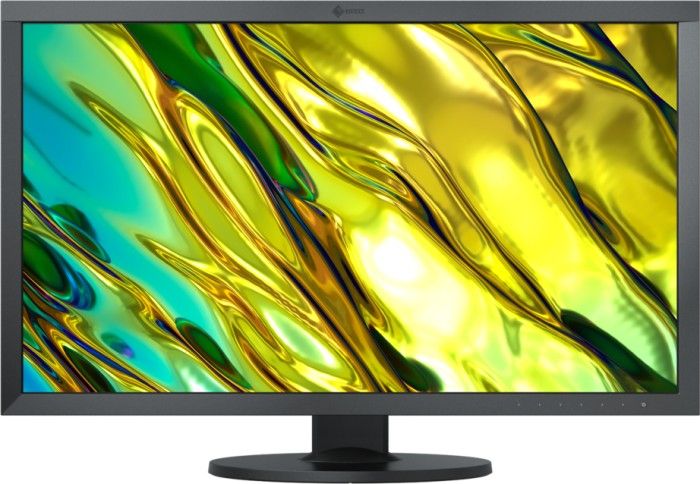

EIZO ColorEdge CS2740-BK. Display diagonal: 68.3 cm (26.9"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LED, Response time: 10 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black |
