    Ražotājs: MSI

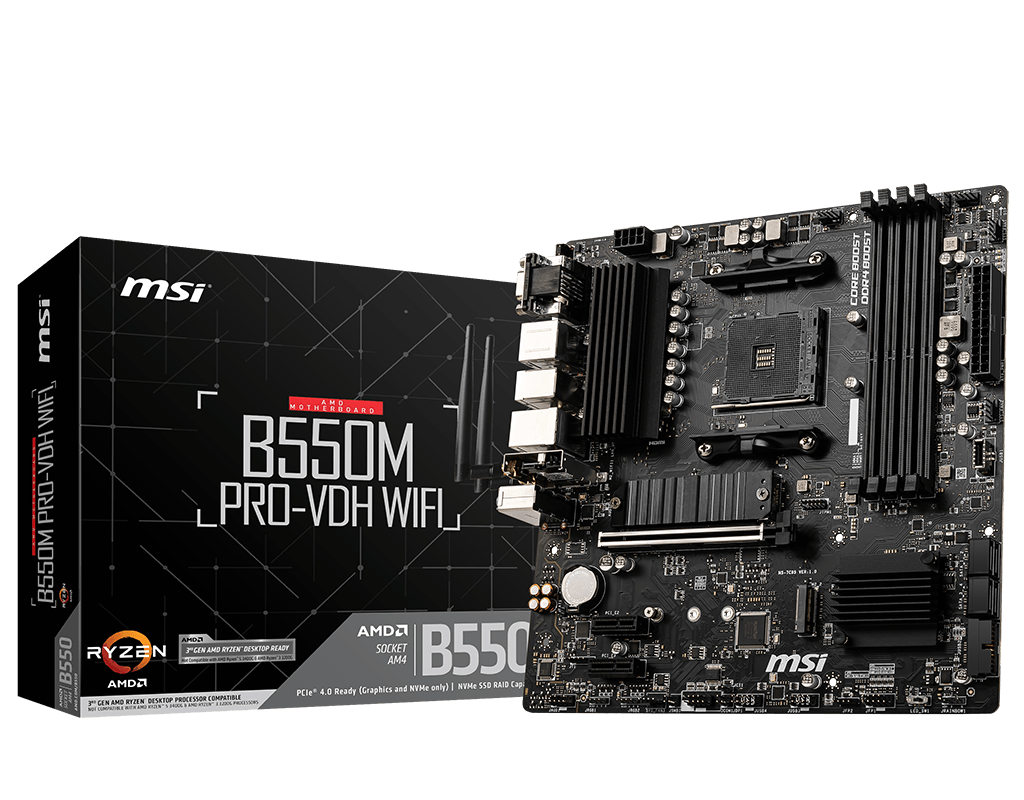

    MSI B550M PRO-VDH WIFI motherboard AMD B550 Socket AM4 micro ATX


    €115,78 ar pvn

    Artikuls: ST04409243
    Preces kods: B550M PRO-VDH WIFI
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV
    PL
    LV

    Specifikācija
    Video interfeiss HDMI
    Video interfeiss DisplayPort
    Video interfeiss D-Sub
    Atmiņas tips DDR4
    Plates izmērs (Form Factor) mATX
    CPU ligzda Socket AM4
    Plates izmērs (Form Factor) ATX
    Model

    B550M PRO-VDH WIFI

    CPU socketSocket AM4
    Processor familyAMD Ryzen 3
    Chipset manufacturerAMD
    Chipset type

    AMD B550

    Memory type DDR4
    Number of DDR4 slots4
    Memory bus frequency1866 MHz
    Memory bus frequency4133 MHz
    Memory bus frequency4400 MHz
    Memory bus frequency2400 MHz
    Memory bus frequency3200 MHz
    Memory bus frequency4266 MHz
    Memory bus frequency2800 MHz
    Memory bus frequency4000 MHz
    Memory bus frequency2667 MHz
    Memory bus frequency3866 MHz
    Memory bus frequency3733 MHz
    Memory bus frequency3000 MHz
    Memory bus frequency3466 MHz
    Memory bus frequency3600 MHz
    Memory bus frequency3066 MHz
    Memory bus frequency2933 MHz
    Memory bus frequency2133 MHz
    Max memory size 128 (GigaBajt)
    Expansion slots2 x PCIe 3.0 x 1
    Expansion slots1 x PCIe 3.0 x 16
    Expansion slots2 x M.2
    Max. number of SATA devices 4
    RAIDYes
    Detailed data on disk/drive interfaces
    • 4x porty SATA 6 Gb / s
    • 2x gniazda M.2 (klucz M),
    • Gniazdo M2_1 (z procesora AMD), Obsługuje PCIe 4.0 / 3.0 x4 1, Obsługuje SATA 6 Gb / s, Obsługuje urządzenia pamięci masowej 2242/2260/2280
    • Gniazdo M2_2 (z mikroukładu AMD B550), Obsługuje PCIe 3.0x4, Obsługuje urządzenia pamięci masowej 2242/2260/2280
    Graphics
    • 1x port VGA, obsługuje rozdzielczość 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz1
    • 1x DisplayPort, obsługuje maksymalną rozdzielczość 4096 x 2160 przy 60 Hz1
    • 1x port HDMI, obsługuje maksymalną rozdzielczość 4096 x 2160 @ 24 Hz1
    • Maksymalna pamięć współdzielona 16 GB
    Sound card

    Kodek Realtek ALC892

    Network interfaceBluetooth
    Network interface1 x 10/100/1000 Mbit/s
    Network interfaceWi-Fi 802.11a/b/g/n/ac
    Network interface

    Realtek 8111HN Gigabit LAN

    USB ports at back panel6
    USB ports on motherboard7
    Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports7
    Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports0
    FireWire (IEEE 1394)No
    COM connector / portNo
    LPT connector / portNo
    External connectors1 x D-Sub
    External connectors1 x DisplayPort
    External connectors1 x USB 3.1 Type-C
    External connectors1 x USB 3.1
    External connectors4 x USB 3.0
    External connectors1 x MIC
    External connectors1 x RJ-45
    External connectors2 x USB 2.0
    External connectors1 x HDMI
    External connectors1 x Line In
    External connectors1 x Line Out
    External connectors1 x PS/2 Keyboard/MouseCombo
    Onboard connectors1 x 8pin 12V power
    Onboard connectors1 x Chassis intrusion header
    Onboard connectors3 x 4pin Chassis fan
    Onboard connectors1 x 4pin CPU fan
    Onboard connectors1 x USB 3.1
    Onboard connectors1 x TPM header
    Onboard connectors1 x 24pin ATX zasilanie
    Onboard connectors2 x M.2
    Onboard connectors2 x USB 2.0/1.1 header
    Onboard connectors1 x USB 3.0 header
    Onboard connectors4 x SATA III 6Gb/s
    Form factormicro ATX
    Dimensions

    24.4 cm x 24.4 cm

    Supported operating systemsWindows 10
    Width560
    Height300
    Depth35
    Weight1200
    Processor manufacturerAMD
    Processor socketSocket AM4
    Compatible processor series3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
    Maximum number of SMP processors1
    Supported memory typesDDR4-SDRAM
    Number of memory slots4
    Maximum internal memory128 GB
    Memory slots typeDIMM
    Memory channelsDual-channel
    ECCY
    Non-ECCY
    Supported memory clock speeds1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400 MHz
    Unbuffered memoryY
    Supported storage drive interfacesSATA III
    Supported storage drive typesHDD & SSD
    RAID levels0, 1, 10
    Parallel processing technology supportNot supported
    Maximum graphics card memory16000 MB
    Maximum resolution4096 x 2160 pixels
    USB 2.0 connectors2
    USB 3.2 Gen 1 (3.1 Gen 1) connectors1
    Number of SATA III connectors4
    ATX Power connector (24-pin)Y
    CPU fan connectorY
    Number of chassis fan connectors3
    Serial port headers1
    12V power connectorY
    RGB LED pin headerY
    USB 2.0 ports quantity2
    USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
    Ethernet LAN (RJ-45) ports1
    VGA (D-Sub) ports quantity1
    HDMI ports quantity1
    PS/2 ports quantity1
    DisplayPorts quantity1
    WiFi-AP antenna jack2
    Wi-FiY
    Ethernet LANY
    Ethernet interface typeGigabit Ethernet
    LAN controllerRealtek 8111HN
    Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
    BluetoothY
    Bluetooth version4.2
    Component forPC
    Motherboard form factormicro ATX
    Motherboard chipset familyAMD
    Motherboard chipsetAMD B550
    Audio output channels7.1 channels
    Audio chipRealtek ALC892
    Number of mounting holes8
    PCI Express x1 (Gen 3.x) slots2
    PCI Express x16 (Gen 4.x) slots1
    Number of M.2 (M) slots2
    Clear CMOS jumperY
    Harmonized System (HS) code84733020
    Width244 mm
    Depth244 mm
    Height65 mm
    Cables includedSATA
    Drivers includedY
    Weight1 kg
    Description
    MSI B550M PRO-VDH WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum graphics card memory: 16000 MB, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111HN, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
    DescriptionMSI B550M PRO-VDH WIFI ATX MB AM4 DDR4
    VatTypeVAT
    Weight1.115000000
    Height67.000000000
    Width276.000000000
    Length283.000000000
    Description
    MSI B550M PRO-VDH WIFI ATX MB AMD AM4 DDR4 up to 128GB 1xPCIe 3.0 x16 slot 4xSATA 6Gb/s 1xM.2 slot
    Gross depth (mm)280
    Gross height (mm)270
    Gross weight1.1
    Gross width (mm)65
    Net weight0.78
    Packing quantity10
    Paper/Pasteboard300.00
    Plastic (No PET)20.00
    Tare weight (kg)0.32
    Volume (m3)0.004914
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    Embeeded batteryYes
    WEEE taxNo
    PET2.00
    TI weight (kg)0.03
    Memory slots4
    Compatible processor seriesSupports 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update
    Processor familyAMD
    Motherboard form factorMicro ATX
    Supported memory typesDDR4
    Processor socketAM4
    ChipsetAMD B
    Warranty36
    Producer product nameB550M PRO-VDH WIFI
    Other featuresAn enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
    Gross depth master carton560
    Gross width master carton360
    Gross height master carton300
    Net weight master carton11
    Tare weight master carton1.028
    Palette Qty280
    ProducerMSI
