    Iepriekšējais produktsMainboard|MSI|AMD X870E|SAM...
    Nākamais produktsMainboard|MSI|AMD X870E|SAM...
    Ražotājs: MSI

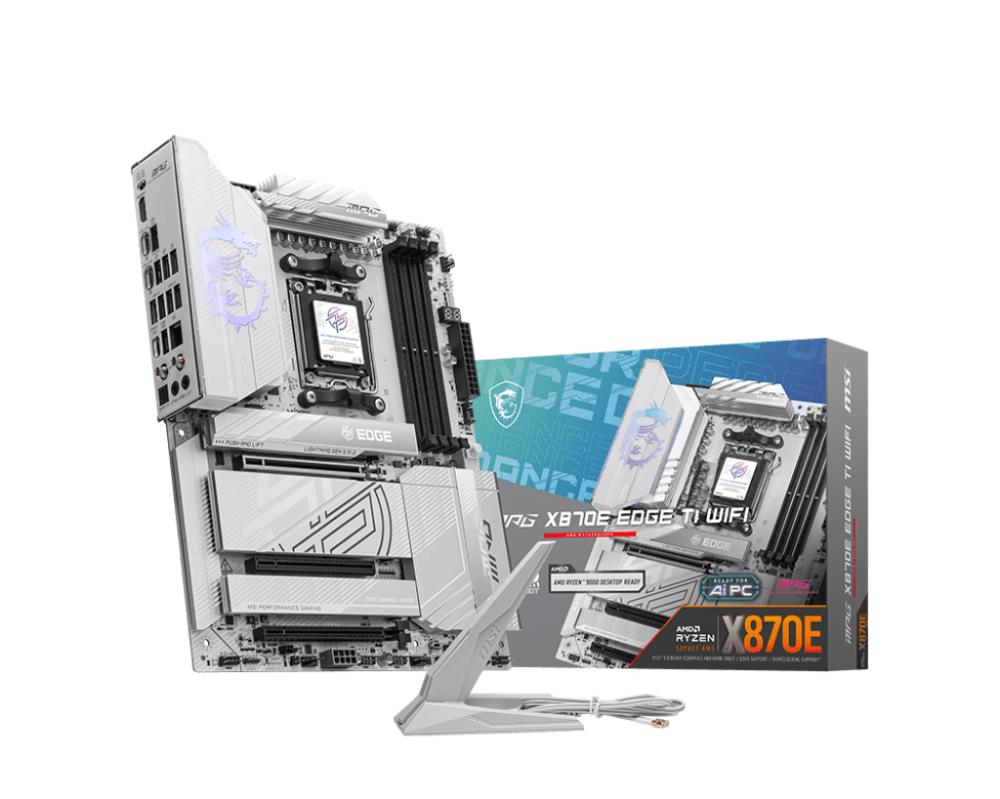

    Mainboard|MSI|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 16x|4xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|5xUSB 3.2|3xUSB-C|1xOptical S/PDIF|1xRJ45|MPGX870EEDGETIWIFI


    €417,80 ar pvn

    Artikuls: ST08831155
    Preces kods: MPG X870E EDGE TI WIFI
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL

    Specifikācija
    Video interfeiss HDMI
    Plates izmērs (Form Factor) ATX
    Model

    MPG X870E EDGE TI WIFI
    CPU socketSocket AM5
    Processor familyAMD Ryzen 5
    Processor familyAMD Ryzen 9
    Processor familyAMD Ryzen 7
    Integrated CPUNo
    Chipset manufacturerAMD
    Chipset type

    AMD X870E
    Memory type DDR5
    Number of DDR5 slots4
    Memory bus frequency8400 MHz
    Memory bus frequency6400 MHz
    Memory bus frequency5600 MHz
    Memory bus frequency4800 MHz
    Max memory size 256 (GigaBajt)
    Expansion slots1 x PCIe 4.0 x 4
    Expansion slots1 x PCIe 5.0 x 16
    Expansion slots4 x M.2
    Expansion slots1 x PCIe 3.0 x 1
    Max. number of SATA devices 4
    RAIDYes
    Detailed data on disk/drive interfaces

    Storage 4x M.2
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
    M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    4x SATA 6G

    M.2_1 slot
    Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
    Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)

    M.2_2 slot
    Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
    Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)

    * The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.
    ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
    RAID Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
    Graphics
    • 1x HDMI
    • Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
    • 2x Type-C DisplayPort
    • USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
    Sound card
    • Realtek ALC4080 Codec
    • 7.1-Channel USB High-Performance Audio
    • Supports up to 32-Bit/384 kHz playback on front panel
    • Supports S/PDIF output
    Network interface1 x 10/100/1000/2500/5000 Mbit/s
    Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
    Network interfaceBluetooth
    Network interface

    LAN

    • 1x Realtek 8126 5G LAN

    SIEĆ BEZPRZEWODOWA I BLUETOOTH

    • Wi-Fi 7
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
    • Supports Bluetooth 5.4**, MLO, 4KQAM
    USB ports at back panel12
    USB ports on motherboard9
    Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
    Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports9
    FireWire (IEEE 1394)No
    COM connector / portNo
    LPT connector / portNo
    External connectors1 x USB 3.2 Gen 2 Type-C
    External connectors2 x USB4 Type-C
    External connectors2 x SMA
    External connectors1 x Przycisk Clear CMOS
    External connectors1 x Flash BIOS Button
    External connectors1 x HDMI
    External connectors1 x Line Out
    External connectors1 x MIC
    External connectors1 x RJ-45
    External connectors1 x S/PDIF
    External connectors4 x USB 2.0
    External connectors5 x USB 3.2 Gen 2 Type-A
    Onboard connectors6 x 4pin wentylator obudowy
    Onboard connectors1 x RGB LED strip header
    Onboard connectors2 x 4pin wentylator CPU
    Onboard connectors2 x System panel header
    Onboard connectors1 x Front panel audio header
    Onboard connectors1 x Chassis intrusion header
    Onboard connectors1 x 4-pin water-pump-fan
    Onboard connectors1 x 8pin 12V power
    Onboard connectors1 x 24pin ATX zasilanie
    Onboard connectors4 x USB 2.0/1.1
    Onboard connectors4 x USB 3.2 Gen 1 Type-A
    Onboard connectors1 x USB 3.2 Gen 2x2 Type-C
    Onboard connectors3 x Addressable LED
    Onboard connectors1 x EZ Conn-header
    Onboard connectors1 x TPM header
    Form factorATX
    Dimensions

    243.84 mm x 304.8 mm
    Supported operating systemsWindows 11
    DesignationCE+WEEE
    Width270
    Height340
    Depth70
    Weight2400
    Description

    Seria premium MPG (MSI PERFORMANCE GAMING) firmy MSI została zaprojektowana dla graczy, którzy wymagają wysokiej wydajności i eleganckiego wzornictwa. Każdy produkt prezentuje najnowocześniejszą estetykę i żywe kolory, odzwierciedlając zaangażowanie MPG w wyjątkowy design. Dzięki zoptymalizowanym konfiguracjom MPG tworzy wizualnie uderzające i potężne wrażenia z gry, które wyznaczają trendy.

    Płyty główne MSI są projektowane z zaawansowanym sprzętem i technologią, dobrze obsługującą wymagające wykorzystanie obliczeniowe gier i AI. Ponadto wprowadzamy AI do MSI Center i BIOS, dzięki czemu wszystko staje się łatwiejsze niż wcześniej.
    Description
    AMD X870E | ATX | Audio 7.1 channels | CPU AMD | Socket Socket AM5 | Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series | Supported memory types DDR5-SDRAM | 4xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,SATA III | 4xUSB 2.0 ports quantity | 5xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1xEthernet LAN (RJ-45) ports | 1xHDMI ports quantity | Wi-Fi Yes | Bluetooth Yes
    DescriptionMSI MPG X870E EDGE TI WIFI
    VatTypeVAT
    Weight2.400000000
    Height70.000000000
    Width270.000000000
    Length340.000000000
    Description
    MSI MPG X870E EDGE TI WIFI
    Gross depth (mm)268
    Gross height (mm)342
    Gross weight2.12
    Gross width (mm)70
    Net weight1.67
    Packing quantity1.00
    Paper/Pasteboard359.00
    Plastic (No PET)90.00
    Tare weight (kg)0.45
    TI weight (kg)0.02
    Volume (m3)0.00641592
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    Embeeded batteryYes
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    ProducerMSI
    Supported hard disk drive interfacesSATA, M.2
    Processor familyAMD
    Supported memory typesDDR5
    Processor socketAM5
    Number of SATA connectors4
    Producer product nameMPG X870E EDGE TI WIFI
    Palette Qty269
    Warranty36

    Specifikācija
    Video interfeiss HDMI
    Plates izmērs (Form Factor) ATX
    Model

    MPG X870E EDGE TI WIFI
    CPU socketSocket AM5
    Processor familyAMD Ryzen 5
    Processor familyAMD Ryzen 9
    Processor familyAMD Ryzen 7
    Integrated CPUNo
    Chipset manufacturerAMD
    Chipset type

    AMD X870E
    Memory type DDR5
    Number of DDR5 slots4
    Memory bus frequency8400 MHz
    Memory bus frequency6400 MHz
    Memory bus frequency5600 MHz
    Memory bus frequency4800 MHz
    Max memory size 256 (GigaBajt)
    Expansion slots1 x PCIe 4.0 x 4
    Expansion slots1 x PCIe 5.0 x 16
    Expansion slots4 x M.2
    Expansion slots1 x PCIe 3.0 x 1
    Max. number of SATA devices 4
    RAIDYes
    Detailed data on disk/drive interfaces

    Storage 4x M.2
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
    M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    4x SATA 6G

    M.2_1 slot
    Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
    Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)

    M.2_2 slot
    Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
    Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)

    * The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.
    ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
    RAID Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
    Graphics
    • 1x HDMI
    • Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
    • 2x Type-C DisplayPort
    • USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
    Sound card
    • Realtek ALC4080 Codec
    • 7.1-Channel USB High-Performance Audio
    • Supports up to 32-Bit/384 kHz playback on front panel
    • Supports S/PDIF output
    Network interface1 x 10/100/1000/2500/5000 Mbit/s
    Network interfaceWi-Fi 802.11a/b/g/n/ac/ax/be
    Network interfaceBluetooth
    Network interface

    LAN

    • 1x Realtek 8126 5G LAN

    SIEĆ BEZPRZEWODOWA I BLUETOOTH

    • Wi-Fi 7
    • The Wireless module is pre-installed in the M.2 (Key-E) slot
    • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
    • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
    • Supports Bluetooth 5.4**, MLO, 4KQAM
    USB ports at back panel12
    USB ports on motherboard9
    Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
    Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports9
    FireWire (IEEE 1394)No
    COM connector / portNo
    LPT connector / portNo
    External connectors1 x USB 3.2 Gen 2 Type-C
    External connectors2 x USB4 Type-C
    External connectors2 x SMA
    External connectors1 x Przycisk Clear CMOS
    External connectors1 x Flash BIOS Button
    External connectors1 x HDMI
    External connectors1 x Line Out
    External connectors1 x MIC
    External connectors1 x RJ-45
    External connectors1 x S/PDIF
    External connectors4 x USB 2.0
    External connectors5 x USB 3.2 Gen 2 Type-A
    Onboard connectors6 x 4pin wentylator obudowy
    Onboard connectors1 x RGB LED strip header
    Onboard connectors2 x 4pin wentylator CPU
    Onboard connectors2 x System panel header
    Onboard connectors1 x Front panel audio header
    Onboard connectors1 x Chassis intrusion header
    Onboard connectors1 x 4-pin water-pump-fan
    Onboard connectors1 x 8pin 12V power
    Onboard connectors1 x 24pin ATX zasilanie
    Onboard connectors4 x USB 2.0/1.1
    Onboard connectors4 x USB 3.2 Gen 1 Type-A
    Onboard connectors1 x USB 3.2 Gen 2x2 Type-C
    Onboard connectors3 x Addressable LED
    Onboard connectors1 x EZ Conn-header
    Onboard connectors1 x TPM header
    Form factorATX
    Dimensions

    243.84 mm x 304.8 mm
    Supported operating systemsWindows 11
    DesignationCE+WEEE
    Width270
    Height340
    Depth70
    Weight2400
    Description

    Seria premium MPG (MSI PERFORMANCE GAMING) firmy MSI została zaprojektowana dla graczy, którzy wymagają wysokiej wydajności i eleganckiego wzornictwa. Każdy produkt prezentuje najnowocześniejszą estetykę i żywe kolory, odzwierciedlając zaangażowanie MPG w wyjątkowy design. Dzięki zoptymalizowanym konfiguracjom MPG tworzy wizualnie uderzające i potężne wrażenia z gry, które wyznaczają trendy.

    Płyty główne MSI są projektowane z zaawansowanym sprzętem i technologią, dobrze obsługującą wymagające wykorzystanie obliczeniowe gier i AI. Ponadto wprowadzamy AI do MSI Center i BIOS, dzięki czemu wszystko staje się łatwiejsze niż wcześniej.
    Description
    AMD X870E | ATX | Audio 7.1 channels | CPU AMD | Socket Socket AM5 | Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series | Supported memory types DDR5-SDRAM | 4xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,SATA III | 4xUSB 2.0 ports quantity | 5xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1xEthernet LAN (RJ-45) ports | 1xHDMI ports quantity | Wi-Fi Yes | Bluetooth Yes
    DescriptionMSI MPG X870E EDGE TI WIFI
    VatTypeVAT
    Weight2.400000000
    Height70.000000000
    Width270.000000000
    Length340.000000000
    Description
    MSI MPG X870E EDGE TI WIFI
    Gross depth (mm)268
    Gross height (mm)342
    Gross weight2.12
    Gross width (mm)70
    Net weight1.67
    Packing quantity1.00
    Paper/Pasteboard359.00
    Plastic (No PET)90.00
    Tare weight (kg)0.45
    TI weight (kg)0.02
    Volume (m3)0.00641592
    Classification of batteryCL126:NE:2016-12-09
    Composition of batteryCL127:KT:2016-12-09
    Type of batteryAccumulator
    Embeeded batteryYes
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    ProducerMSI
    Supported hard disk drive interfacesSATA, M.2
    Processor familyAMD
    Supported memory typesDDR5
    Processor socketAM5
    Number of SATA connectors4
    Producer product nameMPG X870E EDGE TI WIFI
    Palette Qty269
    Warranty36
