    Iepriekšējais produktsMSI PRO H610M-E DDR4 mother...
    Nākamais produktsMSI PRO H610M-E motherboard...
    Ražotājs: MSI

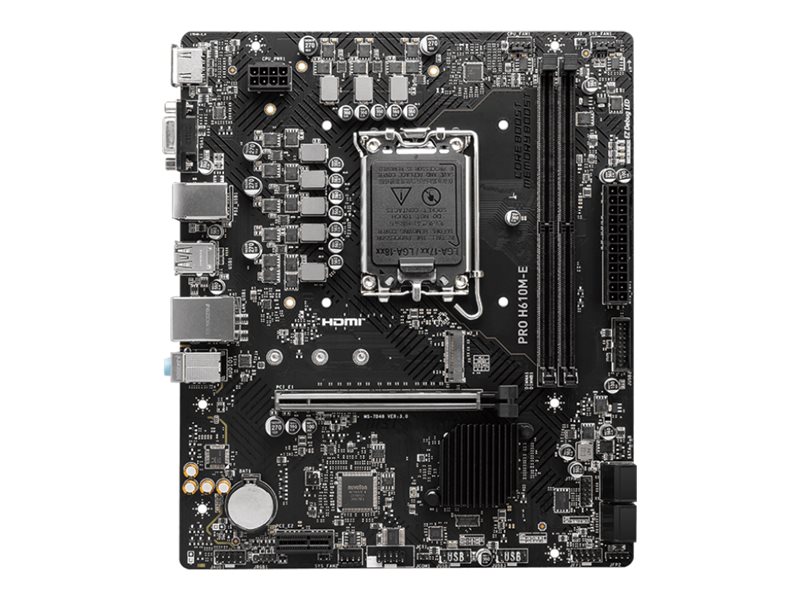

    MSI PRO H610M-E Intel H610 LGA1700 DDR5


    €85,60 ar pvn

    Artikuls: ST07930751
    Preces kods: PRO H610M-E
    Ražotāja mājaslapa
    Garantija: 36 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LT
    PL

    Specifikācija
    Plates izmērs (Form Factor) mATX
    Video interfeiss HDMI
    CPU ligzda LGA 1700
    Video interfeiss D-Sub
    Model

    PRO H610M-E
    CPU socketLGA1700
    Processor familyIntel Celeron
    Processor familyIntel Core i3
    Processor familyIntel Core i5
    Processor familyIntel Core i7
    Processor familyIntel Pentium Gold
    Processor familyIntel Core i9
    Integrated CPUNo
    Chipset manufacturerIntel
    Chipset type

    INTEL H610
    Memory type DDR5
    Number of DDR5 slots2
    Memory bus frequency5600 MHz
    Max memory size 96 (GigaBajt)
    Expansion slots1 x PCIe 3.0 x 1
    Expansion slots1 x PCIe 4.0 x 16
    Max. number of SATA devices 4
    RAIDNo
    Detailed data on disk/drive interfaces
    • 1 x M.2 - M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
    • 4 x SATA 6G
    Graphics
    • 1 x HDMI - Obsługa HDMI 1.4 z HDR, maksymalna rozdzielczość 4K 30 Hz
    • 1 x VGA
    Sound card
    • Realtek ALC897 Codec
    • 7.1-Channel High Definition Audio
    Network interface1 x 10/100/1000 Mbit/s
    Network interface

    Realtek RTL8111H Gigabit LAN
    USB ports at back panel6
    USB ports on motherboard6
    Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports4
    Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports0
    FireWire (IEEE 1394)No
    COM connector / portYes
    LPT connector / portNo
    External connectors1 x PS/2 Keyboard/MouseCombo
    External connectors1 x MIC
    External connectors1 x RJ-45
    External connectors1 x D-Sub
    External connectors1 x HDMI
    External connectors1 x Line In
    External connectors1 x Line Out
    External connectors4 x USB 2.0
    External connectors2 x USB 3.0
    Onboard connectors1 x Front panel audio header
    Onboard connectors1 x TPM header
    Onboard connectors2 x System panel header
    Onboard connectors1 x 4pin CPU fan
    Onboard connectors2 x 4pin Chassis fan
    Onboard connectors1 x 24pin ATX zasilanie
    Onboard connectors1 x M.2
    Onboard connectors4 x SATA III 6Gb/s
    Onboard connectors4 x USB 2.0/1.1
    Onboard connectors2 x USB 3.0 header
    Onboard connectors1 x Serial port header
    Onboard connectors4 x EZ Debug LED
    Onboard connectors1 x Chassis intrusion header
    Onboard connectors1 x RGB LED strip header
    Form factormicro ATX
    Dimensions

    200 x 236.16 mm
    Supported operating systemsWindows 10
    Supported operating systemsWindows 11
    DesignationCE+WEEE
    Width265
    Height260
    Depth60
    Weight705
    DescriptionMSI PRO H610M-E Intel H610 LGA1700 DDR5
    VatTypeVAT
    Weight0.700000000
    Height60.000000000
    Width260.000000000
    Length260.000000000
    Description
    MSI PRO H610M-E Intel H610 LGA1700 2XDDR5 mATX HDMI VGA MB
    Gross depth (mm)257
    Gross depth (mm)257
    Gross height (mm)260
    Gross height (mm)260
    Gross weight1.64
    Gross width (mm)55
    Gross width (mm)55
    Net weight0.97
    Tare weight (kg)0.68
    Tare weight (kg)0.68
    TI weight (kg)0.05
    TI weight (kg)0.05
    Volume (m3)0.0036751
    Volume (m3)0.0036751
