    Iepriekšējais produktsNET ROUTER 1000M 7PORT/RB50...
    Nākamais produktsNET ROUTER 1000M 7PORT/RB50...
    Ražotājs: MIKROTIK

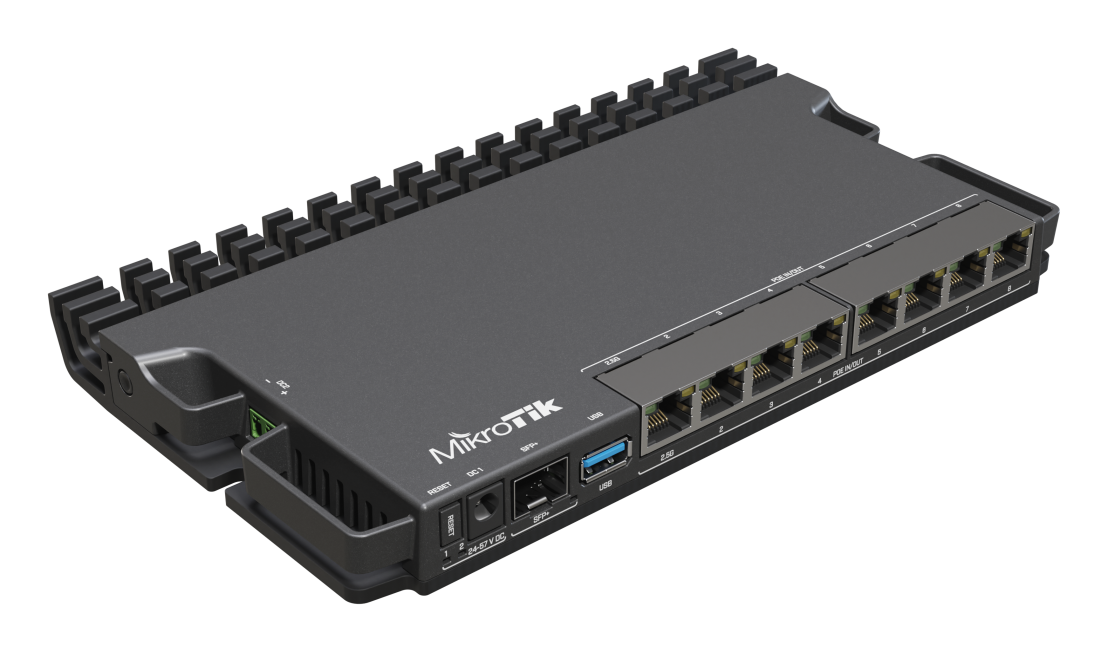

    NET ROUTER 1000M 7PORT/RB5009UPR+S+IN MIKROTIK


    €281,82 ar pvn

    Artikuls: ST07187420
    Preces kods: RB5009UPR+S+IN
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    LT
    PL
    PL
    LV
    LT
    DE

    Specifikācija
    Īpašības RJ-45
    Portu skaits RJ-45 12
    Īpašības USB 3.0
    Portu skaits RJ-45 1
    Model

    RB5009UPr+S+IN
    TypexDSL
    Network architectureGigabitEthernet
    I/O ports1 x USB 3.0 Type A
    I/O ports7 x 10/100/1000 Mbit/s PoE
    I/O ports1 x SFP+
    I/O ports1 x 10/100/1000/2500 RJ-45 port PoE
    Standards802.3af
    Standards802.3at
    Power supply
    • Liczba wejść DC: 3 (gniazdo DC, PoE-IN, złącze 2-pinowe)
    • Napięcie wejściowe gniazda DC: 24-57 V
    • Maksymalne zużycie energii: 150 W
    Certificates
    • CE,
    • EAC,
    • ROHS
    ColorBlack
    Dimensions

    220 x 125 x 22 mm
    Other features
    • System operacyjny: RouterOS v7
    • Rozmiar pamięciRAM: 1 GB
    • MTBF: Około 200 000 godzin w temperaturze 25°C
    Width80
    Height240
    Depth140
    Weight1100
    Description

    Ta wersja modelu RB5009 posiada wszystkie możliwe dodatki poprzedniego modelu: Ethernet Gigabit, Ethernet 2,5 Gigabit oraz klatkę 10 Gigabit SFP+ dla łączności światłowodowej. Ma prędkość, moc i trwałość. Tym razem dodaliśmy także funkcje PoE-in i PoE-out we wszystkich ośmiu portach Ethernet.  Wszystkie opcje zasilania obsługują szeroki zakres napięć od 24 do 57 V. Każdy port PoE-out może dostarczyć do 25 W mocy. Łączna moc wszystkich portów jest ograniczona do 130 W, co powinno wystarczyć dla większości konfiguracji. W razie potrzeby można ręcznie określić maksymalną dostępną moc z źródeł zasilania. Jeśli chodzi o funkcje PoE-out, nowy model RB5009 może konkurować z naszymi legendarnymi przełącznikami PoE: CRS354 i CRS328. W najmniejszym możliwym formacie i w najlepszej cenie na rynku!
    Description
    Network Device Type Router | 7x10Base-T / 100Base-TX / 1000Base-T | 1x2.5GbE | 1xSFP+ | 1xUSB 3.0 | Memory (RAM) 1GB | Operating temperature range -40°C to 60°C °C
    Length0.24
    Width0.15
    Height0.1
    Weight1.3
    Gross depth (mm)310.00
    Gross height (mm)48.00
    Gross weight0.80
    Gross width (mm)130.00
    Net weight0.45
    Packing quantity1.00
    Paper/Pasteboard315.00
    Plastic (No PET)35.00
    Tare weight (kg)0.35
    Volume (m3)0.00
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Switch typeRouter Switch
    Form factorRack Mountable
    Producer product nameRB5009UPr+S+IN
    Producer product family RouterBOARD
    Predominant port type10/100/1000 Mbps (RJ-45)
    SFP+ ports quantity1
    Ethernet LAN data rates10/100/1000
    Ethernet LAN (RJ-45) ports7
    Wi-Fi bandNo Wi-Fi
    Mesh SupportNo
    Mobile BroadbandNo mobile broadband
    MU-MiMONo
    Operating system installed RouterOS
    Voltage24-57
    PoE in802.3af/at
    Software type RouterOS
    Power consumption (max)150
    Operating temperature (T-T)-40°C to 60°C
    Palette Qty893
    ProducerMikroTik
    Warranty12
    Description
    This version of the RB5009 has all the bells and whistles of the previous model: Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity. It has the speed, the power, and the durability. But this time, we have added PoE-in & PoE-out on all eight Ethernet ports. Combined with the 2-pin connector and the DC jack, you’re getting 10 separate ways of powering. Dual redundant power supplies would usually take your uninterrupted uptime to the next level. RB5009UPr+S+IN takes it one step above that!All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages. If you’re using PoE-out to power other devices, the board will choose the source with the highest voltage (DC jack or the 2-pin connector) to power those.Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. When it comes to PoE-out features, the new RB5009 can trade blows with our legendary PoE switches: CRS354 & CRS328. In the smallest possible form-factor and for the best price on the market!Protect your uptime, protect your tranquility!So what exactly happens if there is a problem with one of your power sources? Here’s a quick example: you have 24V on the DC jack, 48V on the 2-pin connector, and 57V on the PoE-in. The board itself gets powered by the highest voltage input – the PoE-in. If there’s a problem, RB5009 will fall back to the second highest voltage - the 2-pin connector. And if that fails – there’s the 24V option on the DC jack.What about the PoE-out devices? Once again – the highest voltage wins. PoE-out devices will draw power from the 48V source on the 2-pin connector. If that fails – the 24V on the DC jack come into play. The board will always reserve 20 watts to power itself. If there is not enough power for all the PoE-out ports, it will start disabling the ones with the lowest priority. You can set the port priority manually.This tiny form-factor shines anywhere: from confined research facilities and offices to huge corporate server rooms. And don’t forget that you can mount FOUR of these routers in a single 1U rackmount spaceWith the new RB5009, we want to empower all the small and medium ISPs that are always on the lookout for the most cost-effective and robust solutions. It is a perfect addition to our previous GPEN devices – a line of products designed to replace the expensive GPON solutions.
    Description
    Mikrotik RB5009UPr+S+IN

    Specifikācija
    Īpašības RJ-45
    Portu skaits RJ-45 12
    Īpašības USB 3.0
    Portu skaits RJ-45 1
    Model

    RB5009UPr+S+IN
    TypexDSL
    Network architectureGigabitEthernet
    I/O ports1 x USB 3.0 Type A
    I/O ports7 x 10/100/1000 Mbit/s PoE
    I/O ports1 x SFP+
    I/O ports1 x 10/100/1000/2500 RJ-45 port PoE
    Standards802.3af
    Standards802.3at
    Power supply
    • Liczba wejść DC: 3 (gniazdo DC, PoE-IN, złącze 2-pinowe)
    • Napięcie wejściowe gniazda DC: 24-57 V
    • Maksymalne zużycie energii: 150 W
    Certificates
    • CE,
    • EAC,
    • ROHS
    ColorBlack
    Dimensions

    220 x 125 x 22 mm
    Other features
    • System operacyjny: RouterOS v7
    • Rozmiar pamięciRAM: 1 GB
    • MTBF: Około 200 000 godzin w temperaturze 25°C
    Width80
    Height240
    Depth140
    Weight1100
    Description

    Ta wersja modelu RB5009 posiada wszystkie możliwe dodatki poprzedniego modelu: Ethernet Gigabit, Ethernet 2,5 Gigabit oraz klatkę 10 Gigabit SFP+ dla łączności światłowodowej. Ma prędkość, moc i trwałość. Tym razem dodaliśmy także funkcje PoE-in i PoE-out we wszystkich ośmiu portach Ethernet.  Wszystkie opcje zasilania obsługują szeroki zakres napięć od 24 do 57 V. Każdy port PoE-out może dostarczyć do 25 W mocy. Łączna moc wszystkich portów jest ograniczona do 130 W, co powinno wystarczyć dla większości konfiguracji. W razie potrzeby można ręcznie określić maksymalną dostępną moc z źródeł zasilania. Jeśli chodzi o funkcje PoE-out, nowy model RB5009 może konkurować z naszymi legendarnymi przełącznikami PoE: CRS354 i CRS328. W najmniejszym możliwym formacie i w najlepszej cenie na rynku!
    Description
    Network Device Type Router | 7x10Base-T / 100Base-TX / 1000Base-T | 1x2.5GbE | 1xSFP+ | 1xUSB 3.0 | Memory (RAM) 1GB | Operating temperature range -40°C to 60°C °C
    Length0.24
    Width0.15
    Height0.1
    Weight1.3
    Gross depth (mm)310.00
    Gross height (mm)48.00
    Gross weight0.80
    Gross width (mm)130.00
    Net weight0.45
    Packing quantity1.00
    Paper/Pasteboard315.00
    Plastic (No PET)35.00
    Tare weight (kg)0.35
    Volume (m3)0.00
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Switch typeRouter Switch
    Form factorRack Mountable
    Producer product nameRB5009UPr+S+IN
    Producer product family RouterBOARD
    Predominant port type10/100/1000 Mbps (RJ-45)
    SFP+ ports quantity1
    Ethernet LAN data rates10/100/1000
    Ethernet LAN (RJ-45) ports7
    Wi-Fi bandNo Wi-Fi
    Mesh SupportNo
    Mobile BroadbandNo mobile broadband
    MU-MiMONo
    Operating system installed RouterOS
    Voltage24-57
    PoE in802.3af/at
    Software type RouterOS
    Power consumption (max)150
    Operating temperature (T-T)-40°C to 60°C
    Palette Qty893
    ProducerMikroTik
    Warranty12
    Description
    This version of the RB5009 has all the bells and whistles of the previous model: Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity. It has the speed, the power, and the durability. But this time, we have added PoE-in & PoE-out on all eight Ethernet ports. Combined with the 2-pin connector and the DC jack, you’re getting 10 separate ways of powering. Dual redundant power supplies would usually take your uninterrupted uptime to the next level. RB5009UPr+S+IN takes it one step above that!All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages. If you’re using PoE-out to power other devices, the board will choose the source with the highest voltage (DC jack or the 2-pin connector) to power those.Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. When it comes to PoE-out features, the new RB5009 can trade blows with our legendary PoE switches: CRS354 & CRS328. In the smallest possible form-factor and for the best price on the market!Protect your uptime, protect your tranquility!So what exactly happens if there is a problem with one of your power sources? Here’s a quick example: you have 24V on the DC jack, 48V on the 2-pin connector, and 57V on the PoE-in. The board itself gets powered by the highest voltage input – the PoE-in. If there’s a problem, RB5009 will fall back to the second highest voltage - the 2-pin connector. And if that fails – there’s the 24V option on the DC jack.What about the PoE-out devices? Once again – the highest voltage wins. PoE-out devices will draw power from the 48V source on the 2-pin connector. If that fails – the 24V on the DC jack come into play. The board will always reserve 20 watts to power itself. If there is not enough power for all the PoE-out ports, it will start disabling the ones with the lowest priority. You can set the port priority manually.This tiny form-factor shines anywhere: from confined research facilities and offices to huge corporate server rooms. And don’t forget that you can mount FOUR of these routers in a single 1U rackmount spaceWith the new RB5009, we want to empower all the small and medium ISPs that are always on the lookout for the most cost-effective and robust solutions. It is a perfect addition to our previous GPEN devices – a line of products designed to replace the expensive GPON solutions.
    Description
    Mikrotik RB5009UPr+S+IN
