Nākamais produktsASUS P12R-E Intel C256 LGA ...

Ražotājs: ASUS

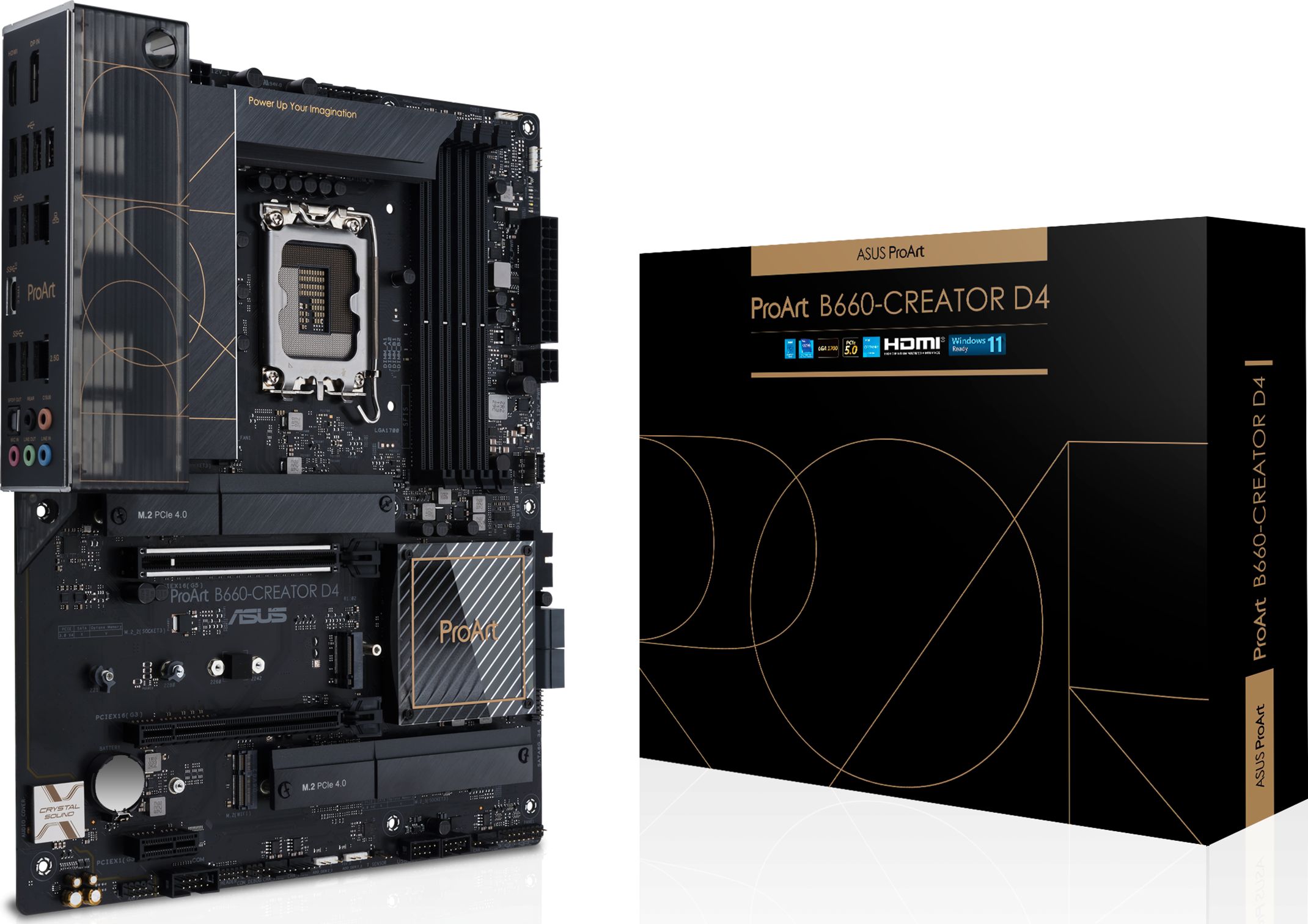

ASUS MBA-B660-PCREATOR-D4 Intel B660 LGA 1700 ATX

€249,33 ar pvn

Artikuls: ST05989229

Preces kods: PROART B660-CREATOR D4

Ražotāja mājaslapa

Garantija: 24 mēneši

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	PL	8 - 15 dienās	13	€249,33 ar pvn

Daudzums:

Specifikācijas

Specifikācija

1
Specifikācija 2

Atmiņas tips	DDR4
Video interfeiss	DisplayPort
Video interfeiss	HDMI
Plates izmērs (Form Factor)	ATX
CPU ligzda	LGA 1700

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	3rd Generation AMD Ryzen 5, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets	LGA 1700
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Maximum internal memory	128 GB
Memory slots type	DIMM
Memory channels	Dual-channel
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4266,4400,4600,4800,5000,5066,5333 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	7
RAID support	Yes
RAID levels	0, 1, 5, 10
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
Number of EATX power connectors	2
CPU fan connector	Yes
Number of chassis fan connectors	4
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of COM connectors	1
Thunderbolt headers	1
12V power connector	Yes
RGB LED pin header	Yes
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	5
Digital audio optical out	1
USB connector type	USB Type-A, USB Type-C
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, Gigabit Ethernet
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B660
Audio output channels	7.1 channels
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3
BIOS memory size	128 Mbit
Clear CMOS jumper	Yes
Width	305 mm
Depth	244 mm
Cables included	SATA
Description
Description	ASUS MBA-B660-PCREATOR-D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: 3rd Generation AMD Ryzen 5, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel®.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet

Specifikācija

1
Specifikācija 2

Atmiņas tips	DDR4
Video interfeiss	DisplayPort
Video interfeiss	HDMI
Plates izmērs (Form Factor)	ATX
CPU ligzda	LGA 1700

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processor series	3rd Generation AMD Ryzen 5, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets	LGA 1700
Supported memory types	DDR4-SDRAM
Number of memory slots	4
Maximum internal memory	128 GB
Memory slots type	DIMM
Memory channels	Dual-channel
Non-ECC	Yes
Supported memory clock speeds	2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4266,4400,4600,4800,5000,5066,5333 MHz
Unbuffered memory	Yes
Supported storage drive interfaces	M.2, PCI Express 3.0, PCI Express 4.0
Supported storage drive types	HDD & SSD
Number of HDDs supported	4
Number of storage drives supported	7
RAID support	Yes
RAID levels	0, 1, 5, 10
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Front panel audio connector	Yes
Front panel connector	Yes
ATX Power connector (24-pin)	Yes
Number of EATX power connectors	2
CPU fan connector	Yes
Number of chassis fan connectors	4
Chassis intrusion connector	Yes
EPS power connector (8-pin)	Yes
Number of COM connectors	1
Thunderbolt headers	1
12V power connector	Yes
RGB LED pin header	Yes
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone outputs	5
Digital audio optical out	1
USB connector type	USB Type-A, USB Type-C
Wi-Fi	No
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, Gigabit Ethernet
Component for	PC
Motherboard form factor	ATX
Motherboard chipset family	Intel
Motherboard chipset	Intel B660
Audio output channels	7.1 channels
Power source type	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI Express x16 (Gen 5.x) slots	1
Number of M.2 (M) slots	3
BIOS memory size	128 Mbit
Clear CMOS jumper	Yes
Width	305 mm
Depth	244 mm
Cables included	SATA
Description
Description	ASUS MBA-B660-PCREATOR-D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: 3rd Generation AMD Ryzen 5, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel®.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet
