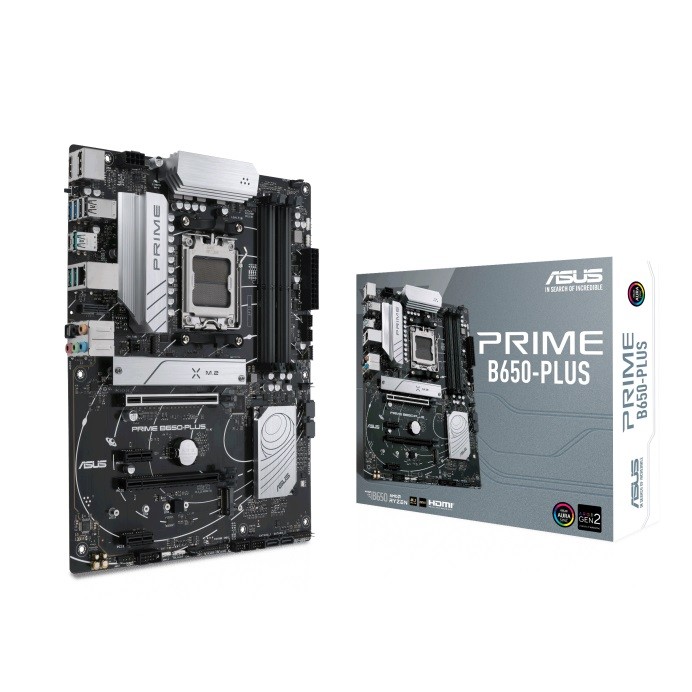

| Model | PRIME B650-PLUS |
| CPU socket | Socket AM5 |
| Processor family | AMD Ryzen |
| Integrated CPU | No |
| Chipset manufacturer | AMD |
| Chipset type | AMD B650 Chipset |
| Memory type | DDR5 |
| Number of DDR5 slots | 4 |
| Memory bus frequency | 5200 MHz |
| Memory bus frequency | 5800 MHz |
| Memory bus frequency | 6000 MHz |
| Memory bus frequency | 5600 MHz |
| Memory bus frequency | 5400 MHz |
| Memory bus frequency | 4800 MHz |
| Memory bus frequency | 6400 MHz |
| Memory bus frequency | 6200 MHz |
| Memory bus frequency | 5000 MHz |
| Max memory size | 128 (GigaBajt) |
| Expansion slots | 2 x PCIe 4.0 x 1 |
| Expansion slots | 2 x PCIe 4.0 x 16 |
| Max. number of SATA devices | 4 |
| RAID | Yes |
| Detailed data on disk/drive interfaces | Łącznie obsługuje 2 gniazda M.2 i 4 porty SATA 6 Gb/s* Procesory do komputerów stacjonarnych AMD Ryzen z serii 7000: - Gniazdo M.2_1 (Key M), typ 2242/2260/2280/22110 (obsługuje tryb PCIe 5.0 x4)
- Gniazdo M.2_2 (Key M), typ 2242/2260/2280/22110 (obsługuje tryb PCIe 4.0 x4)
Chipset AMD B650: * Technologia AMD RAIDXpert2 obsługuje zarówno NVMe RAID 0/1/10, jak i SATA RAID 0/1/10. |
| Graphics | - 1 port DisplayPort**
- 1 port HDMI***
* Specyfikacje grafiki mogą się różnić w zależności od typu procesora.
** Obsługuje maks. 8K przy 60 Hz, zgodnie ze specyfikacją DisplayPort 1.4.
*** Obsługuje 4K@60Hz zgodnie ze specyfikacją HDMI 2.1. |
| Sound card | Realtek 7.1 Surround Sound High Definition Audio CODEC: - Obsługuje: wykrywanie wtyczek, wielostrumieniowe przesyłanie, zmianę zadań wtyczek na panelu przednim
- Obsługuje odtwarzanie do 24-bitów/192 kHz
Funkcje audio: - Ekranowanie dźwięku
- Wysokiej jakości kondensatory audio
- Dedykowane warstwy PCB audio
|
| Network interface | 1 x 10/100/1000/2500 Mbit/s |
| Network interface | - Ethernet: Realtek 2.5Gb Ethernet
- Komunikacja bezprzewodowa: Tylko pionowe gniazdo M.2 (Key E, PCIe) - moduł WiFi sprzedawany osobno
|
| USB ports at back panel | 8 |
| USB ports on motherboard | 7 |
| Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports | 5 |
| Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports | 4 |
| FireWire (IEEE 1394) | No |
| COM connector / port | Yes |
| LPT connector / port | No |
| External connectors | 3 x USB 3.1 |
| External connectors | 1 x Vertical M.2 Slot |
| External connectors | 1 x HDMI |
| External connectors | 1 x Central Speaker / Subwoofer |
| External connectors | 1 x Rear Speaker |
| External connectors | 1 x Line In |
| External connectors | 1 x Line Out |
| External connectors | 1 x MIC |
| External connectors | 1 x RJ-45 |
| External connectors | 1 x S/PDIF |
| External connectors | 2 x USB 2.0 |
| External connectors | 1 x USB 3.1 Type-C |
| External connectors | 2 x USB 3.0 |
| External connectors | 1 x Flash BIOS Button |
| External connectors | 1 x DisplayPort |
| Onboard connectors | 1 x Clear CMOS button |
| Onboard connectors | 1 x Front panel audio header |
| Onboard connectors | 1 x USB C |
| Onboard connectors | 1 x Serial port header |
| Onboard connectors | 1 x 4pin CPU fan |
| Onboard connectors | 1 x 4pin CPU/Water Pump Fan Connector |
| Onboard connectors | 3 x 4pin Chassis fan |
| Onboard connectors | 1 x 4-pin water-pump-fan |
| Onboard connectors | 1 x 8pin 12V power |
| Onboard connectors | 1 x 24pin ATX zasilanie |
| Onboard connectors | 2 x M.2 |
| Onboard connectors | 4 x SATA III 6Gb/s |
| Onboard connectors | 4 x USB 2.0/1.1 |
| Onboard connectors | 1 x Thunderbolt header |
| Onboard connectors | 1 x TPM header |
| Onboard connectors | 2 x USB 3.0 header |
| Special functions | ASUS 5X PROTECTION III - DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design ASUS Thermal Solution - Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY - BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
Aura Sync - Aura RGB header
- Addressable Gen 2 headers
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form factor | ATX |
| Dimensions | 30.5 x 24.4 cm |
| Accessories included | - 2 x Kabel SATA 6 Gb/s
- Osłona wejść/wyjść
- Pakiet gumowy M.2
- Zestaw śrub do dysku SSD M.2
- Podręcznik użytkownika
|
| Supported operating systems | Windows 11 |
| Supported operating systems | Windows 10 |
| Software | ASUS Exclusive Software - ASUS CPU-Z
- Norton Anti-virus software (Free Trial version)
- WinRAR
Armoury Crate - Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3 - TurboV EVO
- DIGI+ VRM
- PC Cleaner
UEFI BIOS - ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
|
| Width | 275 |
| Height | 345 |
| Depth | 72 |
| Weight | 1600 |
