    Ražotājs: ATEN

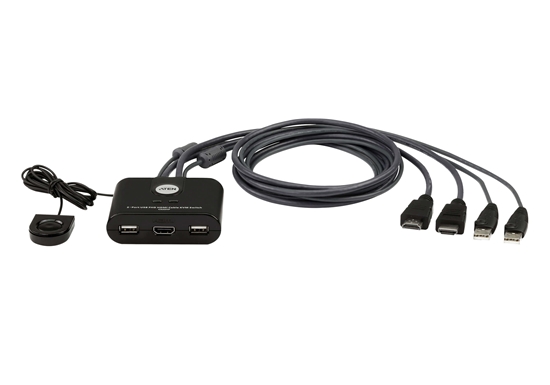

    ATEN 2-Port USB FHD HDMI Cable KVM Switch


    €37,84 ar pvn

    Artikuls: ST05598501
    Preces kods: CS22HF-AT
    Ražotāja mājaslapa
    Garantija: 24 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    PL

    Specifikācija
    Īpašības USB
    Īpašības HDMI
    Portu skaits RJ-45 2
    Vada garums (m.) 1.1 - 1.7 m
    Krāsa Melna
    No. of devices (max)2
    Console Ports2x USB Type A Żeński
    Console Ports1x HDMI Female
    PC connectors2x USB Type A Male
    PC connectors2 x HDMI Male
    Resolution1920 x 1080 (FHD 1080)
    Supported operating systemsWindows
    Supported operating systemsMac OS
    Supported operating systemsLinux
    Dimensions

    8,24 x 6,65 x 2,52 cm
    Weight260 (gram)
    DesignationCE+WEEE
    Width158
    Height223
    Depth55
    Weight364
    Number of computers controlled2
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeHDMI
    Console portsHDMI, USB A
    HDMI ports quantity1
    USB connector typeUSB Type-A
    DC-in jackYes
    HD typeFull HD
    Maximum resolution1920 x 1200 pixels
    Video bandwidth60 Hz
    HDCPYes
    Rack mountingNo
    Product colourBlack
    Housing materialPlastic
    Cable length1.2 m
    Remote switch cable length1.8 m
    LED indicatorsYes
    Built-in displayNo
    DC input voltage5 V
    Power consumption (typical)1.518 W
    Windows operating systems supportedYes
    Linux operating systems supportedYes
    Mac operating systems supportedYes
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width66.5 mm
    Depth82.4 mm
    Height25.2 mm
    Weight260 g
    Package width55 mm
    Package depth155 mm
    Package height223 mm
    Package volume1982.18 cm³
    Package weight360 g
    Package typeBox
    Packaging content1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch 1x user instructions
    Harmonized System (HS) code85176200
    Master (outer) case width328 mm
    Master (outer) case length389 mm
    Master (outer) case height330 mm
    Master (outer) case gross weight7.9 kg
    Master (outer) case volume42192.1 cm³
    Products per master (outer) case20 pc(s)
    Country of originTaiwan
    Description
    ATEN 2-Port USB FHD HDMI Cable KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: Full HD, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. DC input voltage: 5 V, Power consumption (typical): 1.518 W. Width: 66.5 mm, Depth: 82.4 mm, Height: 25.2 mm
    Description

    The CS22HF 2-Port USB FHD HDMI Cable KVM Switch is a control unit that allows access to two computers from a single USB and HDMI console while offering video quality up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. With the CS22HF, you can quickly and effortlessly switch between two USB HDMI computers via the pushbutton on the remote port selector. The CS22HF supports multiplatform operations which allow you to switch between two different operating system PCs. Moreover, the compact and bus-powered design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers on a desktop in any environment.
    Gross depth (mm)82.40
    Gross height (mm)25.20
    Gross weight0.36
    Gross width (mm)66.50
    Net weight0.26
    Packing quantity1.00
    Paper/Pasteboard85.00
    Plastic (No PET)15.00
    Tare weight (kg)0.10
    Volume (m3)0.00
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Inner carton packing Qty1.00
    Producer product name CS22HF
    Other featuresOne KVM console controls two computers with USB and HDMI interface. Superior video quality – up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. Console Ports: 1 x HDMI Female, 2 x USB Type A Femal. KVM Ports: 2 x HDMI Male, 2 x USB Type A Male
    Producer product family2-Port USB FHD HDMI Cable KVM Switch
    Dimensions (WxDxH)6.65x8.24x2.52
    Operating temperature (T-T)0 to 50
    Operating relative humidity (H-H)0 - 80% RH, Non-Condensing
    Palette Qty2778
    ProducerAten
    Warranty24

    Specifikācija
    Īpašības USB
    Īpašības HDMI
    Portu skaits RJ-45 2
    Vada garums (m.) 1.1 - 1.7 m
    Krāsa Melna
    No. of devices (max)2
    Console Ports2x USB Type A Żeński
    Console Ports1x HDMI Female
    PC connectors2x USB Type A Male
    PC connectors2 x HDMI Male
    Resolution1920 x 1080 (FHD 1080)
    Supported operating systemsWindows
    Supported operating systemsMac OS
    Supported operating systemsLinux
    Dimensions

    8,24 x 6,65 x 2,52 cm
    Weight260 (gram)
    DesignationCE+WEEE
    Width158
    Height223
    Depth55
    Weight364
    Number of computers controlled2
    Keyboard port typeUSB
    Mouse port typeUSB
    Video port typeHDMI
    Console portsHDMI, USB A
    HDMI ports quantity1
    USB connector typeUSB Type-A
    DC-in jackYes
    HD typeFull HD
    Maximum resolution1920 x 1200 pixels
    Video bandwidth60 Hz
    HDCPYes
    Rack mountingNo
    Product colourBlack
    Housing materialPlastic
    Cable length1.2 m
    Remote switch cable length1.8 m
    LED indicatorsYes
    Built-in displayNo
    DC input voltage5 V
    Power consumption (typical)1.518 W
    Windows operating systems supportedYes
    Linux operating systems supportedYes
    Mac operating systems supportedYes
    Operating temperature (T-T)0 - 50 °C
    Storage temperature (T-T)-20 - 60 °C
    Operating relative humidity (H-H)0 - 80%
    Storage relative humidity (H-H)0 - 80%
    Width66.5 mm
    Depth82.4 mm
    Height25.2 mm
    Weight260 g
    Package width55 mm
    Package depth155 mm
    Package height223 mm
    Package volume1982.18 cm³
    Package weight360 g
    Package typeBox
    Packaging content1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch 1x user instructions
    Harmonized System (HS) code85176200
    Master (outer) case width328 mm
    Master (outer) case length389 mm
    Master (outer) case height330 mm
    Master (outer) case gross weight7.9 kg
    Master (outer) case volume42192.1 cm³
    Products per master (outer) case20 pc(s)
    Country of originTaiwan
    Description
    ATEN 2-Port USB FHD HDMI Cable KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: Full HD, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. DC input voltage: 5 V, Power consumption (typical): 1.518 W. Width: 66.5 mm, Depth: 82.4 mm, Height: 25.2 mm
    Description

    The CS22HF 2-Port USB FHD HDMI Cable KVM Switch is a control unit that allows access to two computers from a single USB and HDMI console while offering video quality up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. With the CS22HF, you can quickly and effortlessly switch between two USB HDMI computers via the pushbutton on the remote port selector. The CS22HF supports multiplatform operations which allow you to switch between two different operating system PCs. Moreover, the compact and bus-powered design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers on a desktop in any environment.
    Gross depth (mm)82.40
    Gross height (mm)25.20
    Gross weight0.36
    Gross width (mm)66.50
    Net weight0.26
    Packing quantity1.00
    Paper/Pasteboard85.00
    Plastic (No PET)15.00
    Tare weight (kg)0.10
    Volume (m3)0.00
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Inner carton packing Qty1.00
    Producer product name CS22HF
    Other featuresOne KVM console controls two computers with USB and HDMI interface. Superior video quality – up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. Console Ports: 1 x HDMI Female, 2 x USB Type A Femal. KVM Ports: 2 x HDMI Male, 2 x USB Type A Male
    Producer product family2-Port USB FHD HDMI Cable KVM Switch
    Dimensions (WxDxH)6.65x8.24x2.52
    Operating temperature (T-T)0 to 50
    Operating relative humidity (H-H)0 - 80% RH, Non-Condensing
    Palette Qty2778
    ProducerAten
    Warranty24
