| Ethernet WAN | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Full duplex | No |
| Static route | Yes |
| Traffic control | Yes |
| Concurrent connections | 10000 |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Reset button | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Fiber ports quantity | 1 |
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| Supported network protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS |
| Security algorithms | HTTPS |
| Firewall | Yes |
| MAC address filtering | Yes |
| IP-MAC-Port binding | Yes |
| VPN support | PPTP/L2TP/IP Sec |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Windows operating systems supported | Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported | macOS |
| Linux operating systems supported | Yes |
| Heat dissipation | 1 BTU/h |
| Mean time between failures (MTBF) | 1 h |
| Certification | CE, FCC, RoHS |
| Product colour | Black |
| Rack mounting | No |
| LED indicators | LAN, Power, System, WAN, WLAN |
| Power consumption (typical) | 1.56 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
| Switch type | Unmanaged |
| Description |

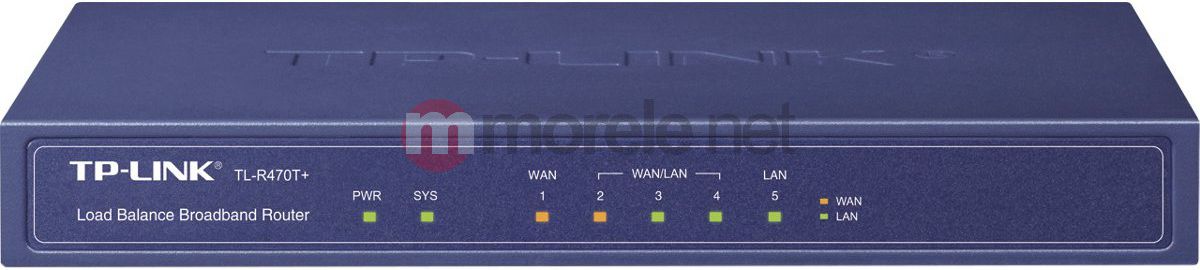

| TP-Link TL-R470T+. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Fast Ethernet, Cabling technology: 10/100Base-T(X). Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS. Security algorithms: HTTPS, VPN support: PPTP/L2TP/IP Sec. Flash memory: 16 MB, Internal memory: 128 MB, Windows operating systems supported: Windows 7, Windows 8, Windows Vista, Windows XP. Product colour: Black, LED indicators: LAN, Power, System, WAN, WLAN |
