| Form factor | Rack |
| Type | Server |
| Product colour | Black |
| Supported motherboard form factors | ATX,EATX |
| Number of 3.5" bays | 3 |
| Side window | N |
| Number of expansion slots | 7 |
| Rack mounting | Y |
| Rack capacity | 2U |
| Reset button | Y |
| On/off button | Y |
| LED indicators | HDD, LAN, Power, Power fail, System |
| Certification | BSMI
CCC
CE/EMC
FCC class A
TUV/CB
UL/CUL |
| Power supply included | Y |
| Power supply | 800 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| 80 PLUS certification | 80 PLUS Titanium |
| Supported HDD sizes | 3.5" |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 437 mm |
| Depth | 450 mm |
| Height | 89 mm |
| Package width | 594 mm |
| Package depth | 826 mm |
| Package height | 251 mm |
| Package weight | 19.1 kg |
| Power efficiency | 96% |
| Ventilation fan(s) | 4 x 4cm PWM |
| Backplanes support | Y |
| Description |

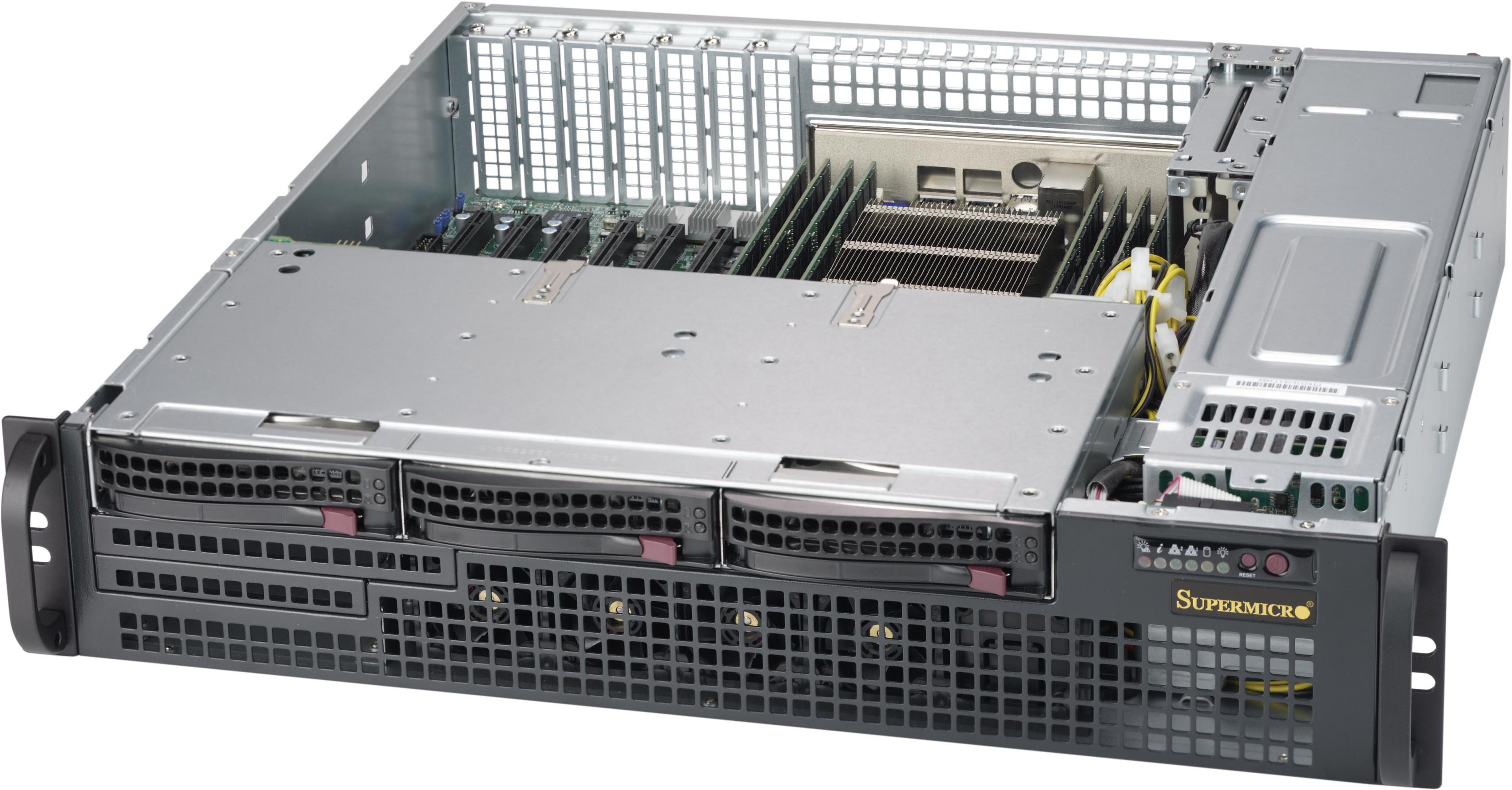

| Supermicro CSE-825MBTQC-R802LPB. Form factor: Rack, Type: Server, Product colour: Black. Power supply: 800 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Supported HDD sizes: 3.5". Width: 437 mm, Depth: 450 mm, Height: 89 mm. Package width: 594 mm, Package depth: 826 mm, Package height: 251 mm |
