| Form factor | Rack |
| Type | Server |
| Product colour | Black |
| Number of 3.5" bays | 4 |
| Side window | N |
| Number of expansion slots | 1 |
| Rack mounting | Y |
| Rack capacity | 1U |
| Reset button | Y |
| On/off button | Y |
| LED indicators | Y |
| Power supply included | Y |
| Power supply | 500 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| 80 PLUS certification | 80 PLUS Platinum |
| Supported HDD sizes | 3.5" |
| Hot-swap | Y |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 437 mm |
| Depth | 507 mm |
| Height | 43 mm |
| Package width | 594 mm |
| Package depth | 754 mm |
| Package height | 216 mm |
| Package weight | 14.1 kg |
| Description |

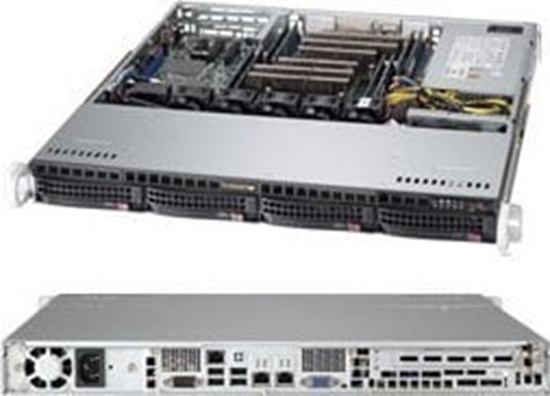

| Supermicro SuperChassis 813MF2TQC-505CB. Form factor: Rack, Type: Server, Product colour: Black. Power supply: 500 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Supported HDD sizes: 3.5". Width: 437 mm, Depth: 507 mm, Height: 43 mm. Package width: 594 mm, Package depth: 754 mm, Package height: 216 mm |
