    Iepriekšējais produktsTellur WiFi switch, 2 ports...
    Nākamais produktsTeltonika SWM281 24 Port Sw...
    Ražotājs: TELTONIKA

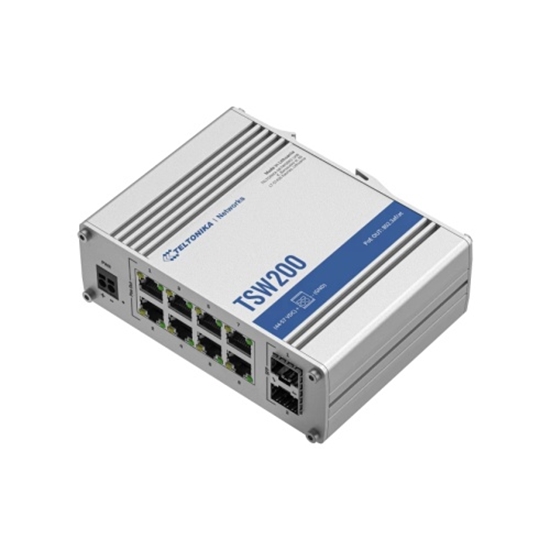

    TELTONIKA IOT SWITCH TSW200 POE 8X 30W PORT TSW200000050


    €106,02 ar pvn

    Artikuls: ST08107552
    Preces kods: TSW200000050
    Ražotāja mājaslapa
    *
    Noliktava Piegāde Daudzums Cena
    LV

    Specifikācija
    Portu skaits RJ-45 8
    Īpašības RJ-45
    DescriptionTELTONIKA IOT SWITCH TSW200 POE 8X 30W PORT TSW200000050
    CountryofOriginCHINA
    PictureLocationhttps://www2.f9baltic.com/productimages/big/TSW200.jpg
    ThumbnailPictureLocation//www2.f9baltic.com/productimages/thumb/TSW200.jpg
    AdditionalPictures TSW200_4.jpg TSW200_3.jpg TSW200_2.jpg TSW200_5.jpg
    Weight0.620000
    Height72.000000
    Length175.000000
    Width147.000000
    BoxSize0
    PalletSize0
    Buffer size, KB128
    IP classificationIP30
    Ports quantity8
    Dimensions W x D x H, mm132 x 95.1 x 44.2
    MAC address table, entries2K
    Weight, g517
    Power over Ethernet (PoE), W240
    Ethernet LAN (RJ-45) PoE ports quantity8
    Bandwidth, Gbit/s20
    PoE capasity per port W30
    Power over Ethernet (PoE) SupportYes
    Switch typeEthernet
    Operating temperature range (T-T), �C- 40 - 75
    Auto MDI/MDI-XYes
    Jumbo Frames support9216 bytes
    Ethernet LAN data transfer rates, Mbit/s10/100/1000
    Networking standards802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
    Fiber ports quantity2
    Fiber typeSFP
    LED indicators1 x Power LED, 16 x LAN status LEDs 2 x SFP status LEDs
    Description
    TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power
    Gross depth (mm)175
    Gross height (mm)70
    Gross weight0.603
    Gross width (mm)150
    Net weight0.453
    Packing quantity10
    Paper/Pasteboard130.00
    Plastic (No PET)20.00
    Tare weight (kg)0.15
    Volume (m3)0.0018375
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Warranty12
    Producer product nameTSW200
    Producer product familyEthernet Switch
    POEPoE+ 802.3at/af
    Predominant port type10/100/1000 Mbps (RJ-45)
    Gigabit Ethernet (copper) ports quantity8
    Switch typeUnmanaged
    Power supply typeIngress Protection Rating: IP30
    Form factorDesktop
    Power over Ethernet (PoE) ports quantity8
    SFP ports quantity2
    Ethernet LAN (RJ-45) ports8
    Power over Ethernet (PoE)Yes
    Case designAluminum
    Operating relative humidity (H-H)10 % to 90 % non condensing
    Connectivity LEDs1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s
    Operating temperature (T-T)40 °C to +75 °C
    Rack mountingDIN rail or wall mounting (additional kit needed), flat surface placement
    Dimensions (WxDxH)132x44.2x95.1
    Case materialFull aluminum housing
    Power consumption (max)1,81 W/5.5 W/245.5 W(idle/max no PoE/max)
    Input voltage7-57 VDC (Input voltage range for PoE: 44-57 VDC)
    Bandwidth20 (Non-blocking)
    Total Power over Ethernet (PoE) budget240
    Power over Ethernet plus (PoE+) ports quantity30
    Combo SFP ports quantity0
    Power over Ethernet (PoE) power per port30
    10 Gbps (RJ-45) ports quantity0
    Combo ports quantity0
    SFP+ ports quantity0
    Box contentsTSW200, Quick Start Guide, (NO ADAPTER)
    AC adapter includedNO
    Gross depth master carton375
    Gross width master carton368
    Gross height master carton170
    Net weight master carton6.03
    Tare weight master carton0.399
    Palette Qty730
    ProducerTeltonika

    Specifikācija
    Portu skaits RJ-45 8
    Īpašības RJ-45
    DescriptionTELTONIKA IOT SWITCH TSW200 POE 8X 30W PORT TSW200000050
    CountryofOriginCHINA
    PictureLocationhttps://www2.f9baltic.com/productimages/big/TSW200.jpg
    ThumbnailPictureLocation//www2.f9baltic.com/productimages/thumb/TSW200.jpg
    AdditionalPictures TSW200_4.jpg TSW200_3.jpg TSW200_2.jpg TSW200_5.jpg
    Weight0.620000
    Height72.000000
    Length175.000000
    Width147.000000
    BoxSize0
    PalletSize0
    Buffer size, KB128
    IP classificationIP30
    Ports quantity8
    Dimensions W x D x H, mm132 x 95.1 x 44.2
    MAC address table, entries2K
    Weight, g517
    Power over Ethernet (PoE), W240
    Ethernet LAN (RJ-45) PoE ports quantity8
    Bandwidth, Gbit/s20
    PoE capasity per port W30
    Power over Ethernet (PoE) SupportYes
    Switch typeEthernet
    Operating temperature range (T-T), �C- 40 - 75
    Auto MDI/MDI-XYes
    Jumbo Frames support9216 bytes
    Ethernet LAN data transfer rates, Mbit/s10/100/1000
    Networking standards802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
    Fiber ports quantity2
    Fiber typeSFP
    LED indicators1 x Power LED, 16 x LAN status LEDs 2 x SFP status LEDs
    Description
    TSW200 is an industrial Ethernet switch with 2 SFP ports for long-range Fiber-optic communication and 8 Gigabit Ethernet ports that support IEEE802.af and IEE802.3at Power-over-Ethernet standards. Classified as power source equipment (PSE), it enables the centralization of the power supply, providing up to 30 watts per port and reducing the effort to install power
    Gross depth (mm)175
    Gross height (mm)70
    Gross weight0.603
    Gross width (mm)150
    Net weight0.453
    Packing quantity10
    Paper/Pasteboard130.00
    Plastic (No PET)20.00
    Tare weight (kg)0.15
    Volume (m3)0.0018375
    Embeeded batteryNo
    WEEE taxYes
    WEE classificationCL109:6:2017-04-01
    Warranty12
    Producer product nameTSW200
    Producer product familyEthernet Switch
    POEPoE+ 802.3at/af
    Predominant port type10/100/1000 Mbps (RJ-45)
    Gigabit Ethernet (copper) ports quantity8
    Switch typeUnmanaged
    Power supply typeIngress Protection Rating: IP30
    Form factorDesktop
    Power over Ethernet (PoE) ports quantity8
    SFP ports quantity2
    Ethernet LAN (RJ-45) ports8
    Power over Ethernet (PoE)Yes
    Case designAluminum
    Operating relative humidity (H-H)10 % to 90 % non condensing
    Connectivity LEDs1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s
    Operating temperature (T-T)40 °C to +75 °C
    Rack mountingDIN rail or wall mounting (additional kit needed), flat surface placement
    Dimensions (WxDxH)132x44.2x95.1
    Case materialFull aluminum housing
    Power consumption (max)1,81 W/5.5 W/245.5 W(idle/max no PoE/max)
    Input voltage7-57 VDC (Input voltage range for PoE: 44-57 VDC)
    Bandwidth20 (Non-blocking)
    Total Power over Ethernet (PoE) budget240
    Power over Ethernet plus (PoE+) ports quantity30
    Combo SFP ports quantity0
    Power over Ethernet (PoE) power per port30
    10 Gbps (RJ-45) ports quantity0
    Combo ports quantity0
    SFP+ ports quantity0
    Box contentsTSW200, Quick Start Guide, (NO ADAPTER)
    AC adapter includedNO
    Gross depth master carton375
    Gross width master carton368
    Gross height master carton170
    Net weight master carton6.03
    Tare weight master carton0.399
    Palette Qty730
    ProducerTeltonika
