Ražotājs: TP-LINK

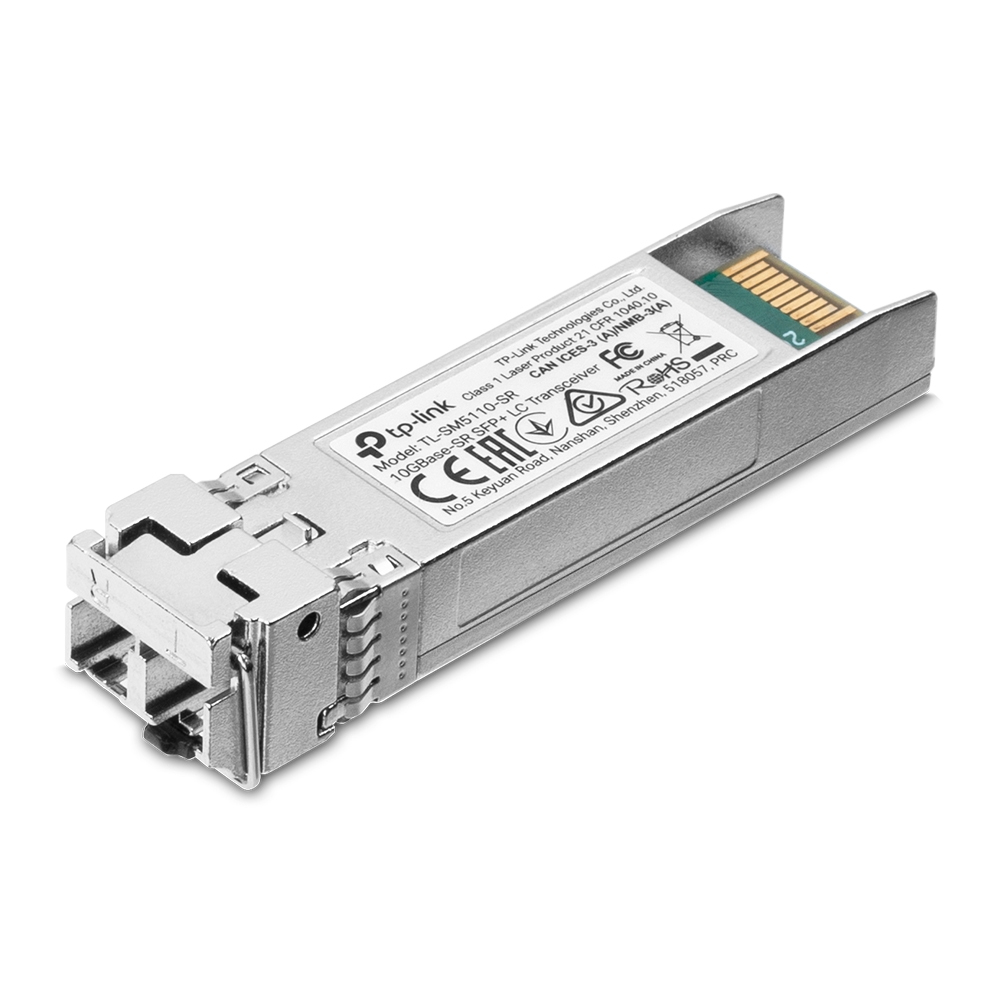

TP-LINK 10Gbase-SR SFP+ LC Transceiver

€31,45 ar pvn

Artikuls: ST04650531

Preces kods: TL-SM5110-SR

Ražotāja mājaslapa

Garantija: 12 mēneši

Pieejamība *

Daudzums:

Specifikācija

Form factor	SFP+
Type / wavelength	850 nm
Range	300 m
Fiber type	Multi-mode
Max transmission speed	10 (Gigabajty na sek.)
Width	85
Height	125
Depth	40
Weight	62
Description
Description	Moduł SFP+ LC 10GBase-SR TP-Link SM5110-SR TL-SM5110-SR pozwala na zwiększenie odległości transferowych w oparciu o łącze Ethernet 10G. Jest to wielomodowy moduł SFP+, 10GBASE-SR, 850 nm o wysokiej wydajności. Urządzenie obsługuje tryb pełnego dupleksu, połączenia Ethernet 10G na odległość 300 m lub 33 m z użyciem odpowiednio światłowodowych kabli 50/125 m lub 62,5/125 m. Wielomodowy moduł SFP+ LC Obsługa Hot-Plugging Obsługa funkcji DDM Zgodność z wymogami SFP+ MSA Zgodność z przełącznikami wyposażonymi w porty SFP+ 10G, w tym TL-SG3428X, TL-SG3428XMP JetStream.

SFP transceiver type	Fiber optic
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	LC (UPC)
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Maximum transfer distance	300 m
Wavelength	850 nm
Digital Diagnostics Monitoring (DDM)	Yes
Product colour	Silver
Hot-swap	Yes
Certification	FCC, CE
Input voltage	3.3 V
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Harmonized System (HS) code	85369010
Description
Description	TP-Link 10GBase-SR SFP+ LC Transceiver. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Certification: FCC, CE. Input voltage: 3.3 V

Description	TP-LINK 10Gbase-SR SFP+ LC Transceiver
VatType	VAT
Weight	0.062000000
Height	36.000000000
Width	81.000000000
Length	124.000000000
Description
Description	TP-LINK 10Gbase-SR SFP+ LC Transceiver 850nm Multi-mode LC Duplex Connector Up to 300m Distance

Gross depth (mm)	122.50
Gross height (mm)	38.50
Gross weight	0.06
Gross width (mm)	81.50
Net weight	0.04
Packing quantity	1.00
Paper/Pasteboard	20.00
Plastic (No PET)	5.00
Tare weight (kg)	0.03
Volume (m3)	0.00
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:5:2017-04-01
Warranty	60
Gross depth master carton	165.00
Gross width master carton	105.00
Gross height master carton	52.00
Net weight master carton	0.28
Tare weight master carton	0.14
Data transfer rate	10000
Wavelength	850
Connector type	LC/UPC
Producer product name	TL-SM5110-SR
Media type	Multi-Mode Fiber
Form factor	SFP+ Transceiver
Operating temperature	0 to 70
Producer product family	10GBase-SR SFP+ LC Transceiver
Other features	Hot-Pluggable with maximum flexibility, Supports Digital Diagnostic Monitoring (DDM), Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Auto MDI/MDI-X	No
Cable type	Multi-mode
Number of products included	1
Interface type	SFP+
Type	SFP+ module
Maximum operating distance	300
Compatibility	Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP
Combined (other)	29.0000
Producer	TP-LINK

Specifikācija

Form factor	SFP+
Type / wavelength	850 nm
Range	300 m
Fiber type	Multi-mode
Max transmission speed	10 (Gigabajty na sek.)
Width	85
Height	125
Depth	40
Weight	62
Description
Description	Moduł SFP+ LC 10GBase-SR TP-Link SM5110-SR TL-SM5110-SR pozwala na zwiększenie odległości transferowych w oparciu o łącze Ethernet 10G. Jest to wielomodowy moduł SFP+, 10GBASE-SR, 850 nm o wysokiej wydajności. Urządzenie obsługuje tryb pełnego dupleksu, połączenia Ethernet 10G na odległość 300 m lub 33 m z użyciem odpowiednio światłowodowych kabli 50/125 m lub 62,5/125 m. Wielomodowy moduł SFP+ LC Obsługa Hot-Plugging Obsługa funkcji DDM Zgodność z wymogami SFP+ MSA Zgodność z przełącznikami wyposażonymi w porty SFP+ 10G, w tym TL-SG3428X, TL-SG3428XMP JetStream.

SFP transceiver type	Fiber optic
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	LC (UPC)
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Maximum transfer distance	300 m
Wavelength	850 nm
Digital Diagnostics Monitoring (DDM)	Yes
Product colour	Silver
Hot-swap	Yes
Certification	FCC, CE
Input voltage	3.3 V
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Harmonized System (HS) code	85369010
Description
Description	TP-Link 10GBase-SR SFP+ LC Transceiver. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Certification: FCC, CE. Input voltage: 3.3 V

Description	TP-LINK 10Gbase-SR SFP+ LC Transceiver
VatType	VAT
Weight	0.062000000
Height	36.000000000
Width	81.000000000
Length	124.000000000
Description
Description	TP-LINK 10Gbase-SR SFP+ LC Transceiver 850nm Multi-mode LC Duplex Connector Up to 300m Distance

Gross depth (mm)	122.50
Gross height (mm)	38.50
Gross weight	0.06
Gross width (mm)	81.50
Net weight	0.04
Packing quantity	1.00
Paper/Pasteboard	20.00
Plastic (No PET)	5.00
Tare weight (kg)	0.03
Volume (m3)	0.00
Embeeded battery	No
WEEE tax	Yes
WEE classification	CL109:5:2017-04-01
Warranty	60
Gross depth master carton	165.00
Gross width master carton	105.00
Gross height master carton	52.00
Net weight master carton	0.28
Tare weight master carton	0.14
Data transfer rate	10000
Wavelength	850
Connector type	LC/UPC
Producer product name	TL-SM5110-SR
Media type	Multi-Mode Fiber
Form factor	SFP+ Transceiver
Operating temperature	0 to 70
Producer product family	10GBase-SR SFP+ LC Transceiver
Other features	Hot-Pluggable with maximum flexibility, Supports Digital Diagnostic Monitoring (DDM), Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Auto MDI/MDI-X	No
Cable type	Multi-mode
Number of products included	1
Interface type	SFP+
Type	SFP+ module
Maximum operating distance	300
Compatibility	Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP
Combined (other)	29.0000
Producer	TP-LINK
