    • Uni-T UT133B Handheld Digital Multimeter
    Ražotājs: UNI-T

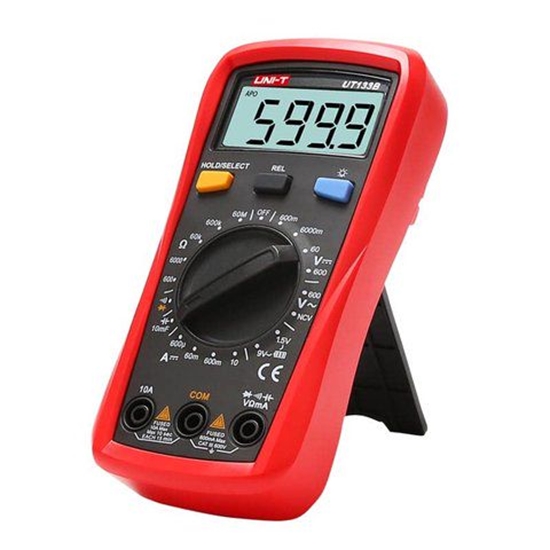

    Uni-T UT133B Handheld Digital Multimeter


    €23,67 ar pvn

    Artikuls: ST05741583
    Preces kods: UT133B
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL
    LV

    Specifikācija
    ManufacturerModelTypeDC VoltageAC voltageDC currentResistanceCapacitanceBattery testMaximum readingRange selectionFunctionsSafetyDrop testPower supplyWeightDimensionsDisplay dimensions
    Description

    Uni-T UT133B Handheld Digital Multimeter

    The Uni-T UT133B is a handy digital multimeter designed for everyday measurements in the electrical industry, combining a compact design with practical diagnostic features. The device uses a smart ADC chip, features a clear display, and is designed for comfortable use during regular operation. An additional advantage is its resistance to drops from heights of up to 2 meters, which increases its durability in daily use.

    Practical measurements and battery testing function

    The UT133B model allows for the measurement of DC voltage up to 600 V, AC voltage up to 600 V, DC current up to 10 A, resistance up to 60 MΩ, and capacitance up to 9.999 mF. What sets it apart from the UT133A model is its 1.5 V and 9 V battery test function, which facilitates quick checking of the most commonly used cells. Manual range switching allows the user to independently select measurement settings for a specific application.

    Features supporting convenient and safe operation

    The UT133B is equipped with a diode test, continuity buzzer, NCV function, Data Hold, LCD backlight, and automatic shut-off. The UT133 series also offers an audible alarm for voltage or current overload, a high-voltage warning, and features that enhance workplace safety. With a CAT II 600V safety rating, this model is well-suited for basic measurement tasks.

    Included

    • Handheld digital multimeter
    • Test leads
    • User manual

    Specifications

    Uni-T
    UT133B
    Digital multimeter
    600mV / 6000mV / 60V / 600V ±(0.5%+3)
    600V ±(1.2%+3)
    600uA / 60mA / 600mA / 10A ±(1.0%+3)
    600Ω / 6000Ω / 60kΩ / 600kΩ / 60MΩ ±(0.8%+2)
    9.999 nF / 99.99 nF / 999.9 nF / 9.999 µF / 99.99 µF / 999.9 µF / 9.999 mF ±(4.0%+5)
    1.5 V / 9 V ±(1.0%+2)
    6000
    Manual
    Diode test, continuity buzzer, NCV, Data Hold, LCD backlight, auto power off, overvoltage or overcurrent alarm, high voltage warning
    CAT II 600V
    2 m
    2x 1.5V battery (R03)
    255 g
    155 mm x 76.5 mm x 49 mm
    56.8 mm x 36.1 mm
    Description
    Uni-T UT133B handheld digital multimeter The Uni-T UT133B is a compact digital multimeter designed for everyday use in electrical installations and basic diagnostics. The device features an intelligent ADC circuit, a clear display, and a compact design that enhances ease of use during routine measurements. The model allows for measuring AC/DC voltage up to 600 V, DC current up to 10 A, resistance up to 60 MΩ, and capacitance up to 9.999 mF. An additional advantage is the 1.5 V and 9 V battery test function, which facilitates quick checking of the most commonly used cells. Manual range selection allows you to precisely adjust the settings to the measurement being performed. Features that enhance convenience and safety The UT133B is equipped with a diode test, continuity buzzer, NCV function, Data Hold, LCD backlight, and auto-off, which improve the comfort of daily use. Additional alarms warning of high voltage or range over-exceedance increase safety during use, and resistance to drops from heights of up to 2 meters enhances the device’s durability. The CAT II 600V safety category makes the multimeter well-suited for standard measurement and service work. Included Handheld digital multimeter Test leads User manual Specifications Manufacturer Uni-T Model UT133B Product type Digital multimeter DC voltage range 600 mV / 6000 mV / 60 V / 600 V ±(0.5% + 3) AC voltage range 600 V ±(1.2% + 3) DC current range 600 µA / 60 mA / 600 mA / 10 A ±(1.0% + 3) Resistance measurement range 600 Ω / 6000 Ω / 60 kΩ / 600 kΩ / 60 MΩ ±(0.8% + 2) Capacitance measurement range 9.999 nF / 99.99 nF / 999.9 nF / 9.999 µF / 99.99 µF / 999.9 µF / 9.999 mF ±(4.0% + 5) Battery test range 1.5 V / 9 V ±(1.0% + 2) Maximum display reading 6000 Range selection Manual Functions Diode test, continuity buzzer, NCV, Data Hold, LCD backlight, auto power off, overvoltage or overcurrent alarm, high voltage warning Measurement category CAT II 600V Drop resistance 2 m Power supply 2 × 1.5 V (R03) Weight 255 g Dimensions 155 × 76.5 × 49 mm Display dimensions 56.8 × 36.1 mm

    Specifikācija
    ManufacturerModelTypeDC VoltageAC voltageDC currentResistanceCapacitanceBattery testMaximum readingRange selectionFunctionsSafetyDrop testPower supplyWeightDimensionsDisplay dimensions
    Description

    Uni-T UT133B Handheld Digital Multimeter

    The Uni-T UT133B is a handy digital multimeter designed for everyday measurements in the electrical industry, combining a compact design with practical diagnostic features. The device uses a smart ADC chip, features a clear display, and is designed for comfortable use during regular operation. An additional advantage is its resistance to drops from heights of up to 2 meters, which increases its durability in daily use.

    Practical measurements and battery testing function

    The UT133B model allows for the measurement of DC voltage up to 600 V, AC voltage up to 600 V, DC current up to 10 A, resistance up to 60 MΩ, and capacitance up to 9.999 mF. What sets it apart from the UT133A model is its 1.5 V and 9 V battery test function, which facilitates quick checking of the most commonly used cells. Manual range switching allows the user to independently select measurement settings for a specific application.

    Features supporting convenient and safe operation

    The UT133B is equipped with a diode test, continuity buzzer, NCV function, Data Hold, LCD backlight, and automatic shut-off. The UT133 series also offers an audible alarm for voltage or current overload, a high-voltage warning, and features that enhance workplace safety. With a CAT II 600V safety rating, this model is well-suited for basic measurement tasks.

    Included

    • Handheld digital multimeter
    • Test leads
    • User manual

    Specifications

    Uni-T
    UT133B
    Digital multimeter
    600mV / 6000mV / 60V / 600V ±(0.5%+3)
    600V ±(1.2%+3)
    600uA / 60mA / 600mA / 10A ±(1.0%+3)
    600Ω / 6000Ω / 60kΩ / 600kΩ / 60MΩ ±(0.8%+2)
    9.999 nF / 99.99 nF / 999.9 nF / 9.999 µF / 99.99 µF / 999.9 µF / 9.999 mF ±(4.0%+5)
    1.5 V / 9 V ±(1.0%+2)
    6000
    Manual
    Diode test, continuity buzzer, NCV, Data Hold, LCD backlight, auto power off, overvoltage or overcurrent alarm, high voltage warning
    CAT II 600V
    2 m
    2x 1.5V battery (R03)
    255 g
    155 mm x 76.5 mm x 49 mm
    56.8 mm x 36.1 mm
    Description
    Uni-T UT133B handheld digital multimeter The Uni-T UT133B is a compact digital multimeter designed for everyday use in electrical installations and basic diagnostics. The device features an intelligent ADC circuit, a clear display, and a compact design that enhances ease of use during routine measurements. The model allows for measuring AC/DC voltage up to 600 V, DC current up to 10 A, resistance up to 60 MΩ, and capacitance up to 9.999 mF. An additional advantage is the 1.5 V and 9 V battery test function, which facilitates quick checking of the most commonly used cells. Manual range selection allows you to precisely adjust the settings to the measurement being performed. Features that enhance convenience and safety The UT133B is equipped with a diode test, continuity buzzer, NCV function, Data Hold, LCD backlight, and auto-off, which improve the comfort of daily use. Additional alarms warning of high voltage or range over-exceedance increase safety during use, and resistance to drops from heights of up to 2 meters enhances the device’s durability. The CAT II 600V safety category makes the multimeter well-suited for standard measurement and service work. Included Handheld digital multimeter Test leads User manual Specifications Manufacturer Uni-T Model UT133B Product type Digital multimeter DC voltage range 600 mV / 6000 mV / 60 V / 600 V ±(0.5% + 3) AC voltage range 600 V ±(1.2% + 3) DC current range 600 µA / 60 mA / 600 mA / 10 A ±(1.0% + 3) Resistance measurement range 600 Ω / 6000 Ω / 60 kΩ / 600 kΩ / 60 MΩ ±(0.8% + 2) Capacitance measurement range 9.999 nF / 99.99 nF / 999.9 nF / 9.999 µF / 99.99 µF / 999.9 µF / 9.999 mF ±(4.0% + 5) Battery test range 1.5 V / 9 V ±(1.0% + 2) Maximum display reading 6000 Range selection Manual Functions Diode test, continuity buzzer, NCV, Data Hold, LCD backlight, auto power off, overvoltage or overcurrent alarm, high voltage warning Measurement category CAT II 600V Drop resistance 2 m Power supply 2 × 1.5 V (R03) Weight 255 g Dimensions 155 × 76.5 × 49 mm Display dimensions 56.8 × 36.1 mm
