    • Uni-T UT336P Wireless Pressure Gauge
    Ražotājs: UNI-T

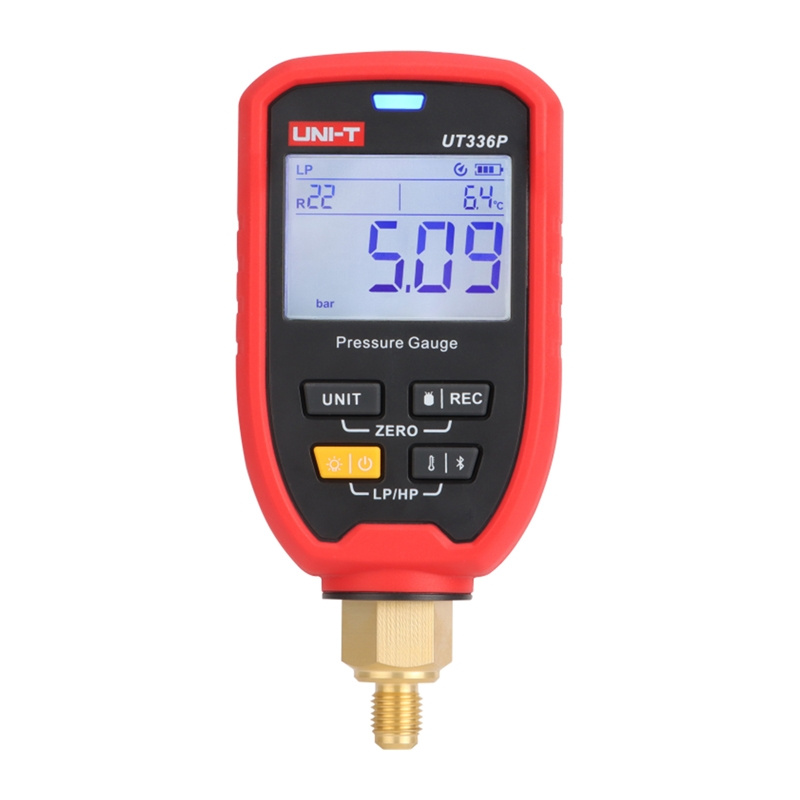

    Uni-T UT336P Wireless Pressure Gauge


    €75,13 ar pvn

    Artikuls: ST10472226
    Preces kods: UT336P
    Ražotāja mājaslapa
    Garantija: 12 mēneši
    *
    Noliktava Piegāde Daudzums Cena
    PL

    Specifikācija
    ManufacturerModelTypePressure rangePressure unitsTemperature unitsData logLogging intervalConnectivitySupported mediaFeaturesTemperature portConnectionProtection ratingPower supplyDimensionsWeightCertifications
    Description

    Uni-T UT336P Wireless Pressure Gauge

    The Uni-T UT336P wireless pressure gauge is a tool designed for use with refrigeration systems and heat pumps. It enables accurate pressure measurement and long-term monitoring of system operating parameters, facilitating the diagnosis and servicing of HVAC systems.

    Real-time system monitoring

    The UT336P model allows for pressure measurement in multiple units and supports a wide range of refrigerants. Thanks to Bluetooth connectivity and a mobile app, you can analyze data in real time and check parameters such as superheat and subcooling (using a temperature probe). The ability to store up to 8,000 measurements and the option to operate offline are ideal for long-term monitoring.

    Features to facilitate service work

    The device offers high and low pressure alarms, an adjustable data logging interval, and a backlit screen, which improves user comfort. Built-in LED indicators show the operating status, and the rugged design with an IP54 rating allows the device to be used in various conditions.

    Included in the set

    • Wireless pressure gauge
    • 3 AA batteries
    • Carrying case
    • Wrist strap
    • User manual

    Specifications

    Uni-T
    UT336P
    Wireless pressure gauge
    -1 ~ 60 bar ±0.5% FS
    bar, kg/cm², cmHg, psi, inHg, kPa, MPa
    °C / °F
    8,000 measurements
    1 s ~ 1 h
    Bluetooth (mobile app)
    10 in the device / 90+ in the app
    Data Hold, data logging, high and low pressure alarms, LCD backlight, pressure zeroing, auto power off, firmware update
    3.5 mm (compatible with UT-T19)
    1/4" SAE
    IP54
    3x AA batteries
    145 x 68 x 39 mm
    250 g
    CE, RoHS
    Description
    Uni-T UT336P wireless pressure gauge The Uni-T UT336P wireless pressure gauge is a tool designed for use with refrigeration systems and heat pumps. It enables accurate pressure measurement and long-term monitoring of system operating parameters, facilitating the diagnosis and servicing of HVAC systems. Real-time system monitoring The UT336P model allows for pressure measurement in multiple units and supports a wide range of refrigerants. Thanks to Bluetooth connectivity and a mobile app, you can analyze data in real time and check parameters such as superheat and subcooling (using a temperature probe). The ability to store up to 8,000 measurements and the option to operate offline are ideal for long-term monitoring. Features to facilitate service work The device offers high and low pressure alarms, an adjustable data logging interval, and a backlit screen, which improves user comfort. Built-in LED indicators show the operating status, and the rugged design with an IP54 rating allows the device to be used in various conditions. Included Wireless pressure gauge 3 AA batteries Carrying case Wrist strap User manual Specifications Manufacturer Uni-T Model UT336P Product type Wireless pressure gauge Pressure measurement range -1 – 60 bar ±0.5% FS Pressure units bar, kg/cm², cmHg, psi, inHg, kPa, MPa Temperature units °C, °F Data logging memory 8000 measurements Logging interval range 1 s – 1 h Connectivity Bluetooth (mobile app) Supported media types 10 on the device, 90+ via app Functions Data Hold, data logging, high and low pressure alarms, LCD backlight, pressure zeroing, auto-off, firmware update Temperature probe port 3.5 mm (compatible with UT-T19) Connector thread 1/4" SAE Protection rating IP54 Power supply 3 × AA batteries Dimensions 145 × 68 × 39 mm Weight 250 g Certifications CE, RoHS

    Specifikācija
    ManufacturerModelTypePressure rangePressure unitsTemperature unitsData logLogging intervalConnectivitySupported mediaFeaturesTemperature portConnectionProtection ratingPower supplyDimensionsWeightCertifications
    Description

    Uni-T UT336P Wireless Pressure Gauge

    The Uni-T UT336P wireless pressure gauge is a tool designed for use with refrigeration systems and heat pumps. It enables accurate pressure measurement and long-term monitoring of system operating parameters, facilitating the diagnosis and servicing of HVAC systems.

    Real-time system monitoring

    The UT336P model allows for pressure measurement in multiple units and supports a wide range of refrigerants. Thanks to Bluetooth connectivity and a mobile app, you can analyze data in real time and check parameters such as superheat and subcooling (using a temperature probe). The ability to store up to 8,000 measurements and the option to operate offline are ideal for long-term monitoring.

    Features to facilitate service work

    The device offers high and low pressure alarms, an adjustable data logging interval, and a backlit screen, which improves user comfort. Built-in LED indicators show the operating status, and the rugged design with an IP54 rating allows the device to be used in various conditions.

    Included in the set

    • Wireless pressure gauge
    • 3 AA batteries
    • Carrying case
    • Wrist strap
    • User manual

    Specifications

    Uni-T
    UT336P
    Wireless pressure gauge
    -1 ~ 60 bar ±0.5% FS
    bar, kg/cm², cmHg, psi, inHg, kPa, MPa
    °C / °F
    8,000 measurements
    1 s ~ 1 h
    Bluetooth (mobile app)
    10 in the device / 90+ in the app
    Data Hold, data logging, high and low pressure alarms, LCD backlight, pressure zeroing, auto power off, firmware update
    3.5 mm (compatible with UT-T19)
    1/4" SAE
    IP54
    3x AA batteries
    145 x 68 x 39 mm
    250 g
    CE, RoHS
    Description
    Uni-T UT336P wireless pressure gauge The Uni-T UT336P wireless pressure gauge is a tool designed for use with refrigeration systems and heat pumps. It enables accurate pressure measurement and long-term monitoring of system operating parameters, facilitating the diagnosis and servicing of HVAC systems. Real-time system monitoring The UT336P model allows for pressure measurement in multiple units and supports a wide range of refrigerants. Thanks to Bluetooth connectivity and a mobile app, you can analyze data in real time and check parameters such as superheat and subcooling (using a temperature probe). The ability to store up to 8,000 measurements and the option to operate offline are ideal for long-term monitoring. Features to facilitate service work The device offers high and low pressure alarms, an adjustable data logging interval, and a backlit screen, which improves user comfort. Built-in LED indicators show the operating status, and the rugged design with an IP54 rating allows the device to be used in various conditions. Included Wireless pressure gauge 3 AA batteries Carrying case Wrist strap User manual Specifications Manufacturer Uni-T Model UT336P Product type Wireless pressure gauge Pressure measurement range -1 – 60 bar ±0.5% FS Pressure units bar, kg/cm², cmHg, psi, inHg, kPa, MPa Temperature units °C, °F Data logging memory 8000 measurements Logging interval range 1 s – 1 h Connectivity Bluetooth (mobile app) Supported media types 10 on the device, 90+ via app Functions Data Hold, data logging, high and low pressure alarms, LCD backlight, pressure zeroing, auto-off, firmware update Temperature probe port 3.5 mm (compatible with UT-T19) Connector thread 1/4" SAE Protection rating IP54 Power supply 3 × AA batteries Dimensions 145 × 68 × 39 mm Weight 250 g Certifications CE, RoHS
