| 2.4 GHz | Yes |
| 5 GHz | No |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Frequency band | 2.4 - 2.483 GHz |
| Bandwidth | 2.4 GHz |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Maximum outdoor range | 5000 m |
| Receiver sensitivity | 802.11b:
11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm
-802.11g:
54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm
802.11n:
MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm,
MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm,
MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm,
MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm,
MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| Management protocols | TDMA |
| Web-based management | Yes |
| Management platform | Pharos Control |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.8 A |
| Output voltage | 24 V |
| Output current | 1 A |
| Power consumption (max) | 10.5 W |
| Placement | Wall |
| Product colour | White |
| International Protection (IP) code | IPX5 |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
- RoHS, IPX5 |
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 1 |
| Antenna gain level (max) | 9 dBi |
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros |
| Processor frequency | 560 MHz |
| Flash memory | 8 MB |
| Internal memory | 64 MB |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Width | 224 mm |
| Depth | 79 mm |
| Height | 60 mm |
| Cables included | AC |
| Mounting kit | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Harmonized System (HS) code | 85176990 |
| Description |

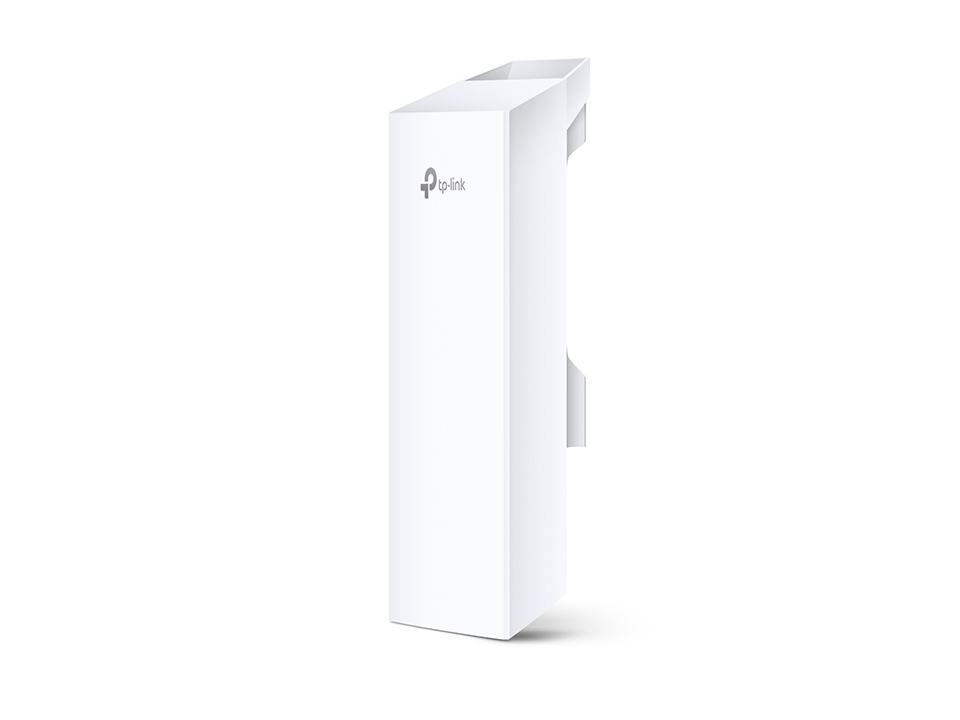

| TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE. Maximum data transfer rate: 300 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Frequency band: 2.4 - 2.483 GHz. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Management protocols: TDMA. Management platform: Pharos Control. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 0.8 A |
