Ražotājs: ZALMAN

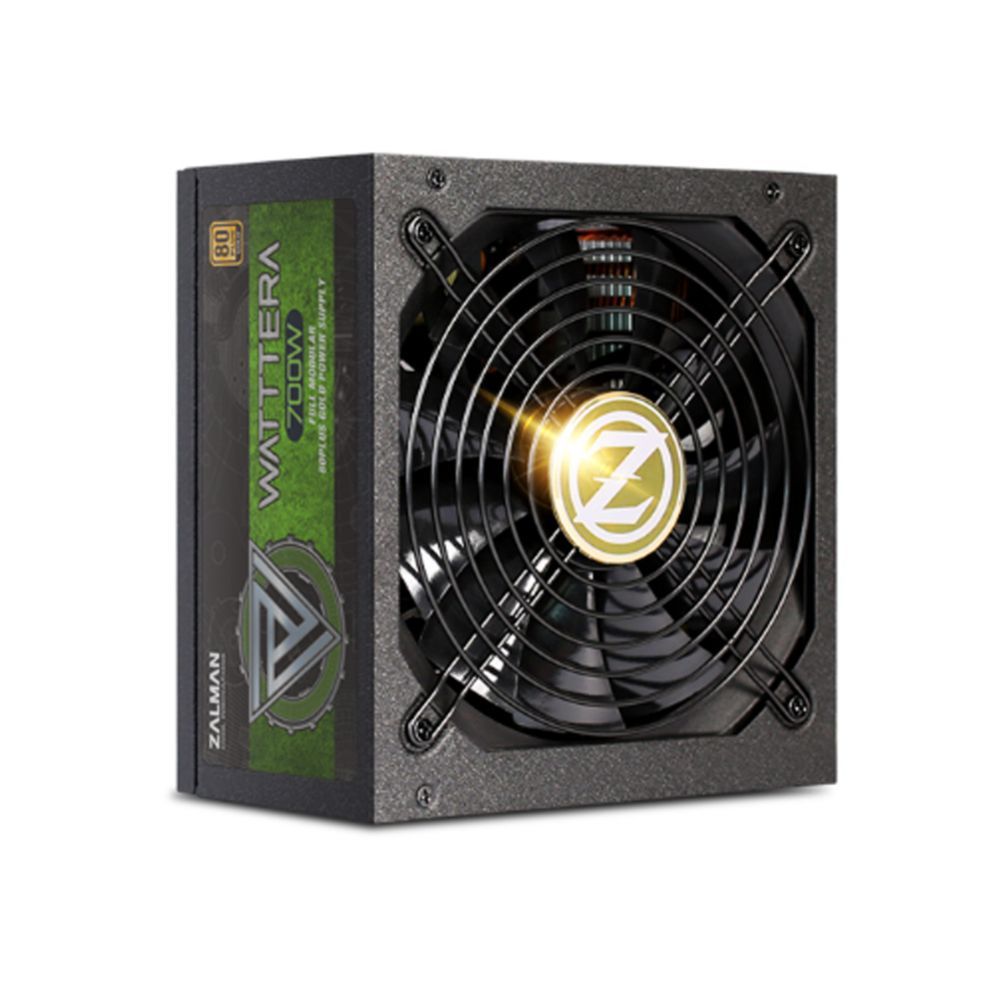

Zalman ZM700-EBTII power supply unit 700 W 24-pin ATX ATX Black

€136,17 ar pvn

Artikuls: ST05051978

Preces kods: ZM700-EBTII

Ražotāja mājaslapa

Pieejamība *

	Noliktava	Piegāde	Daudzums	Cena
	LV	2 - 5 dienās	8	€136,17 ar pvn

Daudzums:

Specifikācijas

Specifikācija

Total power	700 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	4.5 - 9 A
Power factor	99.9
Power Factor Correction (PFC) type	Active
Combined power (+12V)	696 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	58 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Efficiency	91%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector	24-pin ATX
Peripheral (Molex) power connectors (4-pin)	3
Motherboard power cable length	60 cm
Number of SATA power connectors	8
SATA power cable length	600 mm
Peripheral (Molex) power cable length	600 mm
EPS power connector (8-pin)	Yes
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	5
PCI Express power cable length	55 cm
CPU power connector (4+4 pin)	Yes
CPU power cable length	55 cm
ATX Power connector (24-pin)	Yes
Floppy drive power connector	1
Cabling type	Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	2.31
Silent mode	Yes
Bearing technology	Ball bearing
Mean time between failures (MTBF)	100000 h
Certification	UL, FCC, KC, CE, CB, RoHS, EAC
Product colour	Black
Cooling type	Active
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Fan speed	1000 - 1900 RPM
Fan location	Top
On/off switch	Yes
Operating temperature (T-T)	0 - 40 °C
Width	150 mm
Depth	160 mm
Height	86 mm
Weight	3.08 kg
Description
Description	Zalman ZM700-EBTII. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 160 mm, Height: 86 mm

Specifikācija

Total power	700 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	4.5 - 9 A
Power factor	99.9
Power Factor Correction (PFC) type	Active
Combined power (+12V)	696 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	58 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Efficiency	91%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector	24-pin ATX
Peripheral (Molex) power connectors (4-pin)	3
Motherboard power cable length	60 cm
Number of SATA power connectors	8
SATA power cable length	600 mm
Peripheral (Molex) power cable length	600 mm
EPS power connector (8-pin)	Yes
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (6+2 pin)	5
PCI Express power cable length	55 cm
CPU power connector (4+4 pin)	Yes
CPU power cable length	55 cm
ATX Power connector (24-pin)	Yes
Floppy drive power connector	1
Cabling type	Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	2.31
Silent mode	Yes
Bearing technology	Ball bearing
Mean time between failures (MTBF)	100000 h
Certification	UL, FCC, KC, CE, CB, RoHS, EAC
Product colour	Black
Cooling type	Active
Fan diameter	13.5 cm
Number of fans	1 fan(s)
Fan speed	1000 - 1900 RPM
Fan location	Top
On/off switch	Yes
Operating temperature (T-T)	0 - 40 °C
Width	150 mm
Depth	160 mm
Height	86 mm
Weight	3.08 kg
Description
Description	Zalman ZM700-EBTII. Total power: 700 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 160 mm, Height: 86 mm
