    • 1-kanaowy modu przecznika ZigBee ze stykiem beznapiciowym Avatto ZWSM16-DC32V-1
    Производитель: AVATTO

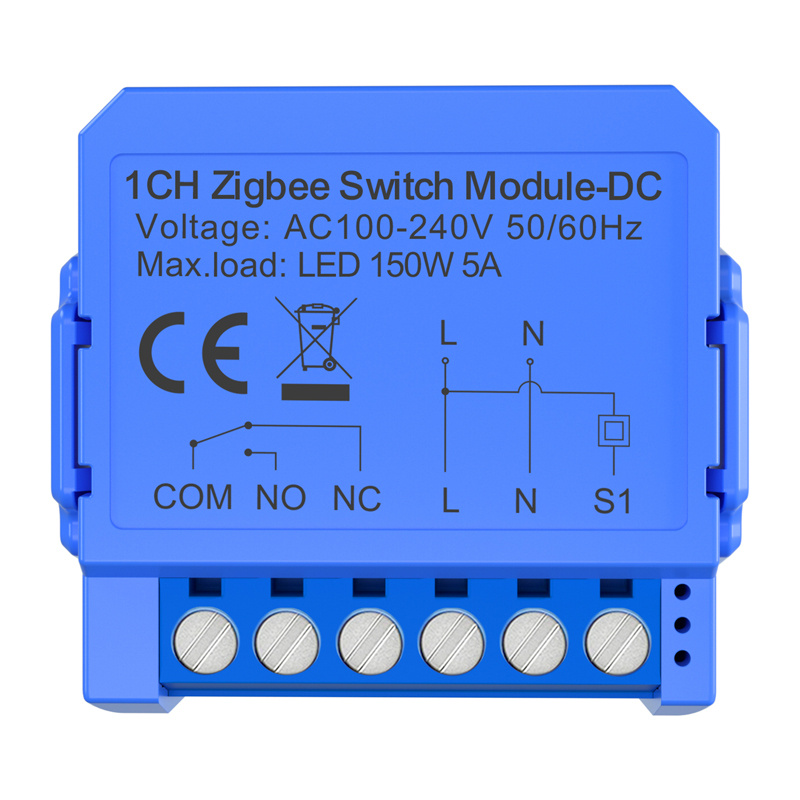

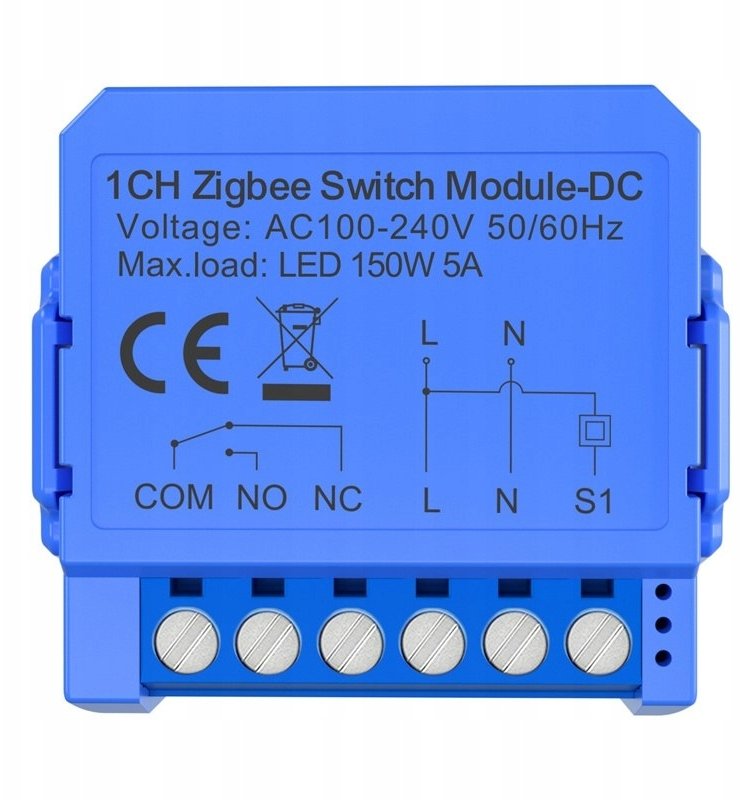

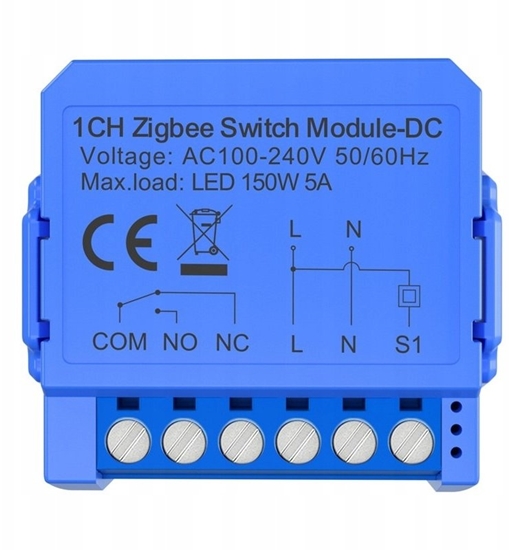

    1-kanaowy modu przecznika ZigBee ze stykiem beznapiciowym Avatto ZWSM16-DC32V-1


    €14,96 с налогом

    Артикул: ST09818453
    Код производителя: ZWSM16-DC32V-1
    Сайт производителя
    гарантия: 12 месяцы
    *
    Склад Доставка Наличие Цена
    PL
    PL

    Характеристики
    ManufacturerModelTypePower supplyMaximum loadOperating frequencyCommunication standardOperating rangeOperating temperatureDegree of protectionDimensionsCertifications
    Description

    1-channel ZigBee switch module with dry contact Avatto ZWSM16-DC32V-1

    The Avatto ZWSM16-DC32V-1 module is a smart switch with dry contact that allows you to control lights, blinds, pumps or other low-voltage devices in home automation. With ZigBee 3.0 connectivity, it offers stable communication, instant response to commands and the ability to work with Tuya Smart and Smart Life systems. With its help, you can create automatic scenarios, schedules and operate equipment by voice through Amazon Alexa or Google Assistant (with ZigBee gateway).

    Low-voltage reliability

    The Avatto ZWSM16-DC32V-1 is designed for low-voltage systems - it supports 12-32V DC power and a maximum load of 150W / 5A. High quality workmanship and CE and RoHS certifications confirm the safety of use. Thanks to its compact dimensions, the module fits perfectly into installation boxes or system enclosures, allowing you to upgrade your existing installation without replacing wiring.

    Control from anywhere

    The Tuya Smart or Smart Life mobile app gives you access to the device from your smartphone - you can turn on, turn off and schedule devices at any time. The module remembers its last state after a power outage, and the sharing function allows you to control it for other users as well. Full ZigBee integration allows you to operate the entire smart home ecosystem from a single app.

    Quick installation and configuration

    Installation of the Avatto ZWSM16-DC32V-1 is simple and intuitive. All you need to do is place the module in the box, connect the wires according to the diagram and connect it to the ZigBee gateway. Pairing is done by pressing the reset button or toggling the traditional switch five times - the LED on the module will then start flashing rapidly, indicating that it is ready for pairing. Once the configuration is complete, the module is ready for operation and can be controlled wirelessly.

    Versatile application

    Avatto ZWSM16-DC32V-1 ZigBee module is used wherever precise control of low-voltage devices is needed - for example, in 12/24V LED lighting systems, control of pumps, actuators or roller shutters. Thanks to ZigBee 3.0 communication, it works with a wide range of gateways and sensors to create a coherent and energy-efficient building automation system.

    Included

    • Avatto ZWSM16-DC32V-1 ZigBee switch module
    • Mounting bracket with clip
    • User manual

    Avatto
    ZWSM16-DC32V-1
    1-channel ZigBee switch module (Dry Contact)
    DC 12-32 V
    150 W / 5 A
    2.412 GHz - 2.484 GHz
    IEEE 802.15.4 (ZigBee 3.0)
    Up to 30 m (indoors)
    -10 °C ~ +40 °C
    IP20
    39 × 39 × 19.4 mm
    CE, RoHS
    Description
    Avatto ZWSM16-DC32V-1 1-Channel ZigBee Switch Module with Dry Contact The Avatto ZWSM16-DC32V-1 module is a smart switch with a dry contact that allows you to control lighting, blinds, pumps, or other low-voltage devices in home automation. Thanks to ZigBee 3.0 connectivity, it offers stable communication, instant response to commands, and compatibility with Tuya Smart and Smart Life systems. With it, you can create automatic scenarios, schedules, and control devices using voice commands via Amazon Alexa or Google Assistant (with a ZigBee gateway). Low-Voltage Reliability The Avatto ZWSM16-DC32V-1 is designed for use in low-voltage systems—it supports 12–32 V DC power and a maximum load of 150 W / 5 A. High-quality construction and CE and RoHS certifications confirm its safety. Thanks to its compact dimensions, the module fits perfectly into installation boxes or system enclosures, allowing for the modernization of existing installations without the need to replace wiring. Control from Anywhere The Tuya Smart or Smart Life mobile app provides access to the device from your smartphone—you can turn devices on, off, and schedule their operation at any time. The module remembers its last state after a power outage, and the sharing feature allows other users to control it as well. Full integration with the ZigBee system allows you to manage your entire smart home ecosystem from a single app. Quick installation and setup Installing the Avatto ZWSM16-DC32V-1 is simple and intuitive. Just place the module in the junction box, connect the wires according to the diagram, and pair it with the ZigBee gateway. Pairing is initiated by pressing the reset button or toggling a traditional switch five times—the LED on the module will then begin to flash rapidly, indicating readiness for pairing. Once configuration is complete, the module is ready for use and can be controlled wirelessly. Versatile Application The Avatto ZWSM16-DC32V-1 ZigBee module is suitable for use wherever precise control of low-voltage devices is required—e.g., in 12/24 V LED lighting systems, pump control, actuators, or roller shutters. Thanks to ZigBee 3.0 communication, it works with a wide range of gateways and sensors, creating a cohesive and energy-efficient building automation system. Included Avatto ZWSM16-DC32V-1 ZigBee Switch Module Mounting bracket with clip User manual   Manufacturer Avatto Model ZWSM16-DC32V-1 Type 1-channel ZigBee switch module (Dry Contact) Power supply DC 12–32 V Maximum load 150 W / 5 A Operating frequency 2.412 GHz – 2.484 GHz Communication standard IEEE 802.15.4 (ZigBee 3.0) Operating range up to 30 m (indoors) Operating temperature –10 °C ~ +40 °C Protection rating IP20 Dimensions 39 × 39 × 19.4 mm Certifications CE, RoHS

    Характеристики
    ManufacturerModelTypePower supplyMaximum loadOperating frequencyCommunication standardOperating rangeOperating temperatureDegree of protectionDimensionsCertifications
    Description

    1-channel ZigBee switch module with dry contact Avatto ZWSM16-DC32V-1

    The Avatto ZWSM16-DC32V-1 module is a smart switch with dry contact that allows you to control lights, blinds, pumps or other low-voltage devices in home automation. With ZigBee 3.0 connectivity, it offers stable communication, instant response to commands and the ability to work with Tuya Smart and Smart Life systems. With its help, you can create automatic scenarios, schedules and operate equipment by voice through Amazon Alexa or Google Assistant (with ZigBee gateway).

    Low-voltage reliability

    The Avatto ZWSM16-DC32V-1 is designed for low-voltage systems - it supports 12-32V DC power and a maximum load of 150W / 5A. High quality workmanship and CE and RoHS certifications confirm the safety of use. Thanks to its compact dimensions, the module fits perfectly into installation boxes or system enclosures, allowing you to upgrade your existing installation without replacing wiring.

    Control from anywhere

    The Tuya Smart or Smart Life mobile app gives you access to the device from your smartphone - you can turn on, turn off and schedule devices at any time. The module remembers its last state after a power outage, and the sharing function allows you to control it for other users as well. Full ZigBee integration allows you to operate the entire smart home ecosystem from a single app.

    Quick installation and configuration

    Installation of the Avatto ZWSM16-DC32V-1 is simple and intuitive. All you need to do is place the module in the box, connect the wires according to the diagram and connect it to the ZigBee gateway. Pairing is done by pressing the reset button or toggling the traditional switch five times - the LED on the module will then start flashing rapidly, indicating that it is ready for pairing. Once the configuration is complete, the module is ready for operation and can be controlled wirelessly.

    Versatile application

    Avatto ZWSM16-DC32V-1 ZigBee module is used wherever precise control of low-voltage devices is needed - for example, in 12/24V LED lighting systems, control of pumps, actuators or roller shutters. Thanks to ZigBee 3.0 communication, it works with a wide range of gateways and sensors to create a coherent and energy-efficient building automation system.

    Included

    • Avatto ZWSM16-DC32V-1 ZigBee switch module
    • Mounting bracket with clip
    • User manual

    Avatto
    ZWSM16-DC32V-1
    1-channel ZigBee switch module (Dry Contact)
    DC 12-32 V
    150 W / 5 A
    2.412 GHz - 2.484 GHz
    IEEE 802.15.4 (ZigBee 3.0)
    Up to 30 m (indoors)
    -10 °C ~ +40 °C
    IP20
    39 × 39 × 19.4 mm
    CE, RoHS
    Description
    Avatto ZWSM16-DC32V-1 1-Channel ZigBee Switch Module with Dry Contact The Avatto ZWSM16-DC32V-1 module is a smart switch with a dry contact that allows you to control lighting, blinds, pumps, or other low-voltage devices in home automation. Thanks to ZigBee 3.0 connectivity, it offers stable communication, instant response to commands, and compatibility with Tuya Smart and Smart Life systems. With it, you can create automatic scenarios, schedules, and control devices using voice commands via Amazon Alexa or Google Assistant (with a ZigBee gateway). Low-Voltage Reliability The Avatto ZWSM16-DC32V-1 is designed for use in low-voltage systems—it supports 12–32 V DC power and a maximum load of 150 W / 5 A. High-quality construction and CE and RoHS certifications confirm its safety. Thanks to its compact dimensions, the module fits perfectly into installation boxes or system enclosures, allowing for the modernization of existing installations without the need to replace wiring. Control from Anywhere The Tuya Smart or Smart Life mobile app provides access to the device from your smartphone—you can turn devices on, off, and schedule their operation at any time. The module remembers its last state after a power outage, and the sharing feature allows other users to control it as well. Full integration with the ZigBee system allows you to manage your entire smart home ecosystem from a single app. Quick installation and setup Installing the Avatto ZWSM16-DC32V-1 is simple and intuitive. Just place the module in the junction box, connect the wires according to the diagram, and pair it with the ZigBee gateway. Pairing is initiated by pressing the reset button or toggling a traditional switch five times—the LED on the module will then begin to flash rapidly, indicating readiness for pairing. Once configuration is complete, the module is ready for use and can be controlled wirelessly. Versatile Application The Avatto ZWSM16-DC32V-1 ZigBee module is suitable for use wherever precise control of low-voltage devices is required—e.g., in 12/24 V LED lighting systems, pump control, actuators, or roller shutters. Thanks to ZigBee 3.0 communication, it works with a wide range of gateways and sensors, creating a cohesive and energy-efficient building automation system. Included Avatto ZWSM16-DC32V-1 ZigBee Switch Module Mounting bracket with clip User manual   Manufacturer Avatto Model ZWSM16-DC32V-1 Type 1-channel ZigBee switch module (Dry Contact) Power supply DC 12–32 V Maximum load 150 W / 5 A Operating frequency 2.412 GHz – 2.484 GHz Communication standard IEEE 802.15.4 (ZigBee 3.0) Operating range up to 30 m (indoors) Operating temperature –10 °C ~ +40 °C Protection rating IP20 Dimensions 39 × 39 × 19.4 mm Certifications CE, RoHS
