Производитель: AJAX

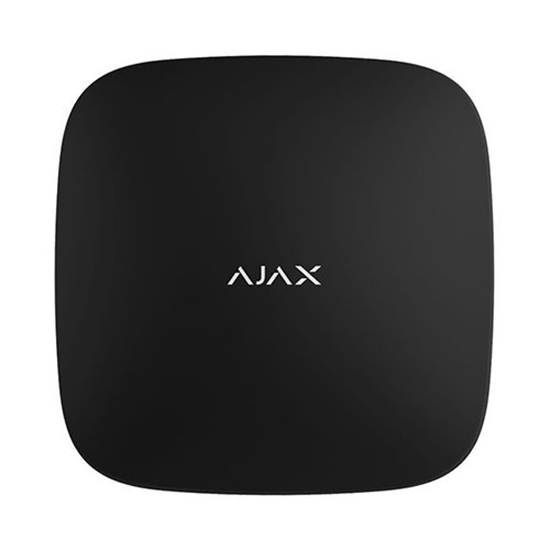

Ajax Hub Plus USB Hub

€269,39 с налогом

Артикул: ST06986336

Код производителя: 000012233

Сайт производителя

Stock *

Склад	Доставка	Наличие	Цена
LT	2 - 4 дня	4	€269,39 с налогом
LV	2 - 5 дня	4	€297,19 с налогом

Количество:

Specifications

Характеристики

Details 1
Details 2

Weight	0.35
Gross weight	0.52
Description
	Ajax Hub Plus (000012233) is a second-generation intelligent control panel for the Ajax wireless security system. It is designed to protect large premises such as homes, offices, and shops. Key Specifications: Connected Devices: up to 150 sensors and 50 cameras. Users: up to 99 users and 25 groups. Communication Channels: Ethernet, Wi-Fi (2.4 GHz, 802.11 b/g/n), dual SIM GSM module (2G: GSM900/DCS1800, 3G: WCDMA 900/2100). Radio Range: up to 2000 m via Jeweller protocol. Processor: ARM with Hub OS. Memory: increased RAM and flash memory capacity. Power Supply: DC 12 V, Li-Ion 2 Ah battery (up to 16 hours of backup). Operating Temperature: from -10 °C to +40 °C. Dimensions: 162.7 × 162.7 × 35.9 mm. Weight: 350 g. Notification Types: push, SMS, calls. Alarm Transmission Time: 0.15 s. Management System: remote control via mobile apps for iOS, Android, macOS, and Windows.
	Ajax Hub Plus (000012233) ir otrās paaudzes viedais drošības sistēmas vadības panelis. Tas ir paredzēts lielu telpu, piemēram, māju, biroju un veikalu aizsardzībai. Galvenās īpašības: Pievienojamās ierīces: līdz 150 sensoriem un 50 kamerām. Lietotāji: līdz 99 lietotājiem un 25 grupām. Saziņas kanāli: Ethernet, Wi-Fi (2.4 GHz, 802.11 b/g/n), divu SIM karšu GSM modulis (2G: GSM900/DCS1800, 3G: WCDMA 900/2100). Radio darbības attālums: līdz 2000 m, izmantojot Jeweller protokolu. Procesors: ARM ar Hub OS. Atmiņa: palielināta RAM un flash atmiņas ietilpība. Barošana: DC 12 V, Li-Ion akumulators 2 Ah (līdz 16 stundām rezerves darbības). Darba temperatūra: no -10 °C līdz +40 °C. Izmēri: 162.7 × 162.7 × 35.9 mm. Svars: 350 g. Paziņojumu veidi: push, SMS, zvani. Trauksmes pārsūtīšanas laiks: 0.15 s. Vadības sistēma: attālināta vadība, izmantojot mobilās lietotnes iOS, Android, macOS un Windows.
	Ajax Hub Plus (000012233) — интеллектуальный центральный блок второго поколения для беспроводной системы безопасности Ajax. Предназначен для защиты крупных объектов, таких как дома, офисы и магазины. Основные характеристики: Подключаемые устройства: до 150 датчиков и 50 камер. Пользователи: до 99 пользователей и 25 групп. Каналы связи: Ethernet, Wi-Fi (2.4 GHz, 802.11 b/g/n), двухслотовый GSM-модуль (2G: GSM900/DCS1800, 3G: WCDMA 900/2100). Радиус действия: до 2000 м по протоколу Jeweller. Процессор: ARM с ОС Hub OS. Память: увеличенная ёмкость оперативной и флеш-памяти. Питание: DC 12 V, Li-Ion аккумулятор 2 А·ч (до 16 часов работы в автономном режиме). Температурный диапазон: от -10 °C до +40 °C. Габариты: 162.7 × 162.7 × 35.9 мм. Вес: 350 г. Типы уведомлений: push, SMS, звонки. Скорость передачи тревоги: 0.15 с. Система управления: удалённое управление через мобильные приложения для iOS, Android, macOS и Windows.

Description

Second-generation intelligent control panel with four communication channels, a new powerful processor, tripled RAM capacity and douled flash memory capacity. The Hu Plus monitors the operation of all Aja detectors and instantly alerts the owner and the security company. Authentication to prevent forgeryJamming detection and communication channels encryptionTampering alarmFunctions:Uses Wi-Fi, Ethernet, WCDMA and GSM to send alarms to the Central Monitoring Station and the system’s owner.Sends a notification in case of electrical power loss and operates for up to 16 hours from attery ackup.Checks the functionality of detectors at least every 12 seconds.Protects large areas:The Hu Plus is designed to protect large facilities with a great numer of rooms and people. New powerful processor and increased memory capacity have epanded the capailities of the control panel: up to 150 detectors and 50 cameras can e connected to the Hu and you can add 99 users and create 25 groups for room security management.Uses all possile alarm transmission methods:The Hu Plus is the asolute leader in field in the numer of communication channels: the control panel can e connected to the Internet via Wi-Fi, Ethernet, WCDMA, and GSM. Taken together, these functions ensure ultra-stale connection and instant alarm sending to the owner’s smartphone and the Central Monitoring Station.Alarms via calls, SMS and push notificationsSynchronized operation of all communication channelsDirect connection with central monitoring stationsIncreases staility y times:The Hu Plus is equipped with a GSM module with two SIM-card slots that support 2G and 3G networks. Now you can use SIM-cards of two different communications providers without any risk of communications failures. The Hu instantly switches etween 2G and 3G networks. If one SIM card does not respond, the second one is activated automatically.Improved reliaility:The Hu Plus makes it possile to use redundant Internet connection y connecting the central unit to networks of two independent communications providers: the main — via Ethernet, and the ackup — via Wi-Fi. If connection of one provider fails, the hu will stay connected and continue monitoring the situation at the site.Simplifies installation and set upThe Hu Plus has a Wi-Fi module now, so it is not necessary to lay a cale for connection to the router. The control panel is ready to operate straight out the o. It is set using the moile application, and the detectors are connected with just one click. The device can e mounted in just a few minutes using the SmartBracket mount.Mounted in 5 minutesPlaced in any room within a Wi-Fi signal rangeMoile application for configuring and testingTechnical specification: Classification: Intelligent central unit of the security system with Wi-Fi and Ethernet modules, and dual SIM.Maimum numer of devices connected to the hu: 150Maimum numer of cameras connected to the hu: 50Maimum numer of users: 50Maimum numer of rooms: 50Maimum numer of groups: 25Moile application: iOS 9.1 and later Android .1 and laterCommunication channels: EthernetWi-Fi 2. GHz (802.11 gn)2G (85090018001900 MHz)3G (WCDMA 9002100 (B8B1))Alarm signal: Delivery time: 0.15 sTypes of notifications: SMS, call, pushSwitching etween 2G and 3G: InstantSwitching etween SIM cards: minutesCommunication with the CMS: Contact IDProcessor: ARMOperating system: Hu OSPower supply: Mains supply: 110–20 VBattery ackup: Li-Ion 2 A*hUp to 16 hours of attery life when Ethernet and Wi-Fi connections are disaled.Operating temperature range: -10°C to +0°CRemote set up: +Dimensions: 162.7×162.7×35.9 mmWeight: 350 gWarranty: Replacement and repair within 2 months of the date of sale. Batteries are not covered under warranty.Set includes:Aja Hu Plus intelligent central unitPower caleEthernet caleInstallation kitSIM cards (depending on region)User’s guide

Характеристики

Details 1
Details 2

Weight	0.35
Gross weight	0.52
Description
	Ajax Hub Plus (000012233) is a second-generation intelligent control panel for the Ajax wireless security system. It is designed to protect large premises such as homes, offices, and shops. Key Specifications: Connected Devices: up to 150 sensors and 50 cameras. Users: up to 99 users and 25 groups. Communication Channels: Ethernet, Wi-Fi (2.4 GHz, 802.11 b/g/n), dual SIM GSM module (2G: GSM900/DCS1800, 3G: WCDMA 900/2100). Radio Range: up to 2000 m via Jeweller protocol. Processor: ARM with Hub OS. Memory: increased RAM and flash memory capacity. Power Supply: DC 12 V, Li-Ion 2 Ah battery (up to 16 hours of backup). Operating Temperature: from -10 °C to +40 °C. Dimensions: 162.7 × 162.7 × 35.9 mm. Weight: 350 g. Notification Types: push, SMS, calls. Alarm Transmission Time: 0.15 s. Management System: remote control via mobile apps for iOS, Android, macOS, and Windows.
	Ajax Hub Plus (000012233) ir otrās paaudzes viedais drošības sistēmas vadības panelis. Tas ir paredzēts lielu telpu, piemēram, māju, biroju un veikalu aizsardzībai. Galvenās īpašības: Pievienojamās ierīces: līdz 150 sensoriem un 50 kamerām. Lietotāji: līdz 99 lietotājiem un 25 grupām. Saziņas kanāli: Ethernet, Wi-Fi (2.4 GHz, 802.11 b/g/n), divu SIM karšu GSM modulis (2G: GSM900/DCS1800, 3G: WCDMA 900/2100). Radio darbības attālums: līdz 2000 m, izmantojot Jeweller protokolu. Procesors: ARM ar Hub OS. Atmiņa: palielināta RAM un flash atmiņas ietilpība. Barošana: DC 12 V, Li-Ion akumulators 2 Ah (līdz 16 stundām rezerves darbības). Darba temperatūra: no -10 °C līdz +40 °C. Izmēri: 162.7 × 162.7 × 35.9 mm. Svars: 350 g. Paziņojumu veidi: push, SMS, zvani. Trauksmes pārsūtīšanas laiks: 0.15 s. Vadības sistēma: attālināta vadība, izmantojot mobilās lietotnes iOS, Android, macOS un Windows.
	Ajax Hub Plus (000012233) — интеллектуальный центральный блок второго поколения для беспроводной системы безопасности Ajax. Предназначен для защиты крупных объектов, таких как дома, офисы и магазины. Основные характеристики: Подключаемые устройства: до 150 датчиков и 50 камер. Пользователи: до 99 пользователей и 25 групп. Каналы связи: Ethernet, Wi-Fi (2.4 GHz, 802.11 b/g/n), двухслотовый GSM-модуль (2G: GSM900/DCS1800, 3G: WCDMA 900/2100). Радиус действия: до 2000 м по протоколу Jeweller. Процессор: ARM с ОС Hub OS. Память: увеличенная ёмкость оперативной и флеш-памяти. Питание: DC 12 V, Li-Ion аккумулятор 2 А·ч (до 16 часов работы в автономном режиме). Температурный диапазон: от -10 °C до +40 °C. Габариты: 162.7 × 162.7 × 35.9 мм. Вес: 350 г. Типы уведомлений: push, SMS, звонки. Скорость передачи тревоги: 0.15 с. Система управления: удалённое управление через мобильные приложения для iOS, Android, macOS и Windows.

Description
