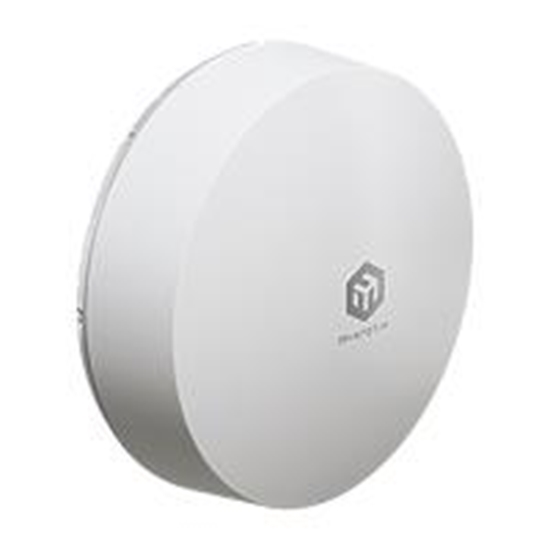

Wireless Router|MIKROTIK|SIM card slot Yes|3G Yes|4G Yes|5G Yes|Dual SIM support Yes|1xLAN ports|ATLGM&RG520F-EU

ATLGM&RG520F-EU

IP66

• 3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
• 3G bands 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
• LTE Category 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
• MIMO DL 4x4
• LTE FDD bands 20 (800MHz) / 28 (700MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 1 (2100MHz) / 32 (1500 MHz)
• LTE TDD bands 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700 MHz)
• 5G NSA FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
• 5G NSA TDD bands 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 76 (1500 MHz) / 38 (2600 MHz) / 75 (1500 MHz)
• 5G SA FDD bands 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
• 5G SA TDD bands 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) / 78 (3500 MHz)
• TAC 86945405

• Number of DC inputs 1 (PoE-IN)
• Max power consumption 10 W
• Max power consumption without attachments 10 W
• PoE in 802.3af/at
• Cooling type Passive
• PoE in input Voltage 12-56 V

• Temperatura otoczenia -40°C do 70°C

• CE
• EAC
• ROHS

• Zasilacz 24 V 0,8 A
• Iniektor Gigabit PoE
• 2 x Zacisk

• Architektura ARM 64-bit
• CPU 88F3720
• Liczba rdzeni procesora: 2
• Nominalna częstotliwość procesora: 800 MHz
• Licencja RouterOS: 3
• System operacyjny RouterOS v7
• Rozmiar pamięci RAM: 512 MB
• Rozmiar pamięci masowej: 32 MB
• Typ pamięci: FLASH
• MTBF: około 200 000 godzin w temperaturze 25°C
