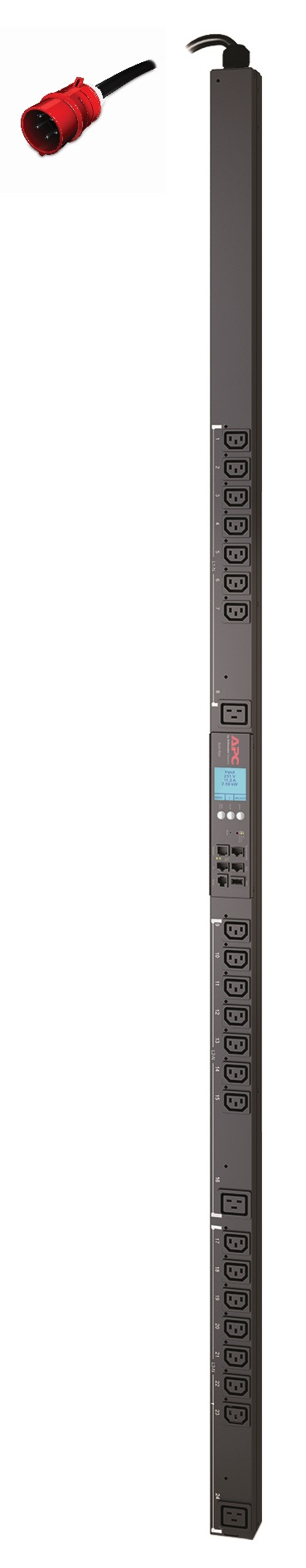

APC AP8681 power distribution unit (PDU) 24 AC outlet(s) 0U Black

	Склад	Доставка	Наличие	Цена
	PL	8 - 15 дня	3	€3277,37 с налогом

Description	APC RACK PDU 2G, METERED BY OUTLET WITH SWITCHING, ZEROU, 11.0KW, 230V, (21) C13 & (3) C19
CountryofOrigin	CHINA
TariffHeading	84719000
PictureLocation	https://www2.f9baltic.com/productimages/big/AP8681.jpg
ThumbnailPictureLocation	//www2.f9baltic.com/productimages/thumb/AP8681.jpg
Weight	11.000000
Height	120.000000
Length	170.000000
Width	2050.000000
BoxSize	0
PalletSize	0
Operating temperature range (T-T), �C	-5 - 45
Operating relative humidity range, %	5 - 95
Input frequency, Hz	50/60
Nominal output voltage, V	230
Nominal input voltage, V	400V 3PH
Output interface	(21) IEC 320 C13, (3) IEC 320 C19
Input current, A	16
Weight, kg	8.23
Width, mm	56
Depth, mm	51
Height, mm	1829
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL Listed, VDE
Input connection	IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
Cable length, m	1.83
Description
Description	Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 & (3) C19, IEC309 Cord

PDU types	Metered, Metered-by-outlet, Switched
Rack capacity	0U
Mounting	Vertical
Product colour	Black
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Cable length	1.83 m
Certification	EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Nominal input voltage	400 V
Maximum current	16 A
AC input frequency	50 - 60 Hz
Nominal output voltage	230 V
Load capacity	11040 VA
Maximum input current per phase	16 A
Maximum total current draw per phase	16 A
Maximum power	11040 W
Dimensions (WxDxH)	56 x 51 x 1829 mm
Weight	8.23 kg
Package dimensions (WxDxH)	162 x 117 x 2038 mm
Package weight	10.5 kg
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Sustainability certificates	RoHS
Description
Description	APC AP8681. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Cable length: 1.83 m, Certification: EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, UL, VDE. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 400 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz

Description	APC Rack PDU 2G Metered by Outlet 400Vh
VatType	VAT
Weight	9.820000000
Height	125.000000000
Width	170.000000000
Length	2045.000000000
Description
Description	APC Rack PDU 2G Metered by Outlet with Switching ZeroU 16A 400V
