    Производитель: ARCTIC

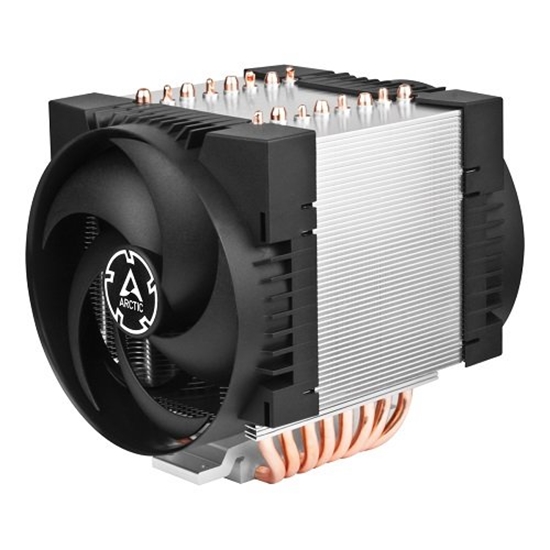

    Arctic Freezer 4U-M Rev. 2 CPU Cooler


    €70,42 с налогом

    Артикул: ST08829079
    Код производителя: ACFRE00133B
    Сайт производителя
    гарантия: 24 месяцы
    *
    Склад Доставка Наличие Цена
    PL
    LV

    Характеристики
    Применение для корпуса 120 mm.
    Применение Термопаста
    Применение для корпуса 30 mm.
    Применение для корпуса 200 mm.
    Применение Для процессора
    Weight1.275
    Gross weight1.3
    Description

    General Specifications

    • Thermal Compound: ARCTIC MX-6 0.8 g Syringe included
    • Dimensions: 124 (L) x 156 (W) x 145 (H) mm
    • Weight: 1275 g
    • Operating Ambient Temperature: 0–40 °C

    Compatibility

    • Intel®: LGA 4189, LGA 4677
    • AMD®: SP6, sTR5, SP3, TR4, sTRX4, sWRX8
    • Ampere: LGA4926 (separate mounting kit required) *
    • Server Rack Unit: 4U & up

    *An Ampere-compatible variant is available.

    Heatsink Specifications

    • Heat Pipe: Direct Touch, Ø 6 mm x 8
    • Number of Fins: 57
    • Fin Material: Aluminium

    Fan Specifications

    • Fan: 2 x 120 mm PWM Fans
    • Fan Speed: 400–2300 rpm, PWM Controlled
    • Connector: 4-Pin Plug
    • Cable Length: 200 mm
    • Bearing: Dual Ball Bearing
    • Noise Level: 40 dBA
    • Air Flow: 71.90 cfm | 122.16 m³/h
    • Static Pressure: 3.30 mmH2O
    • Current | Voltage: 0.12 A | 12 V DC
    • Startup Voltage: 8 V DC

    Vispārējās specifikācijas

    • Termiskā pasta: ARCTIC MX-6 0,8 g šļirce iekļauta
    • Izmēri: 124 (G) x 156 (P) x 145 (A) mm
    • Svars: 1275 g
    • Darbības temperatūras diapazons: 0–40 °C

    Saderība

    • Intel®: LGA 4189, LGA 4677
    • AMD®: SP6, sTR5, SP3, TR4, sTRX4, sWRX8
    • Ampere: LGA4926 (nepieciešams atsevišķs montāžas komplekts) *
    • Serveru plaukta vienība: 4U un augstāka

    *Pieejama versija, kas saderīga ar Ampere.

    Radiatora specifikācijas

    • Siltuma caurule: Direct Touch, Ø 6 mm x 8
    • Finu skaits: 57
    • Fina materiāls: alumīnijs

    Ventilatora specifikācijas

    • Ventilators: 2 x 120 mm PWM ventilatori
    • Ventilatora ātrums: 400–2300 apgr./min, PWM vadība
    • Savienotājs: 4-pinu kontaktligzda
    • Kabeļa garums: 200 mm
    • Gultnis: dubults lodīšu gultnis
    • Troksnis: 40 dBA
    • Gaisa plūsma: 71,90 CFM | 122,16 m³/h
    • Statiskā spiediena: 3,30 mmH2O
    • Strāva | Spriegums: 0,12 A | 12 V DC
    • Palaidšanas spriegums: 8 V DC

    Общие характеристики

    • Термопаста: ARCTIC MX-6 0.8 г шприц в комплекте
    • Размеры: 124 (Д) x 156 (Ш) x 145 (В) мм
    • Вес: 1275 г
    • Рабочая температура окружающей среды: 0–40 °C

    Совместимость

    • Intel®: LGA 4189, LGA 4677
    • AMD®: SP6, sTR5, SP3, TR4, sTRX4, sWRX8
    • Ampere: LGA4926 (необходим отдельный комплект креплений) *
    • Серверные стойки: 4U и выше

    *Доступна версия, совместимая с Ampere.

    Характеристики радиатора

    • Тепловая трубка: Direct Touch, Ø 6 мм x 8
    • Количество ребер: 57
    • Материал ребер: алюминий

    Характеристики вентилятора

    • Вентилятор: 2 x 120 мм PWM вентиляторов
    • Скорость вентилятора: 400–2300 об/мин, управление PWM
    • Разъем: 4-контактный штекер
    • Длина кабеля: 200 мм
    • Подшипник: двойной шариковый подшипник
    • Уровень шума: 40 дБА
    • Поток воздуха: 71.90 CFM | 122.16 м³/ч
    • Статическое давление: 3.30 ммH2O
    • Ток | Напряжение: 0.12 A | 12 V DC
    • Напряжение запуска: 8 V DC
    Description
    Arctic Freezer U-M Rev.2 is a compact, multicompatile server CPU cooler. Compatile with Intel Xeon, AMD Ryzen, AMD Epyc processors. Freezer U-M Rev.2 now is compatile with the latest Altra ARM CPUs from Ampere, LGA926 socket (mounting kit is not included, ut availale for purchase: SKU ACOTH00008A)rFeatures: uVersatile multi-compatile server cooler.u The Freezer U-M Rev.2 stands as a multi-compatile server cooler, oasting an epansive contact surface and an enhanced mounting mechanism. It now offers compatiility with a wide range of Intel and AMD server processors, including Intel's LGA 189 and LGA 677, as well as AMD's SP6, sTR5, SP3, TR, sTRX, and sWRX8 sockets. Remarkaly, despite its impressive cooling capailities, the Freezer U-M Rev.2 consumes a mere 2.88 watts, ensuring eceptional efficiency in cooling even the most powerful processors with up to 96 cores and a TDP of up to 350 watts.uDesigned for continuous operation.u Both fans of the Freezer U-M Rev.2 are equipped with dual all earings, which allows for 27 continuous operation without the slightest compromise in performance. This type of earing is much more resistant to contamination and wear caused y high temperatures than conventional sleeve earings or Fluid-Dynamic earings and is therefore the perfect choice if you want to ensure fault-free continuous operation.uCompact design and dual socket compatiility.u With an optimised installation height of only 15 mm, it fits into oth classic U server racks and most consumer U cases availale on the market. The Freezer U-M Rev.2 features a compact design with dimensions of just 156 12 mm. This also makes it suitale for dual-socket motheroards. To adjust the airflow direction if required, the fans can e easily swapped over.uPremium thermal paste included.u The Freezer U-M Rev.2 comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat uild-up etween the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore asolutely safe to use.rSpecifications: Heat pipe: Direct Touch, 8 6 mm.Radiator material: aluminum.Numer of fins: 57.Thermal paste: MX-6 (0.8g).Fans: 2 120 mm PWM.Fan speed: 00-2300 RPM.Static pressure: 3.30 mm H2O.Air flow: 71.90 cfm 122.16 m³h.Connector: -Pin.Cale length: 200 mm.Bearing: dual all earing.Noise level: 0dBA.Voltagecurrent: 12V DC 0.12A.Startup voltage: 8V DC.Dimensions: 12mm 156mm 15mm.Weight: 1275g.Color: lack light gray.rCompatiility: AMD SP6.AMD SP3.AMD sTR5.AMD TR.AMD sTRX.AMD SWRX8.Intel LGA189.Intel LGA677.Ampere LGA926 (mounting kit is sold separately).Warranty: 6 years.

    Характеристики
    Применение для корпуса 120 mm.
    Применение Термопаста
    Применение для корпуса 30 mm.
    Применение для корпуса 200 mm.
    Применение Для процессора
    Weight1.275
    Gross weight1.3
    Description

    General Specifications

    • Thermal Compound: ARCTIC MX-6 0.8 g Syringe included
    • Dimensions: 124 (L) x 156 (W) x 145 (H) mm
    • Weight: 1275 g
    • Operating Ambient Temperature: 0–40 °C

    Compatibility

    • Intel®: LGA 4189, LGA 4677
    • AMD®: SP6, sTR5, SP3, TR4, sTRX4, sWRX8
    • Ampere: LGA4926 (separate mounting kit required) *
    • Server Rack Unit: 4U & up

    *An Ampere-compatible variant is available.

    Heatsink Specifications

    • Heat Pipe: Direct Touch, Ø 6 mm x 8
    • Number of Fins: 57
    • Fin Material: Aluminium

    Fan Specifications

    • Fan: 2 x 120 mm PWM Fans
    • Fan Speed: 400–2300 rpm, PWM Controlled
    • Connector: 4-Pin Plug
    • Cable Length: 200 mm
    • Bearing: Dual Ball Bearing
    • Noise Level: 40 dBA
    • Air Flow: 71.90 cfm | 122.16 m³/h
    • Static Pressure: 3.30 mmH2O
    • Current | Voltage: 0.12 A | 12 V DC
    • Startup Voltage: 8 V DC

    Vispārējās specifikācijas

    • Termiskā pasta: ARCTIC MX-6 0,8 g šļirce iekļauta
    • Izmēri: 124 (G) x 156 (P) x 145 (A) mm
    • Svars: 1275 g
    • Darbības temperatūras diapazons: 0–40 °C

    Saderība

    • Intel®: LGA 4189, LGA 4677
    • AMD®: SP6, sTR5, SP3, TR4, sTRX4, sWRX8
    • Ampere: LGA4926 (nepieciešams atsevišķs montāžas komplekts) *
    • Serveru plaukta vienība: 4U un augstāka

    *Pieejama versija, kas saderīga ar Ampere.

    Radiatora specifikācijas

    • Siltuma caurule: Direct Touch, Ø 6 mm x 8
    • Finu skaits: 57
    • Fina materiāls: alumīnijs

    Ventilatora specifikācijas

    • Ventilators: 2 x 120 mm PWM ventilatori
    • Ventilatora ātrums: 400–2300 apgr./min, PWM vadība
    • Savienotājs: 4-pinu kontaktligzda
    • Kabeļa garums: 200 mm
    • Gultnis: dubults lodīšu gultnis
    • Troksnis: 40 dBA
    • Gaisa plūsma: 71,90 CFM | 122,16 m³/h
    • Statiskā spiediena: 3,30 mmH2O
    • Strāva | Spriegums: 0,12 A | 12 V DC
    • Palaidšanas spriegums: 8 V DC

    Общие характеристики

    • Термопаста: ARCTIC MX-6 0.8 г шприц в комплекте
    • Размеры: 124 (Д) x 156 (Ш) x 145 (В) мм
    • Вес: 1275 г
    • Рабочая температура окружающей среды: 0–40 °C

    Совместимость

    • Intel®: LGA 4189, LGA 4677
    • AMD®: SP6, sTR5, SP3, TR4, sTRX4, sWRX8
    • Ampere: LGA4926 (необходим отдельный комплект креплений) *
    • Серверные стойки: 4U и выше

    *Доступна версия, совместимая с Ampere.

    Характеристики радиатора

    • Тепловая трубка: Direct Touch, Ø 6 мм x 8
    • Количество ребер: 57
    • Материал ребер: алюминий

    Характеристики вентилятора

    • Вентилятор: 2 x 120 мм PWM вентиляторов
    • Скорость вентилятора: 400–2300 об/мин, управление PWM
    • Разъем: 4-контактный штекер
    • Длина кабеля: 200 мм
    • Подшипник: двойной шариковый подшипник
    • Уровень шума: 40 дБА
    • Поток воздуха: 71.90 CFM | 122.16 м³/ч
    • Статическое давление: 3.30 ммH2O
    • Ток | Напряжение: 0.12 A | 12 V DC
    • Напряжение запуска: 8 V DC
    Description
    Arctic Freezer U-M Rev.2 is a compact, multicompatile server CPU cooler. Compatile with Intel Xeon, AMD Ryzen, AMD Epyc processors. Freezer U-M Rev.2 now is compatile with the latest Altra ARM CPUs from Ampere, LGA926 socket (mounting kit is not included, ut availale for purchase: SKU ACOTH00008A)rFeatures: uVersatile multi-compatile server cooler.u The Freezer U-M Rev.2 stands as a multi-compatile server cooler, oasting an epansive contact surface and an enhanced mounting mechanism. It now offers compatiility with a wide range of Intel and AMD server processors, including Intel's LGA 189 and LGA 677, as well as AMD's SP6, sTR5, SP3, TR, sTRX, and sWRX8 sockets. Remarkaly, despite its impressive cooling capailities, the Freezer U-M Rev.2 consumes a mere 2.88 watts, ensuring eceptional efficiency in cooling even the most powerful processors with up to 96 cores and a TDP of up to 350 watts.uDesigned for continuous operation.u Both fans of the Freezer U-M Rev.2 are equipped with dual all earings, which allows for 27 continuous operation without the slightest compromise in performance. This type of earing is much more resistant to contamination and wear caused y high temperatures than conventional sleeve earings or Fluid-Dynamic earings and is therefore the perfect choice if you want to ensure fault-free continuous operation.uCompact design and dual socket compatiility.u With an optimised installation height of only 15 mm, it fits into oth classic U server racks and most consumer U cases availale on the market. The Freezer U-M Rev.2 features a compact design with dimensions of just 156 12 mm. This also makes it suitale for dual-socket motheroards. To adjust the airflow direction if required, the fans can e easily swapped over.uPremium thermal paste included.u The Freezer U-M Rev.2 comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat uild-up etween the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore asolutely safe to use.rSpecifications: Heat pipe: Direct Touch, 8 6 mm.Radiator material: aluminum.Numer of fins: 57.Thermal paste: MX-6 (0.8g).Fans: 2 120 mm PWM.Fan speed: 00-2300 RPM.Static pressure: 3.30 mm H2O.Air flow: 71.90 cfm 122.16 m³h.Connector: -Pin.Cale length: 200 mm.Bearing: dual all earing.Noise level: 0dBA.Voltagecurrent: 12V DC 0.12A.Startup voltage: 8V DC.Dimensions: 12mm 156mm 15mm.Weight: 1275g.Color: lack light gray.rCompatiility: AMD SP6.AMD SP3.AMD sTR5.AMD TR.AMD sTRX.AMD SWRX8.Intel LGA189.Intel LGA677.Ampere LGA926 (mounting kit is sold separately).Warranty: 6 years.
