    PrevMainboard|ASROCK|AMD A620A|...
    NextMainboard|ASROCK|AMD B550|S...
    Производитель: ASROCK

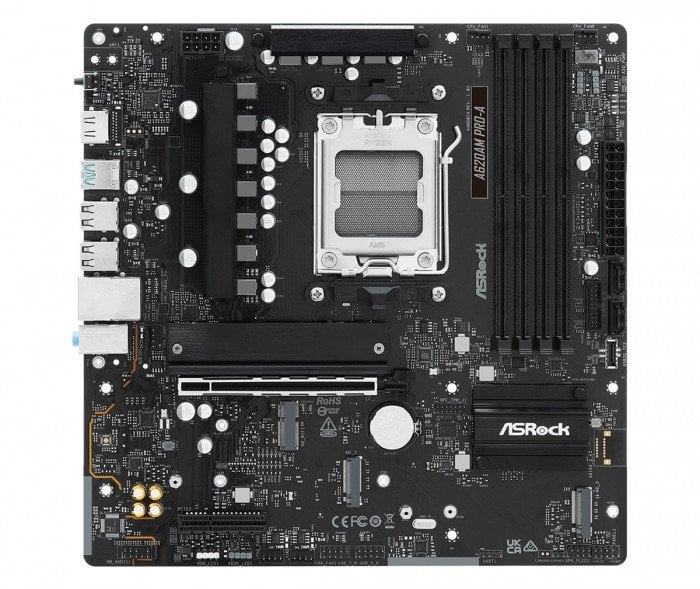

    Mainboard|ASROCK|AMD A620A|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|A620AMPRO-A


    €100,53 с налогом

    Артикул: ST09436237
    Код производителя: A620AM PRO-A
    Сайт производителя
    гарантия: 24 месяцы
    *
    Склад Доставка Наличие Цена
    PL
    LV
    PL
    LV

    Характеристики
    Form Factor mATX
    Видеоинтерфейс HDMI
    Model

    A620AM PRO-A
    CPU socketSocket AM5
    Processor familyAMD Ryzen
    Integrated CPUNo
    Chipset manufacturerAMD
    Chipset type

    AMD A620A
    Memory type DDR5
    Number of DDR5 slots4
    Max memory size 256 (GigaBajt)
    Expansion slots1 x PCIe 4.0 x 16
    Expansion slots1 x M.2
    Expansion slots1 x PCIe 3.0 x 4
    Max. number of SATA devices 2
    Max. number of ATA devices 0
    RAIDYes
    Detailed data on disk/drive interfaces

    CPU:

    • 1 x Hyper M.2 Socket (M2_1, Key M), obsługuje typ 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    • 1 x Hyper M.2 Socket (M2_2, Key M), obsługuje typ 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

    Chipset:

    • 1 x Ultra M.2 Socket (M2_3, Key M), obsługuje typ 2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
    • 2 x SATA3 6.0 Gb/s Connectors
    Graphics
    • Zintegrowana karta graficzna AMD RDNA (Wsparcie może się różnić w zależności od CPU)
    • 1 x HDMI 2.1 TMDS/FRL Kompatybilny z 8G, obsługa HDR, HDCP 2.3 and max. Rozdzielczośćup to 4K 120Hz
    Sound card

    7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    Network interface1 x 10/100/1000/2500 Mbit/s
    USB ports at back panel8
    USB ports on motherboard6
    Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports7
    Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports0
    FireWire (IEEE 1394)No
    COM connector / portNo
    LPT connector / portNo
    External connectors3 x USB 3.0
    External connectors1 x HDMI
    External connectors1 x Line In
    External connectors1 x Line Out
    External connectors1 x MIC
    External connectors1 x RJ-45
    External connectors4 x USB 2.0
    External connectors1 x Flash BIOS Button
    External connectors1 x USB 3.0 Type-C
    Onboard connectors2 x 4pin wentylator CPU
    Onboard connectors1 x TPM header
    Onboard connectors2 x USB 2.0/1.1 header
    Onboard connectors1 x USB 3.0 header
    Onboard connectors1 x 8pin 12V power
    Onboard connectors1 x 24pin ATX zasilanie
    Onboard connectors1 x USB 3.2 Gen 1 Type-C
    BIOS

    256Mb AMI UEFI Legal BIOS ze wsparciem GUI
    Form factormicro ATX
    Dimensions

    24.4 x 24.4 cm
    Accessories included
    • 1 x osłona wejścia/wyjścia
    • 2 x kable danych SATA
    • 4 x śrubki do gniazd M.2
    • 1 x dystans do gniazda M.2
    Supported operating systemsWindows 10
    Supported operating systemsWindows 11
    Software

    Software

    • ASRock Motherboard Utility (A-Tuning)
    • ASRock Dragon 2.5G LAN Software
    • ASRock Polychrome SYNC

    UEFI

    • ASRock Full HD UEFI
    • Automatyczny Instalator Sterowników ASRock
    • ASRock Funkcja Instant Flash
    DesignationCE+WEEE
    Width300
    Height270
    Depth60
    Weight1280
    Description

    Płyta główna A620AM PRO-A

    • Obsługuje procesory AMD Ryzen serii 9000, 8000 i 7000 z gniazdem AM5
    • 6+2+1 fazowy układ zasilania, Dr.MOS
    • 4 moduły pamięci DDR5 DIMM
    • Obsługa Dual Channel, do 8000+ (OC)
    • 1 PCIe 4.0 x16, 1 PCIe 3.0 x4, 1 M.2 Key E dla Wi-Fi
    • Opcje wyjścia graficznego: 1 HDMI
    • Kodek audio Realtek ALC897 7.1 CH HD
    • 2 Hyper M.2 (PCIe Gen4x4)
    • 1 Ultra M.2 (PCIe Gen3x4)
    • 2 SATA3
    • 2 USB 3.2 Gen1 Type-C (1 z tyłu, 1 z przodu)
    • 5 USB 3.2 Gen1 (3 z tyłu, 2 z przodu)
    • 8 USB 2.0 (4 z tyłu, 4 z przodu)
    • Realtek 2.5G LAN
    • Obsługuje BIOS Flashback
    Description
    AMD A620 | micro ATX | Audio 7.1 channels | CPU AMD | Socket Socket AM5 | Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series | Supported memory types DDR5-SDRAM | 4xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,NVMe,SATA III | On-board graphics card Yes | Graphics card AMD RDNA 2 | 3840 x 2160 pixels | 4xUSB 2.0 ports quantity | 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1xEthernet LAN (RJ-45) ports | 1xHDMI ports quantity

    Характеристики
    Form Factor mATX
    Видеоинтерфейс HDMI
    Model

    A620AM PRO-A
    CPU socketSocket AM5
    Processor familyAMD Ryzen
    Integrated CPUNo
    Chipset manufacturerAMD
    Chipset type

    AMD A620A
    Memory type DDR5
    Number of DDR5 slots4
    Max memory size 256 (GigaBajt)
    Expansion slots1 x PCIe 4.0 x 16
    Expansion slots1 x M.2
    Expansion slots1 x PCIe 3.0 x 4
    Max. number of SATA devices 2
    Max. number of ATA devices 0
    RAIDYes
    Detailed data on disk/drive interfaces

    CPU:

    • 1 x Hyper M.2 Socket (M2_1, Key M), obsługuje typ 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    • 1 x Hyper M.2 Socket (M2_2, Key M), obsługuje typ 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

    Chipset:

    • 1 x Ultra M.2 Socket (M2_3, Key M), obsługuje typ 2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
    • 2 x SATA3 6.0 Gb/s Connectors
    Graphics
    • Zintegrowana karta graficzna AMD RDNA (Wsparcie może się różnić w zależności od CPU)
    • 1 x HDMI 2.1 TMDS/FRL Kompatybilny z 8G, obsługa HDR, HDCP 2.3 and max. Rozdzielczośćup to 4K 120Hz
    Sound card

    7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    Network interface1 x 10/100/1000/2500 Mbit/s
    USB ports at back panel8
    USB ports on motherboard6
    Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports7
    Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports0
    FireWire (IEEE 1394)No
    COM connector / portNo
    LPT connector / portNo
    External connectors3 x USB 3.0
    External connectors1 x HDMI
    External connectors1 x Line In
    External connectors1 x Line Out
    External connectors1 x MIC
    External connectors1 x RJ-45
    External connectors4 x USB 2.0
    External connectors1 x Flash BIOS Button
    External connectors1 x USB 3.0 Type-C
    Onboard connectors2 x 4pin wentylator CPU
    Onboard connectors1 x TPM header
    Onboard connectors2 x USB 2.0/1.1 header
    Onboard connectors1 x USB 3.0 header
    Onboard connectors1 x 8pin 12V power
    Onboard connectors1 x 24pin ATX zasilanie
    Onboard connectors1 x USB 3.2 Gen 1 Type-C
    BIOS

    256Mb AMI UEFI Legal BIOS ze wsparciem GUI
    Form factormicro ATX
    Dimensions

    24.4 x 24.4 cm
    Accessories included
    • 1 x osłona wejścia/wyjścia
    • 2 x kable danych SATA
    • 4 x śrubki do gniazd M.2
    • 1 x dystans do gniazda M.2
    Supported operating systemsWindows 10
    Supported operating systemsWindows 11
    Software

    Software

    • ASRock Motherboard Utility (A-Tuning)
    • ASRock Dragon 2.5G LAN Software
    • ASRock Polychrome SYNC

    UEFI

    • ASRock Full HD UEFI
    • Automatyczny Instalator Sterowników ASRock
    • ASRock Funkcja Instant Flash
    DesignationCE+WEEE
    Width300
    Height270
    Depth60
    Weight1280
    Description

    Płyta główna A620AM PRO-A

    • Obsługuje procesory AMD Ryzen serii 9000, 8000 i 7000 z gniazdem AM5
    • 6+2+1 fazowy układ zasilania, Dr.MOS
    • 4 moduły pamięci DDR5 DIMM
    • Obsługa Dual Channel, do 8000+ (OC)
    • 1 PCIe 4.0 x16, 1 PCIe 3.0 x4, 1 M.2 Key E dla Wi-Fi
    • Opcje wyjścia graficznego: 1 HDMI
    • Kodek audio Realtek ALC897 7.1 CH HD
    • 2 Hyper M.2 (PCIe Gen4x4)
    • 1 Ultra M.2 (PCIe Gen3x4)
    • 2 SATA3
    • 2 USB 3.2 Gen1 Type-C (1 z tyłu, 1 z przodu)
    • 5 USB 3.2 Gen1 (3 z tyłu, 2 z przodu)
    • 8 USB 2.0 (4 z tyłu, 4 z przodu)
    • Realtek 2.5G LAN
    • Obsługuje BIOS Flashback
    Description
    AMD A620 | micro ATX | Audio 7.1 channels | CPU AMD | Socket Socket AM5 | Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series | Supported memory types DDR5-SDRAM | 4xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,NVMe,SATA III | On-board graphics card Yes | Graphics card AMD RDNA 2 | 3840 x 2160 pixels | 4xUSB 2.0 ports quantity | 3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1xEthernet LAN (RJ-45) ports | 1xHDMI ports quantity
