Aten CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender, HDBaseT 3.0

	Склад	Доставка	Наличие	Цена
	LV	7 - 12 дня	3	€1210,74 с налогом

manufacturer

ATEN

product group

KVM (IP) extensions

product type

KVM-Extender, HDMI

colour

black

weight

1700

height of packaging (single piece)

180

width of packaging (single piece)

260

depth of packaging (single piece)

560

package weight (single piece)

3.852

gross weight

3.642

scope of delivery

1x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Local Unit), 1x CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender (Remote Unit), 1x HDMI cable, 1x microphone cable, 1x speaker cable, 1x USB Type-A to USB Type-B cable, 2x mounting kits, 8x foot pads, 2x power adapters and power cords, 1x user instructions

height

28.8

width

178.2

depth

156

operating temperature max.

40

interface

HDMI

audio

Stereo Audio

max. resolution (nominal)

True 4K HDMI

colour (design profile)

black

mains connection

Appliance Europlug, Type-C

max. distance

100

garums

100

Description

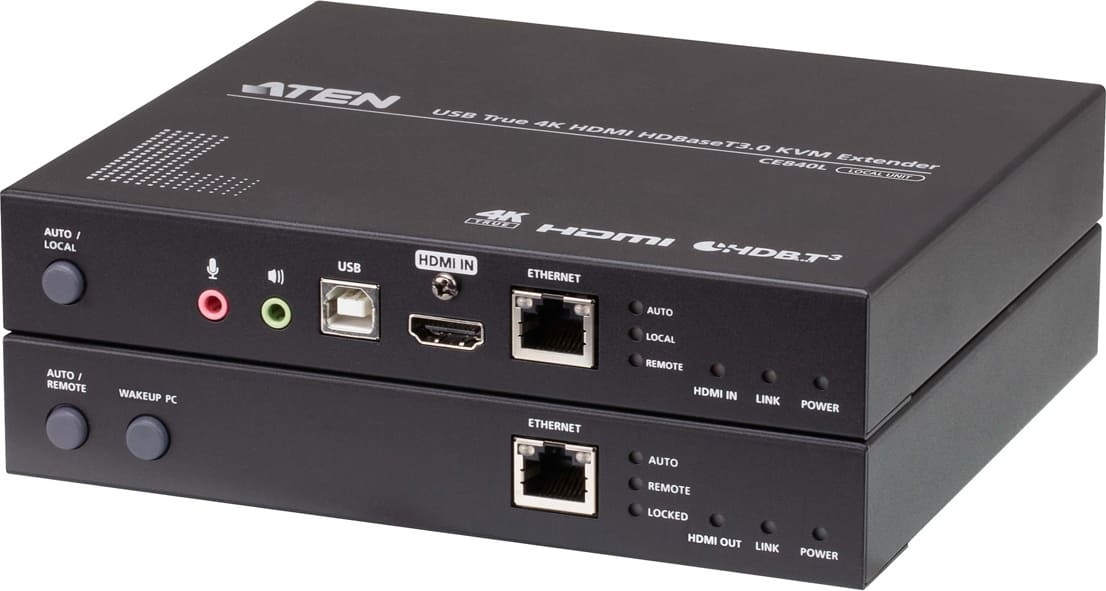

USB True 4K HDMI HDBaseT 3.0 KVM Extender (4K@100m)

Adopting the latest HDBaseT 3.0 technology, CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender consists of a local unit and a remote unit, enabling uncompressed True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across 100m over a single Cat 6A cable (ATEN 2L-29330 Cat 6A Cable recommended) or above. Installation is made easy, neat, and cost-efficient with no compromises on high quality distribution of AV content. The CE840 allows for dual console operation via the two USB ports for USB keyboard and mouse connection and the pushbuttons for switching USB control console between the remote and local end. LEDs on the front panel help indicate which USB control mode that is currently on. Moreover, each unit contains an HDMI output port for local control and the other two USB 2.0 ports for USB peripheral connection. Consequently, operators can acquire data and manage equipment in one location, even from a distance.

Superior video quality – supports HDR10+ and video resolutions up to True 4K over 100 m
HDBaseT™ long reach mode up to 1080P over 150 m
Long reach mode switch – switches between HDBaseT™ Standard and long reach modes in a snap
Dual console operation – control the system via the USB keyboard, mouse and HDMI monitor consoles installed on both the local and remote ends
Active console selectable via the pushbutton on the remote unit and local unit - enables USB-based signal control from either the remote or local end, with LEDs indicating the USB control mode
Flexible 4 x USB 2.0 extension – each of the remote unit and the local unit contains 2 ports for USB keyboard and mouse connection and 2 ports for other USB peripheral connection
Supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
HDCP2.3 and 2.2 compliant
Supports widescreen formats
Built-in 8KV/15KV ESD protection
Firmware upgradable
No software or driver installation required
Rack-mountable
