Производитель: ATEN

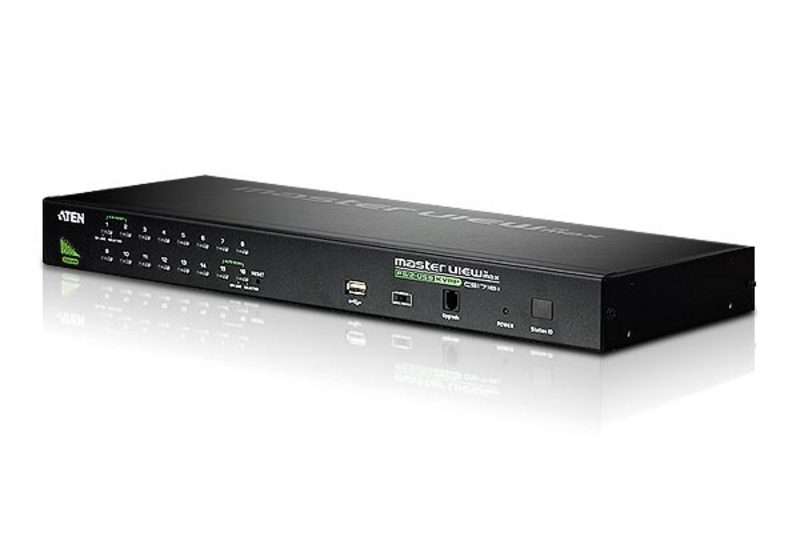

ATEN CS1716A KVM switch Rack mounting Black

€490,95 с налогом

Артикул: ST06315005

Код производителя: CS1716A

Сайт производителя

гарантия: 24 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	PL	8 - 15 дня	3	€490,95 с налогом

Количество:

Specifications

Характеристики

Details 1
Details 2

Number of computers controlled	512
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
Console ports	USB A, VGA (D-Sub)
VGA (D-Sub) ports quantity	17
Console USB ports quantity	1
DC-in jack	Yes
Maximum resolution	2048 x 1536 pixels
Scan interval	1,255 s
DDC2B support	No
Hot-Plug support	Yes
Daisy chain	Yes
Firmware upgradeable	Yes
Rack mounting	Yes
Product colour	Black
Rack capacity	1U
Housing material	Metal
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Built-in display	No
On Screen Display (OSD)	Yes
Power source	DC
DC input voltage	5.3 V
Power consumption (typical)	6.6 W
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	Yes
Sustainability certificates	RoHS
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	437.2 mm
Depth	159.9 mm
Height	44 mm
Weight	2.85 kg
Cables included	KVM
Quick installation guide	Yes
AC adapter included	Yes
Rack mount kit	Yes
Harmonized System (HS) code	85176200
Description
Description	ATEN CS1716A. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, DC input voltage: 5.3 V, Power consumption (typical): 6.6 W. Sustainability certificates: RoHS

manufacturer

ATEN

product group

KVM-Switches / PC-Shares

product type

KVM-Switch, VGA

colour

black

weight

2.66 kg

height of packaging (single piece)

240 mm

width of packaging (single piece)

550 mm

depth of packaging (single piece)

110 mm

package weight (single piece)

3.951 kg

gross weight

3.951

current catalog edition

24.1

current catalog page

3.12

technical particularity

USB - Peripherie Port

scope of delivery

1x KVM-Switch mit Standard Rack-Montagekit, 1x 2L-5202P P...

height

44 mm

width

430 mm

depth

160 mm

dimensions (hxwxd)

44 x430x160 mm

material (casing)

Metall

quantity of pcs

16

supported pc-systems

PS/2 und USB

print button on device

ja

switching over hot keys

Tastatur

integrated hub

nein

19" compatible

ja, optional

cascadable

ja

hot plug compatible

nein

max. resolution (nominal)

2048x1536

power supply unit required

ja

power supply output

5V DC / 1A

analogue console: monitor connection

1x HD 15pol. BU

analogue console: mouse/keyboard connection

2x USB Txp A

pc: connection on moulded cables

nein

quantity of analogue consoles

1

integrated console

nein

switching over scan run

ja

switching over osd

ja

audio switching

Lautsprecher und Mikrofon

audio switching separately

nein

keyboard/mouse emulation

ja

mains connection

Gerät-Eurostecker, Typ-C

pc: combi connection

16x SPHD 15pol. BU
