PrevLindy 20m Standard HDMI Cab...

NextLindy 20m, DisplayPort - Di...

Производитель: LINDY

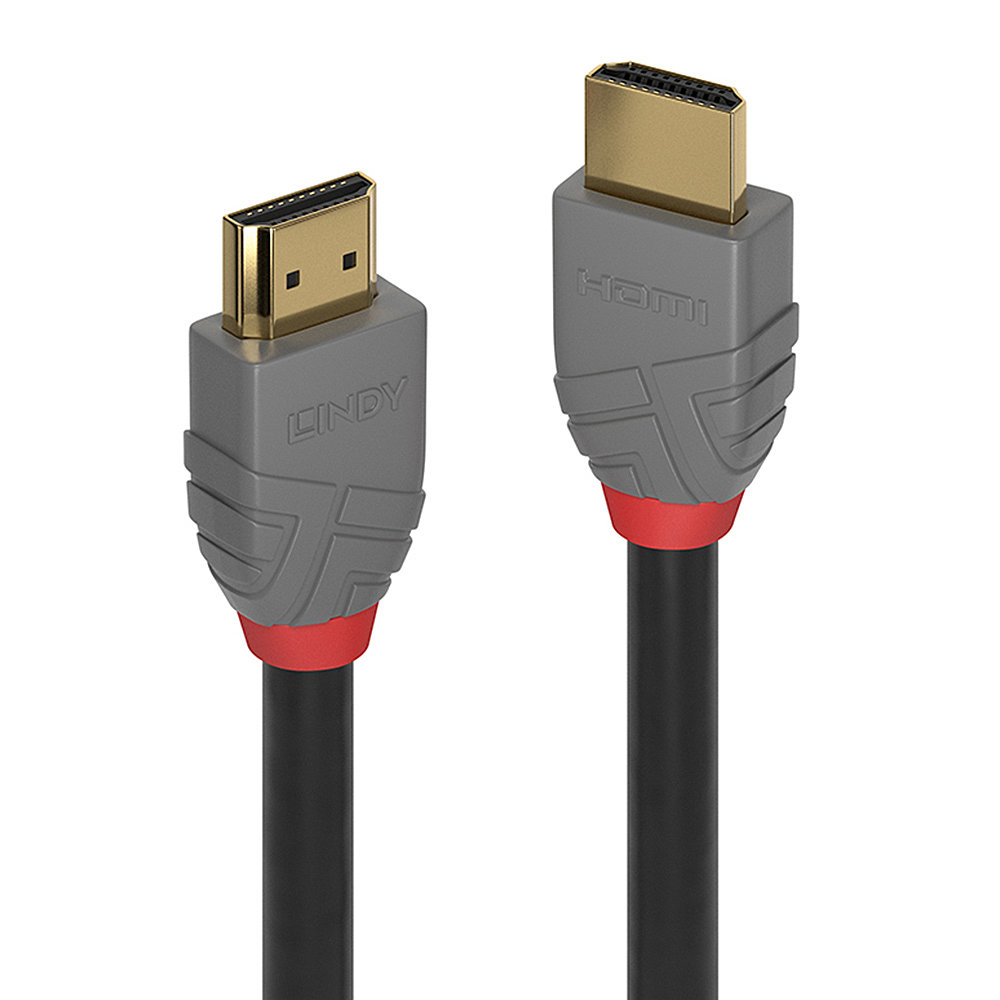

Lindy 20m Standard HDMI Cablel, Anthra Line

€117,95 с налогом

Артикул: ST05565272

Код производителя: 36969

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
PL	8 - 15 дня	4	€117,95 с налогом
LV	7 - 12 дня	119	€136,66 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3
Details 4

цвет	Черный
Свойства	HDMI
цвет	Серый
цвет	Золотой
Длина кабеля (м.)	7.5 m

Cable length	20 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black, Grey
Connector contacts plating	Gold
Quantity per pack	1 pc(s)
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDMI version	2.0
3D	Yes
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Supported video modes	2160p
Dolby technologies	DTS-HD Master Audio, Dolby TrueHD
Audio Return Channel (ARC)	Yes
HDMI Ethernet channel	Yes
Data transfer rate	10.2 Gbit/s
Maximum refresh rate	60 Hz
AWG wire size	24
Contact material	Phosphor bronze
Connector housing material	Polyvinyl chloride (PVC)
Cable material	Copper
Cable type	Round cable
Cable jacket material	Polyvinyl chloride (PVC)
Shield material	Aluminium
Bending radius (min)	9.8 cm
Colour sampling	4:2:0
Nominal attenuation	300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB
Certification	RoHS, REACH, UL
Operating temperature (T-T)	-20 - 80 °C
Storage temperature (T-T)	-25 - 85 °C
Cable diameter	9.8 mm
Connector 1 dimensions (WxDxH)	21.4 x 41.44 x 12.7 mm
Connector 2 dimensions (WxDxH)	21.4 x 41.44 x 12.7 mm
Package type	Polybag
Sustainability certificates	RoHS
Harmonized System (HS) code	84733080
Description
Description	Lindy 20m Standard HDMI Cablel, Anthra Line. Cable length: 20 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, 3D, Data transfer rate: 10.2 Gbit/s, Audio Return Channel (ARC), Product colour: Black, Grey

Description
	20 m \| HDMI Type A (Standard) \| Male \| HDMI Type A (Standard) \| Male \| Product colour Black/Grey \| HDMI version 2.0 \| Audio Return Channel (ARC) Yes \| HDMI Ethernet channel Yes \| Connector contacts plating Gold \| Cable material Copper

gross weight

2.17

data transfer rate

10.2 Gbit/s

cable length

20 m

cable material

Copper

cable type

Round cable

country of origin

product colour

Black, Grey

operating temperature (t-t)

-20 - 80 °C

storage temperature (t-t)

-25 - 85 °C

certification

RoHS, REACH, UL

connector 1

HDMI Type A (Standard)

connector 2

HDMI Type A (Standard)

connector 1 gender

Male

connector 2 gender

Male

harmonized system (hs) code

84733080

quantity per pack

1 pc(s)

package type

Polybag

connector contacts plating

Gold

compliance certificates

RoHS

awg wire size

connector 1 form factor

Straight

connector 2 form factor

Straight

cable jacket material

Polyvinyl chloride (PVC)

maximum refresh rate

60 Hz

Yes

supported graphics resolutions

3840 x 2160, 4096 x 2160

audio return channel (arc)

Yes

hdmi ethernet channel

Yes

supported video modes

2160p

cable diameter

9.8 mm

hdmi version

2.0

dolby technologies

DTS-HD Master Audio, Dolby TrueHD

connector housing material

Polyvinyl chloride (PVC)

connector 1 dimensions (wxdxh)

21.4 x 41.44 x 12.7 mm

connector 2 dimensions (wxdxh)

21.4 x 41.44 x 12.7 mm

nominal attenuation

300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB

contact material

Phosphor bronze

shield material

Aluminium

bending radius (min)

9.8 cm

colour sampling

4:2:0

net weight

0.86

packaging height

38.50

packaging lenght

37.40

packaging width

6.50

warranty

ce doc

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/9f/05/af/67/67af059f7f31e77f9304f885/CE_36966-69.pdf

variation of

36960

ce docs

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/9f/05/af/67/67af059f7f31e77f9304f885/CE_36966-69.pdf,https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/71/55/97/62/62975571a7fecca6d5a65f69/CE_DoC_DE_36966_36969.pdf

Description

Connectors

Connector A: HDMI® Type A Male
Connector B: HDMI® Type A Male
Housing Material: PVC
Connector Plating: Gold
Pin Construction: Phosphor Bronze
Pin Plating: Gold
Dimensions (approx.) WxDxH: 2x44x12.7mm (0.84x1.63x0.5in)

Cable Construction

Length: 20m (65.62ft)
Standard: HDMI® Standard
Colour: Black
Type: Round
Jacket Diameter: 9.8mm (0.39in)
Jacket Material: PVC
Conductor Material: Bare Copper
Conductor Gauge: 24AWG
Shielding: Aluminium Magnesium Alloy 55%

Specifications

Supported Bandwidth: 10.2Gbps
Maximum Resolution: 4096x2160@60Hz 4:2:0 8bit
Nominal Attenuation:
- 300kHz-825MHz --- 15dB
- 825MHz-2.475GHz --- 15 - 29dB
- 2.475GHz-4.125GHz --- 29 - 44dB
- 4.125GHz-5.1GHz --- 44 - 48dB
Minimum Band Radius: 98mm (3.86in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Product Compliance: RoHS, REACH, UL

Purchasing Information

No.: 36969
EAN: 4002888369695

This product is also available in other lengths

36966 - 7.5m (24.61ft)
36967 - 10m (32.81ft)
36968 - 15m (49.21ft)
36969 - 20m (65.62ft)

CE Doc: CE_DoC_DE_36966_36969.pdf

Характеристики

1
Details 2
Details 3
Details 4

цвет	Черный
Свойства	HDMI
цвет	Серый
цвет	Золотой
Длина кабеля (м.)	7.5 m

Cable length	20 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black, Grey
Connector contacts plating	Gold
Quantity per pack	1 pc(s)
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDMI version	2.0
3D	Yes
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Supported video modes	2160p
Dolby technologies	DTS-HD Master Audio, Dolby TrueHD
Audio Return Channel (ARC)	Yes
HDMI Ethernet channel	Yes
Data transfer rate	10.2 Gbit/s
Maximum refresh rate	60 Hz
AWG wire size	24
Contact material	Phosphor bronze
Connector housing material	Polyvinyl chloride (PVC)
Cable material	Copper
Cable type	Round cable
Cable jacket material	Polyvinyl chloride (PVC)
Shield material	Aluminium
Bending radius (min)	9.8 cm
Colour sampling	4:2:0
Nominal attenuation	300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB
Certification	RoHS, REACH, UL
Operating temperature (T-T)	-20 - 80 °C
Storage temperature (T-T)	-25 - 85 °C
Cable diameter	9.8 mm
Connector 1 dimensions (WxDxH)	21.4 x 41.44 x 12.7 mm
Connector 2 dimensions (WxDxH)	21.4 x 41.44 x 12.7 mm
Package type	Polybag
Sustainability certificates	RoHS
Harmonized System (HS) code	84733080
Description
Description	Lindy 20m Standard HDMI Cablel, Anthra Line. Cable length: 20 m, Connector 1: HDMI Type A (Standard), Connector 1 gender: Male, Connector 2: HDMI Type A (Standard), Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.0, 3D, Data transfer rate: 10.2 Gbit/s, Audio Return Channel (ARC), Product colour: Black, Grey

Description
	20 m \| HDMI Type A (Standard) \| Male \| HDMI Type A (Standard) \| Male \| Product colour Black/Grey \| HDMI version 2.0 \| Audio Return Channel (ARC) Yes \| HDMI Ethernet channel Yes \| Connector contacts plating Gold \| Cable material Copper

gross weight

2.17

data transfer rate

10.2 Gbit/s

cable length

20 m

cable material

Copper

cable type

Round cable

country of origin

product colour

Black, Grey

operating temperature (t-t)

-20 - 80 °C

storage temperature (t-t)

-25 - 85 °C

certification

RoHS, REACH, UL

connector 1

HDMI Type A (Standard)

connector 2

HDMI Type A (Standard)

connector 1 gender

Male

connector 2 gender

Male

harmonized system (hs) code

84733080

quantity per pack

1 pc(s)

package type

Polybag

connector contacts plating

Gold

compliance certificates

RoHS

awg wire size

connector 1 form factor

Straight

connector 2 form factor

Straight

cable jacket material

Polyvinyl chloride (PVC)

maximum refresh rate

60 Hz

Yes

supported graphics resolutions

3840 x 2160, 4096 x 2160

audio return channel (arc)

Yes

hdmi ethernet channel

Yes

supported video modes

2160p

cable diameter

9.8 mm

hdmi version

2.0

dolby technologies

DTS-HD Master Audio, Dolby TrueHD

connector housing material

Polyvinyl chloride (PVC)

connector 1 dimensions (wxdxh)

21.4 x 41.44 x 12.7 mm

connector 2 dimensions (wxdxh)

21.4 x 41.44 x 12.7 mm

nominal attenuation

300kHz-825MHz --- 15dB 825MHz-2.475GHz --- 15 - 29dB 2.475GHz-4.125GHz --- 29 - 44dB 4.125GHz-5.1GHz --- 44 - 48dB

contact material

Phosphor bronze

shield material

Aluminium

bending radius (min)

9.8 cm

colour sampling

4:2:0

net weight

0.86

packaging height

38.50

packaging lenght

37.40

packaging width

6.50

warranty

ce doc

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/9f/05/af/67/67af059f7f31e77f9304f885/CE_36966-69.pdf

variation of

36960

ce docs

Description

Connectors

Connector A: HDMI® Type A Male
Connector B: HDMI® Type A Male
Housing Material: PVC
Connector Plating: Gold
Pin Construction: Phosphor Bronze
Pin Plating: Gold
Dimensions (approx.) WxDxH: 2x44x12.7mm (0.84x1.63x0.5in)

Cable Construction

Length: 20m (65.62ft)
Standard: HDMI® Standard
Colour: Black
Type: Round
Jacket Diameter: 9.8mm (0.39in)
Jacket Material: PVC
Conductor Material: Bare Copper
Conductor Gauge: 24AWG
Shielding: Aluminium Magnesium Alloy 55%

Specifications

Supported Bandwidth: 10.2Gbps
Maximum Resolution: 4096x2160@60Hz 4:2:0 8bit
Nominal Attenuation:
- 300kHz-825MHz --- 15dB
- 825MHz-2.475GHz --- 15 - 29dB
- 2.475GHz-4.125GHz --- 29 - 44dB
- 4.125GHz-5.1GHz --- 44 - 48dB
Minimum Band Radius: 98mm (3.86in)
Operating Temperature: -20°C - 80°C (-4°F - 176°F)
Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 10
Product Compliance: RoHS, REACH, UL

Purchasing Information

No.: 36969
EAN: 4002888369695

This product is also available in other lengths

36966 - 7.5m (24.61ft)
36967 - 10m (32.81ft)
36968 - 15m (49.21ft)
36969 - 20m (65.62ft)

CE Doc: CE_DoC_DE_36966_36969.pdf
