Производитель: LINDY

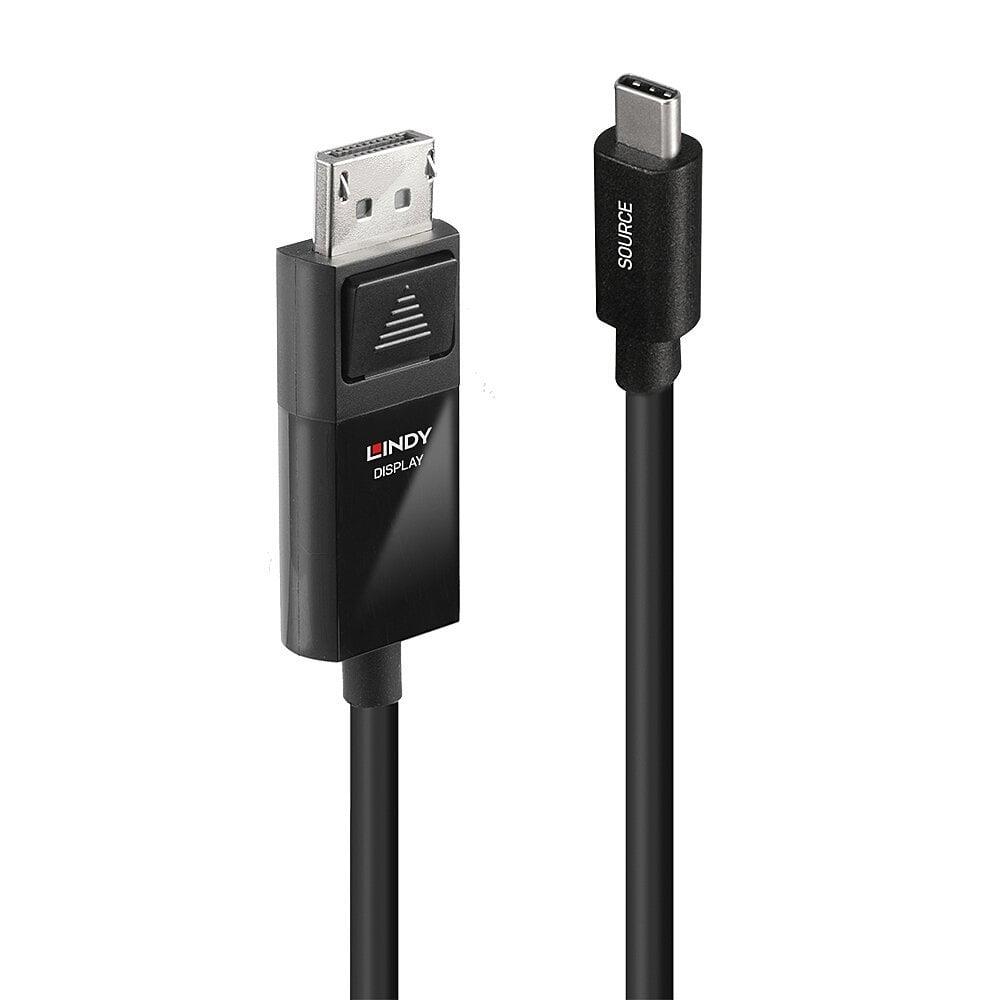

Lindy 1m USB Type C to DP 1.4 Adapter Cable with HDR

€29,12 с налогом

Артикул: ST07067533

Код производителя: 43341

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
PL	8 - 15 дня	17	€29,12 с налогом
LV	7 - 12 дня	252	€33,31 с налогом

Количество:

Specifications

Характеристики

1
Details 2
Details 3
Details 4

Свойства	USB
Длина кабеля (м.)	1 m
Свойства	Display port
Свойства	USB Type-C
цвет	Черный
цвет	Золотой

Cable length	1 m
Connector 1	USB Type-C
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Nickel
Power source	USB
High Dynamic Range (HDR) supported	Yes
Maximum resolution	7680 x 4320 pixels
Data transfer rate	32.4 Gbit/s
Maximum refresh rate	144 Hz
Bend radius (min)	2.55 cm
Cable material	Copper
Product colour	Black
Nominal attenuation	0.1MHz-6MHz
Attenuation (max)	6MHz
Chipset	VL100
Jacket material	Acrylonitrile butadiene styrene (ABS)
Connector housing material	Polyvinyl chloride (PVC)
Contact material	Copper
AWG wire size	34
Operating temperature (T-T)	-20 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Sustainability certificates	CE, REACH, RoHS
Quantity per pack	1 pc(s)
Package type	Polybag
Harmonized System (HS) code	84733080
Description
Description	Lindy 1m USB Type C to DP 1.4 Adapter Cable with HDR. Cable length: 1 m, Connector 1: USB Type-C, Connector 2: DisplayPort. Sustainability certificates: CE, REACH, RoHS. Quantity per pack: 1 pc(s), Package type: Polybag

Description
	USB Type-C \| Straight \| Gender Male \| DisplayPort \| Straight \| Gender Male \| Connector contacts plating Nickel \| Power source USB \| Colour Black \| Operating temperature (T-T) -20 - 40 °C

chipset

VL100

gross weight

0.06

data transfer rate

32.4 Gbit/s

cable length

1 m

cable material

Copper

country of origin

product colour

Black

operating temperature (t-t)

-20 - 40 °C

storage temperature (t-t)

-40 - 80 °C

connector 1

USB Type-C

connector 2

DisplayPort

connector 1 gender

Male

connector 2 gender

Male

harmonized system (hs) code

84733080

quantity per pack

1 pc(s)

package type

Polybag

connector contacts plating

Nickel

compliance certificates

CE, REACH, RoHS

power source

USB

jacket material

Acrylonitrile butadiene styrene (ABS)

awg wire size

connector 1 form factor

Straight

connector 2 form factor

Straight

maximum resolution

7680 x 4320 pixels

maximum refresh rate

144 Hz

bend radius (min)

2.55 cm

connector housing material

Polyvinyl chloride (PVC)

nominal attenuation

0.1MHz-6MHz

contact material

Copper

net weight

0.05

attenuation (max)

6MHz

high dynamic range (hdr) supported

Yes

packaging height

19.40

packaging lenght

17.40

packaging width

1.50

warranty

tech data sheets

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/d5/ce/99/63/6399ced5fb5a6051082e1121/43341_TDS_v1.pdf

variations

43343,43342

ce docs

https://files.plytix.com/api/v1.1/file/public_files/pim/assets/30/18/3c/62/623c1830be3c59cb8b1e1693/texts/6d/55/97/62/6297556da7fecca6d5a65eab/CE_DoC_DE_43341_43343.pdf

Description

Connectors

Connector A: USB Type C Male
Connector B: DisplayPort Male
Housing Material: USB C: ABS shell, DP: ABS shell
Connector Plating: Nickel plating
Pin Construction: Phosphor Copper
Pin Plating: Gold plating
Dimensions (approx.) WxDxH:
- USB: 24.3x12.52x7mm (0.96x0.49x0.28in)
- DP: 47.74x22.2x10mm (1.88x0.87x0.39in)

Cable construction

Length: 1m (3.28ft)
Standard: DP 1.4
Colour: Black
Type: Round
Jacket Diameter: 4.2mm (0.17in)
Jacket Material: PVC
Conductor Material: Tinned Copper
Conductor Gauge: 34AWG
Shielding: Copper Braid 85%

Specifications

Chipset: VL100
Supported Bandwidth: 32.4Gbps
Power Delivery: -
Maximum Resolution: 7680x4320@60Hz and 3840x2160@144Hz
Nominal Attenuation: 0.1MHz-6MHz<12DB
Minimum Bend Radius: 25.5mm (1in)
Operating Temperature: -20°C - 40°C (-4°F - 104°F)
Storage Temperature: -40°C - 80°C (-40°F - 80°F)

Miscellaneous

Packaging Type: Polybag
Warranty (Years): 2
Product Compliance: CE, FCC, RoHS, REACH, California Proposition 65

Purchasing Information

No.: 43341
EAN: 4002888433419

This product is available in different lengths

43341 - 1m (3.28ft)
43342 - 2m (6.56ft)
43343 - 3m (9.84ft)

CE Doc: CE_DoC_DE_43341_43343.pdf
Tech Data Sheets: 43341_TDS_v1.pdf
