    Производитель: DELOCK

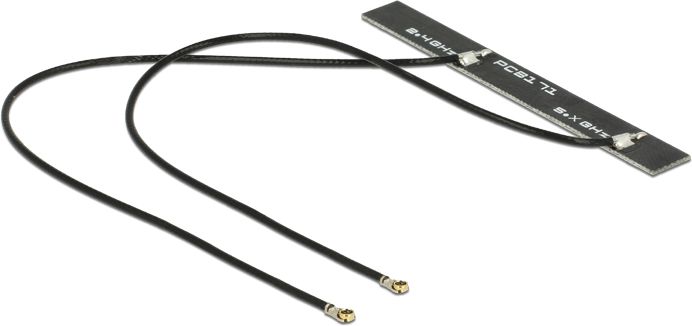

    Delock WLAN Twin Antenna 2 x MHF IV 802.11 ac/a/h/b/g/n 5 dBi 150 mm PCB internal self adhesive


    €22,78 с налогом

    Артикул: ST02822811
    Код производителя: 89454
    Сайт производителя
    гарантия: 24 месяцы
    *
    Склад Доставка Наличие Цена
    LV
    PL

    Характеристики
    Status7 dienas
    Description

    Description
    This WLAN twin antenna is designed to integrate into your devices with MHF IV connectors. These are two separate antennas with common ground.

    Specification
    • Connectors: 2 x miniature RF coaxial connector MHF IV (IPEX)
    • Frequency range:
            2400 ~ 2500 MHz
            5150 ~ 5875 MHz
    • Gain: 5 dBi
    • Impedance: 50 Ohm
    • Cable length: 150 mm
    • Cable diameter: 1.13 mm
    • Cable type: coaxial
    • Operating temperature: -10 °C ~ 50 °C
    • Dimensions (LxWxH): 61.6 x 7.0 x 1.6 mm

    System requirements
    • Device with free MHF IV connector

    Package content
    • Antenna

    Package
    • Poly bag
