Изображение DIGITUS Extender PoE - 5-Port Gigabit Industrial

Производитель: DIGITUS

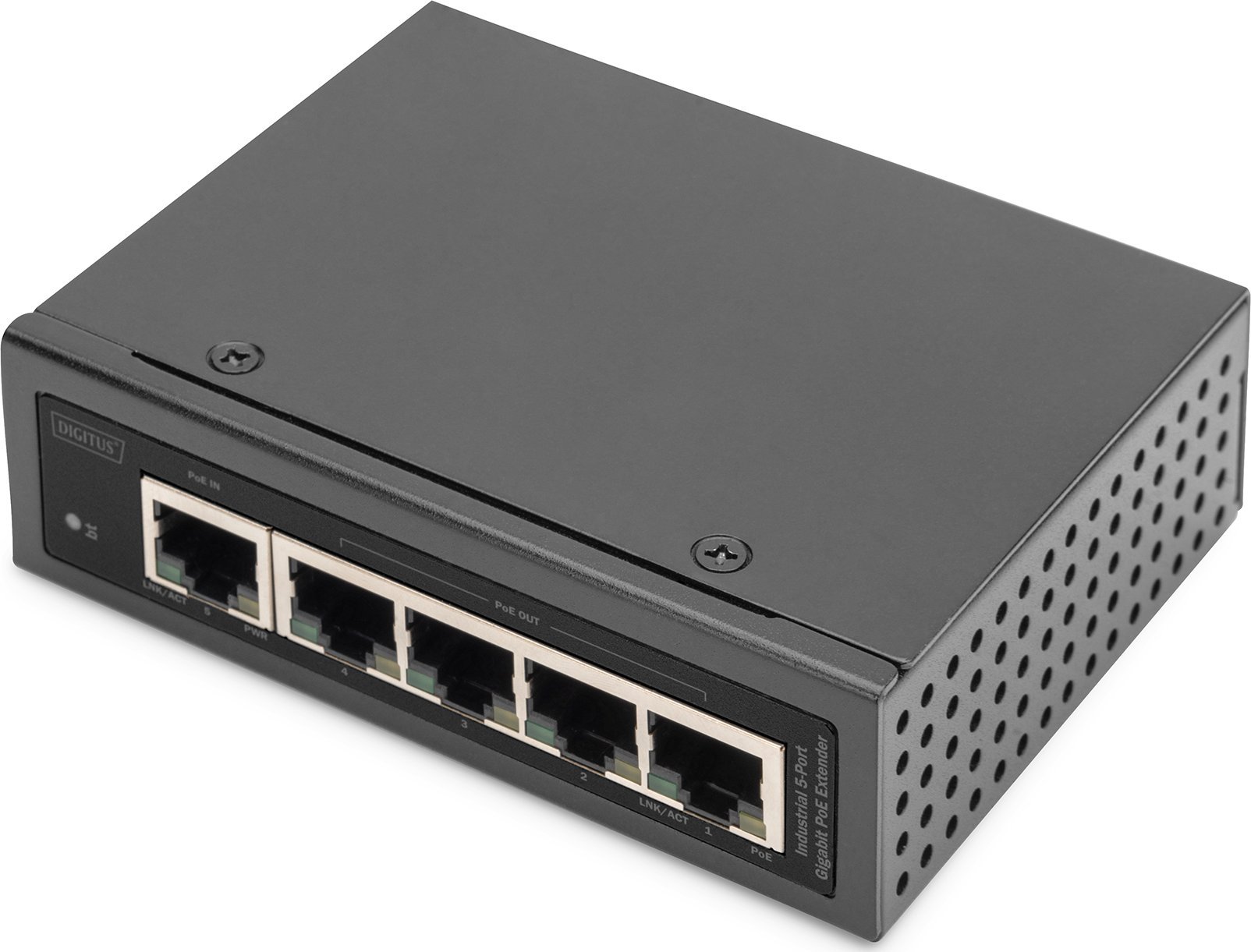

DIGITUS Extender PoE - 5-Port Gigabit Industrial

€217,09 с налогом

Артикул: ST07677744

Код производителя: DN-651143

Сайт производителя

гарантия: 24 месяцы

Stock *

	Склад	Доставка	Наличие	Цена
	LV	7 - 12 дня	3	€217,09 с налогом
	PL	8 - 15 дня	11	€233,15 с налогом

Количество:

Specifications

Характеристики

1
Details 2

Количество портов RJ-45	1
WRL stadarti	802.11b
Количество портов RJ-45	12
Количество портов RJ-45	5
Свойства	RJ-45

Status

10 dienas

Description

Industrial 5-Port Gigabit PoE Extender 1-Port 802.3bt PoE to 4-port 802.3af/at

Industrial 5-Port Gigabit PoE Extender with 1-Port 802.3bt PoE to 4-port 802.3af/at Operating temp.: -40°C to +75°C

5-Port 10/100/1000BASE-T Gigabit RJ45 Interface
Thunder, Lightning resistant
Built-in hardened PoE and PD controller
Can be cascaded up to 4 units or 500meters
Works in extreme environment -40°C to +75°C
Data Processing: Store and Forward
Flow Control: IEEE 802.3x Flow Control and Back Pressure
Jumbo Frame: 9KB

DESCRIPTION

This PoE extender is equipped with 1 PD input to power up 4 Giga PSE output. It can be used as a standalone PD/PSE PoE injector or to extend PoE distance. It can be cascaded up to 4 units or 500 meters to deliver high power for your end device.

TECHNICAL DETAILS

IEEE Standard: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, IEEE 802.3x Flow Control and Back Pressure, IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3bt PoE++
Switch Architecture: Back-plane (Switching Fabric): 10Gbps
Data Processing: Store and Forward
Flow Control: IEEE 802.3x Flow Control and Back Pressure
Jumbo Frame: 9KB
MAC address Table Size: 2K
Packet Buffer Size: 1Mbits
Network Connector: 5 x RJ-45 10/100/1000M auto negotiation, 1 x RJ-45 10/100/1000M with IEEE802.3bt In, 4 x RJ-45 10/100/1000M with IEEE802.3at Out
Auto MDI/MDI-X function, Full/Half duplex
Network Cable: UTP/STP Cat.5e or above Cable, EIA/TIA-568 (100m)
Protocol; CSMA/CD
LED:bt (Green):ON－PoE IEEE 802.3bt is detected, OFF－PoE IEEE 802.3bt is not detected, PWR (Amber):, ON－Power is detected, OFF－Power is not detected, PoE (Amber): ON－PSE is activated and PD is detected
LNK/ACT (Green):ON－TX port is detected, Flashing－TX data is transmitting/receiving
Reserve polarity protection: Present
Overload current protection: Present
Power Consumption: 3.9W without PoE load
PD power input: 30W/60W/90W
PoE Power: Maximum total PSE power output 60W
Operating Temperature: -40°C to 75°C
Operating Humidity: 5% to 95% (Non-condensing)
Storage Temperature: -40°C to 85°C
Housing: Rugged Metal, IP30
Case Dimension (L x W x D): 103.5 x 32 x 81.5 mm
Installation mounting: DIN Rail Mount or Wall Mount
Industrial usage: no
Managed: no
Outdoorsuitable: no
PoE (Power over Ethernet): no
Protection against vanadlism: no
VLAN: no

PACKAGE CONTENT

1x PoE Extender
1 x Mounting Material
1 x Manual

DOWNLOADS AND CERTIFICATES

Certificate

ext. Link
