Производитель: DIGITUS

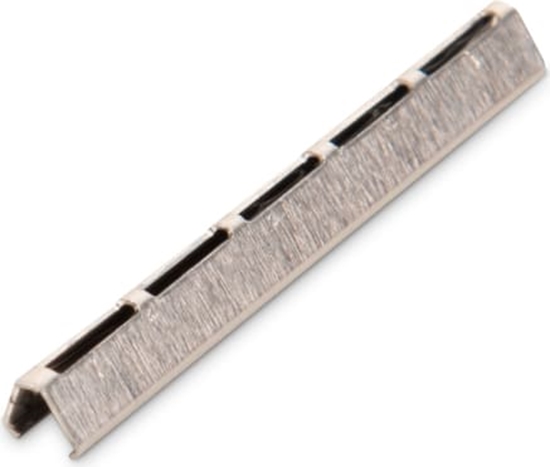

Digitus Fiber optic crimp splice protection, 150-pack, with telecom approval TS0338/96

€105,90 с налогом

Артикул: ST09583869

Код производителя: DN-CSP-150

Сайт производителя

гарантия: 12 месяцы

Stock *

Склад	Доставка	Наличие	Цена
PL	8 - 15 дня	3	€105,90 с налогом
LV	7 - 12 дня	3	€125,02 с налогом

Количество:

Specifications

Характеристики

1
Details 2

Длина кабеля (м.)	1.1 - 1.7 m

height

0.000

width

0.000

depth

0.000

weight(kg)

0.06

country of origin

PL

Description

Fiber Optic Crimp Splice Protection 150 pcs package

Efficient splice protection for optical fibers with crimp technology. Compatible with standard splice cassettes, ideal for compact installations.

Reliable mechanical protection
Compact design for use in splice cassettes
Ideal for quick and safe installation on site
Excellent thermal properties
Solution for a permanently stable and clear installation

The fiber optic crimp splice protector offers a safe way to reliably protect optical fibers after splicing. It is fixed in place purely mechanically by means of a precise crimping process. Thanks to its compact design, the crimp splice protector is perfect for splice cassettes and distributors with limited space. The 900 µm secondary coating of the fiber is held firmly in place, permanently protecting the sensitive splice against tension, vibrations and micromovements. The easy handling makes the crimp splice protector the ideal solution for field installations, e.g. in building cabling, FTTH installations or data centers. They are used to protect fiber splices in 19" distribution panels, floor-standing and wall-mounted enclosures as well as in fiber optic splice closures. Thanks to their excellent climatic and thermal properties, they are suitable for use in both closed and open environments. The protection thus ensures permanent resistance to crushing, pulling and puncturing.

Compliant with TS 0388/96
Fixation: Mechanical clamp fastener
Fastening: Snap-in or insertable in standard splice cassettes
Damping behavior: No additional insertion loss
Dimensions (LxWxH) : 30 mm × 1.2 mm × 3.3 mm
Opening angle of the protector before crimping: ?=52°
Temperature range: -20 °C to +60 °C

Package content:
1 x fiber optic crimp splice protection, 150 pack

Характеристики

1
Details 2

Длина кабеля (м.)	1.1 - 1.7 m

height

0.000

width

0.000

depth

0.000

weight(kg)

0.06

country of origin

PL

Description

Fiber Optic Crimp Splice Protection 150 pcs package

Efficient splice protection for optical fibers with crimp technology. Compatible with standard splice cassettes, ideal for compact installations.

Reliable mechanical protection
Compact design for use in splice cassettes
Ideal for quick and safe installation on site
Excellent thermal properties
Solution for a permanently stable and clear installation

The fiber optic crimp splice protector offers a safe way to reliably protect optical fibers after splicing. It is fixed in place purely mechanically by means of a precise crimping process. Thanks to its compact design, the crimp splice protector is perfect for splice cassettes and distributors with limited space. The 900 µm secondary coating of the fiber is held firmly in place, permanently protecting the sensitive splice against tension, vibrations and micromovements. The easy handling makes the crimp splice protector the ideal solution for field installations, e.g. in building cabling, FTTH installations or data centers. They are used to protect fiber splices in 19" distribution panels, floor-standing and wall-mounted enclosures as well as in fiber optic splice closures. Thanks to their excellent climatic and thermal properties, they are suitable for use in both closed and open environments. The protection thus ensures permanent resistance to crushing, pulling and puncturing.

Compliant with TS 0388/96
Fixation: Mechanical clamp fastener
Fastening: Snap-in or insertable in standard splice cassettes
Damping behavior: No additional insertion loss
Dimensions (LxWxH) : 30 mm × 1.2 mm × 3.3 mm
Opening angle of the protector before crimping: ?=52°
Temperature range: -20 °C to +60 °C

Package content:
1 x fiber optic crimp splice protection, 150 pack
