Digitus Fttx installation kit, pre-assembled, 4-fiber, LC/APC connector, length 30 m

	Склад	Доставка	Наличие	Цена
	LV	7 - 12 дня	380	€55,78 с налогом

height

0.000

width

0.000

depth

0.000

country of origin

CN

Description

Fttx - Installation Kit, SM G657A2, 30 m LSZH CPR B2ca, One end 4F LC/APC,one end empty

The compact FTTH kit with pre-assembled fiber optic installation cable on one side is ideal for installing high-speed fiber optic connections within the home for network level 4.

Short installation time within the residential unit
FTTH drop cables are already assembled with LC/APC connectors on one side
The open end can simply be pulled in or laid up to the house distribution board
Surface mounting of the box for optimized, secure installation of patch cables
Integrated, captive laser protection on the LC APC couplings
Sturdy pulling eye for pulling the cable into conduit systems

The growing demand for extending the fiber optic network into the home requires products that enable simple and efficient installation of this network. The Digitus FTTH installation kit is a solution that makes it easy to extend and complete the fiber optic network in the home. The simplicity of the installation results from the fact that the product is supplied with all the necessary components, thus eliminating the need to search for the components for the installation individually. The junction box can be mounted in the designated location and connection to the router is made easier as the LC/APC connectors are already included. The integrated fiber drop cable can then be pulled to make the connection to the house handover point, which is mounted in the building as the entry point for the fiber network. It provides additional connections and splicing options to meet the requirements for scaling the number of fiber connections.

FTTH junction box :
Suitable for wall and DIN rail mounting
2x LC-APC duplex fiber optic coupler with shutter
The shutter of the clutch protects against lasers and dust
Adapter type : LC/APC Duplex
Number of ports: 4
Number of equipped ports: 2
Integrated splice cassette
Smooth unwinding of the cable
Color : White
Working temperature : -40 - + 65 C
Material: ABS
FTTH drop cable :
4 fibres 9/125µm G.657A2 bend-optimized
Cable diameter : 2.0mm
900µm buffer, easily removable
Aramid strain relief
LSOH outer sheath, color white
Cable structure: I-V(ZN)H
CPR class : B2ca
Operating and storage temperature (°C ) : -15 - +70
Installation Temperature range (°C ) : -10 - +60

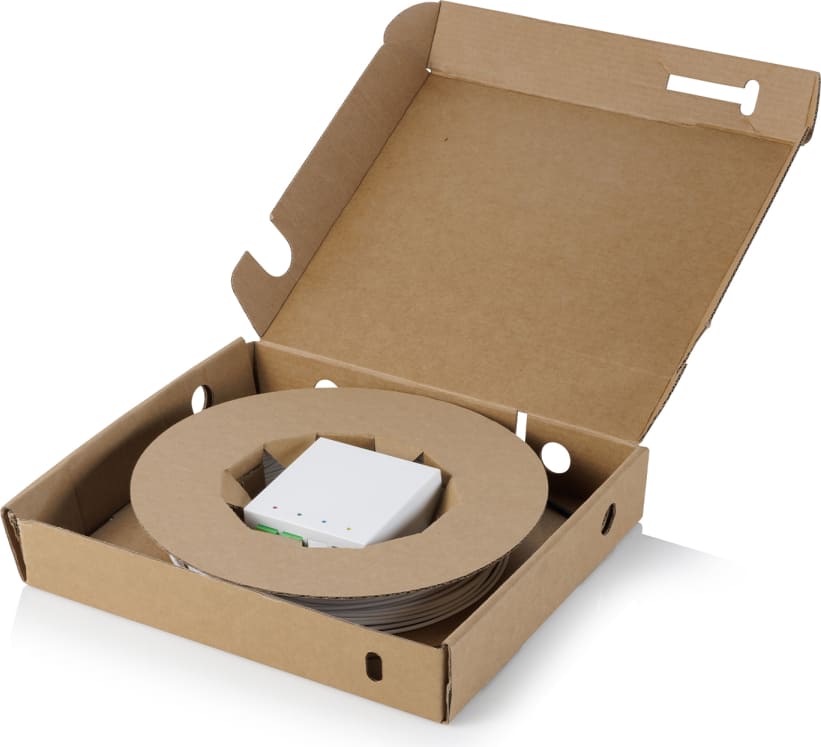

Package content:
Fttx installation kit, pre-assembled, 4-fiber, LC/APC connector, length 30 m
Mounting accessories (screws and dowels)
